Upper Timing Cover (G2344504): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that all traces of the old sealant are removed from the mating surfaces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

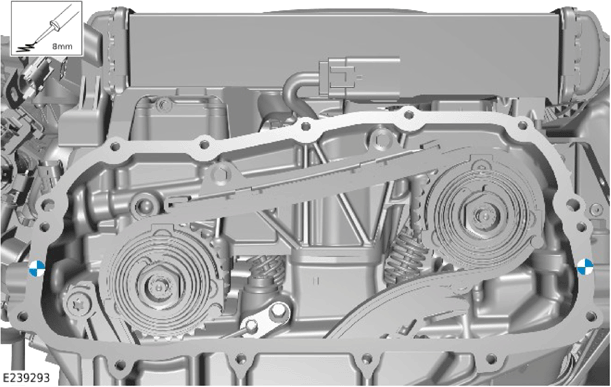

Apply an 8mm bead of RTV sealant to the mating face at the locations shown in the illustration.

Refer to: SPECIFICATIONS

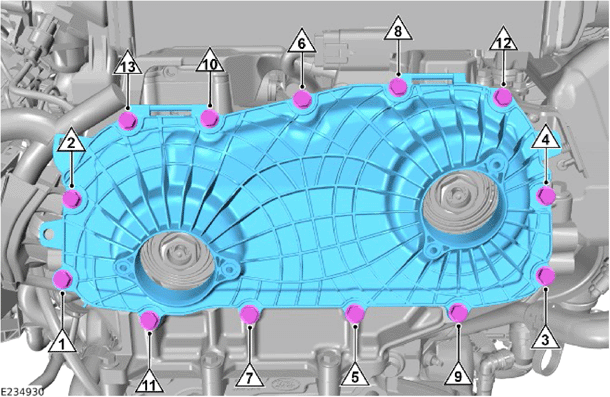

Fig 1: Timing Cover Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new upper timing cover gasket.
  Renew Part: Upper timing chain cover gasket Quantity: 1 .
- Install the upper timing cover.
- Install and tighten the 13 bolts in the sequence illustrated.
  Torque : 13 Nm
Install the 2 VCT solenoids.
Refer to: VARIABLE CAMSHAFT TIMING SOLENOID
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
