Upper Timing Chain (G2344507): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

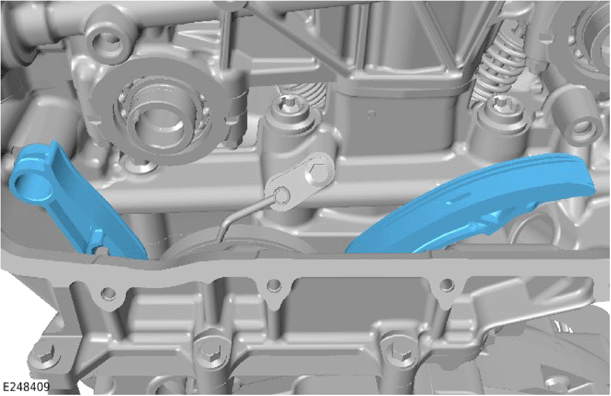

- Install a new upper timing chain left guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
- Install a new upper timing chain right guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
NOTE: Maintain tension on the chain to prevent the timing chain from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

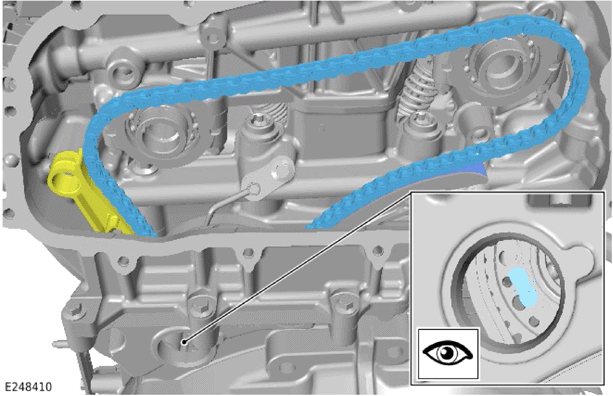

- Install the upper timing chain.
- Make sure the timing mark is aligned with the center of the colored link.
NOTE: Maintain tension on the chain to prevent the timing chain from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Make sure that the component is installed to the previously noted location.

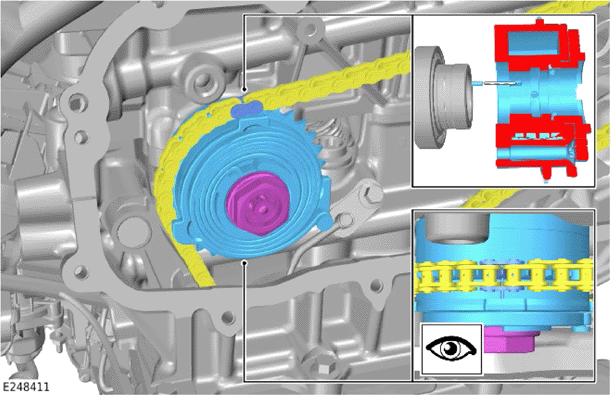

- Install the intake Variable Camshaft Timing (VCT) actuator.
- Make sure that the camshaft locating pin is correctly located into the VCT actuator as illustrated.
- Make sure that the colored link on the timing chain is aligned with the timing mark on the VCT actuator as illustrated.
- Install, but do not fully tighten the bolt.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .
NOTE: Maintain tension on the chain to prevent the timing chain from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Make sure that the component is installed to the previously noted location.

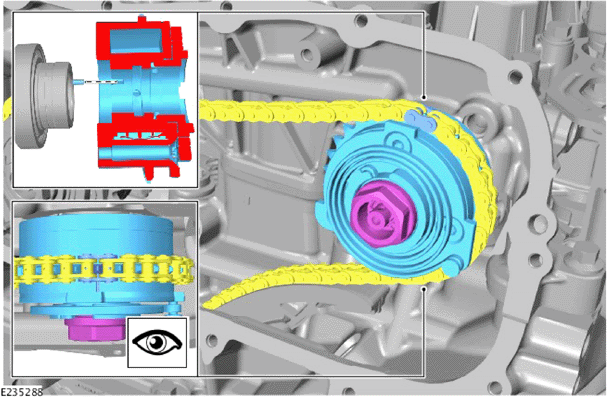

- Install the exhaust VCT actuator.
- Make sure that the camshaft locating pin is correctly located into the VCT actuator as illustrated.
- Make sure that the colored link on the timing chain is aligned with the timing mark on the VCT actuator as illustrated.
- Install, but do not fully tighten the bolt.
  Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the bolt.

Torque : 25 Nm
NOTE: Maintain tension on the chain to prevent the timing chain from disengaging with its sprocket position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

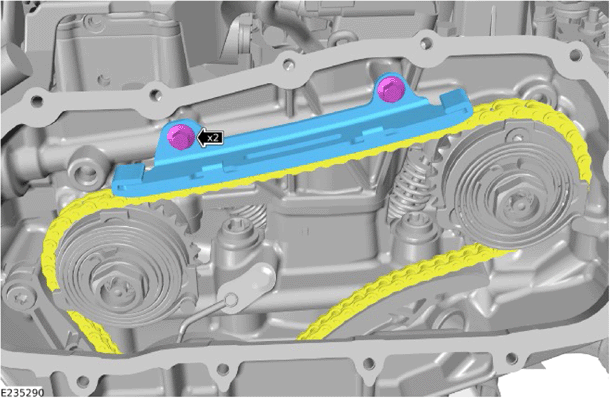

- Install a new upper timing chain upper guide.
  Renew Part: Upper timing chain guide Quantity: 1 .
- Install and tighten the 2 bolts.
  Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

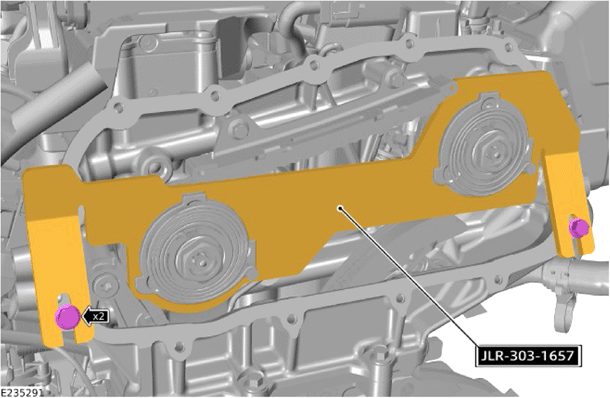

- Install the special tool.
  Special Tool(s): JLR-303-1657
- Install and tighten the 2 bolts.
  Torque : 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

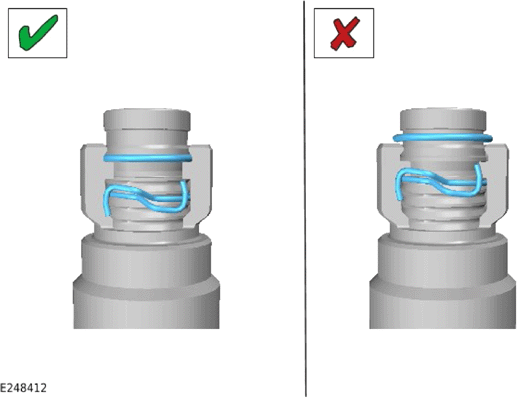

- Inspect the new upper timing chain tensioner, make sure that the 2 clips are in the position as illustrated.
  Renew Part: Upper timing chain tensioner Quantity: 1 .
- If the 2 clips are in the incorrect position, do not install the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

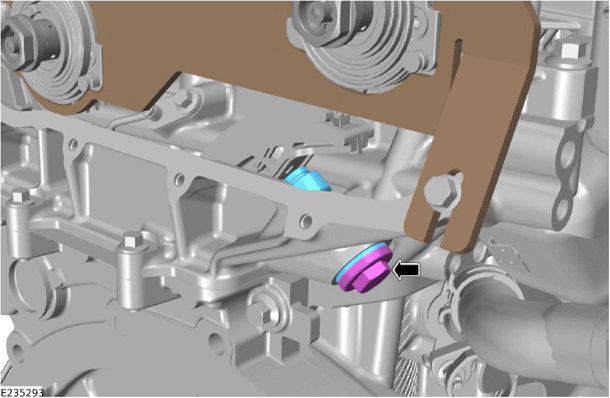

Install and tighten the new upper timing chain tensioner.

Torque : 55 Nm
CAUTION: Do not directly touch the timing chain tensioner at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

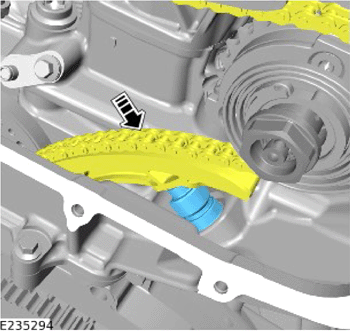

- Push and release the upper timing chain guide to release the upper timing chain tensioner.
- Make sure the upper timing chain tensioner is correctly released.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

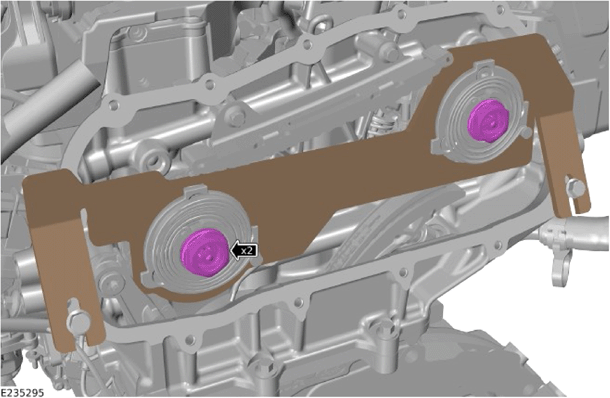

Tighten the 2 bolts.

Torque

Stage 1: 25 Nm

Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

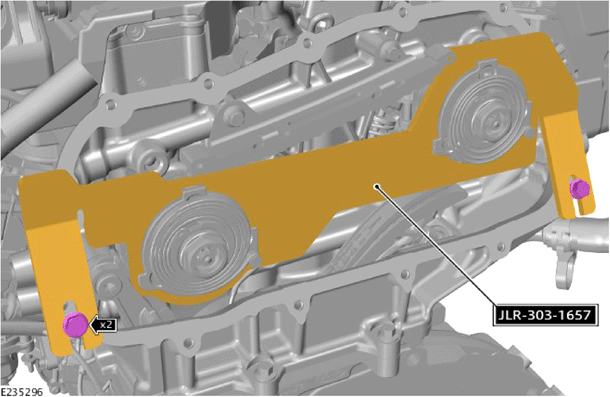

- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1657
Install the access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

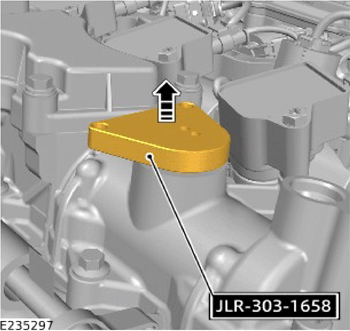

Remove the special tool.

Special Tool(s): JLR-303-1658
- Install a new O-ring seal.
  Renew Part: Oil fill pipe O-ring seal Quantity: 1 .
- Install the oil filler pipe.
- Install and tighten the bolt.
  Torque : 12 Nm
- Install the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

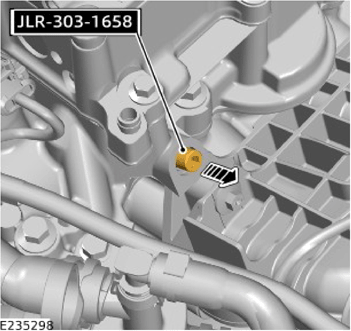

Remove the special tool.

Special Tool(s): JLR-303-1658
Install and tighten the left camshaft carrier inspection plug.
Torque : 10 Nm
Install the upper timing cover.
Refer to: UPPER TIMING COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1659
Install the viscous cooling fan.
Refer to: VISCOUS COOLING FAN
Install the exhaust system.
Refer to: EXHAUST SYSTEM
Reposition the hood in the correct location.
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
