Right Engine Mount (G2344510): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the hood.
Refer to: HOOD
Remove the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 fasteners.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 breather pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tools.
  Install the Special Tool(s): JLR-303-1676
- Install and tighten the 4 bolts.
  Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tools.
  Install the Special Tool(s): JLR-303-1713
- Install and tighten the 4 bolts.
  Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 engine compartment braces as illustrated.
- Install and tighten the 2 bolts.
  Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the engine support beam and the engine support adapter as illustrated.

Install the Special Tool(s): JLR-303-1692 , JLR-303-1692-04
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Remove the front right wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER

The following step(s) applies to:

Right-hand drive vehicles

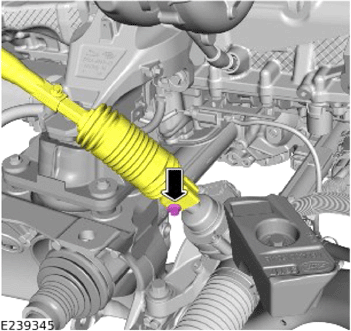

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Reposition the steering column shaft.

The following step(s) applies to:

All vehicles

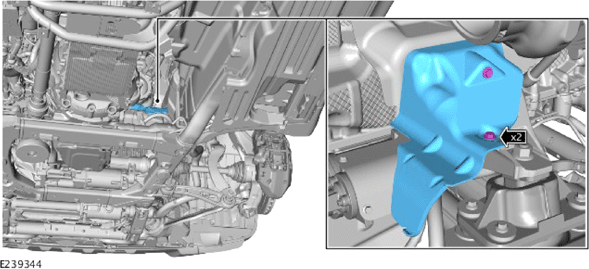

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the engine mount heatshield.

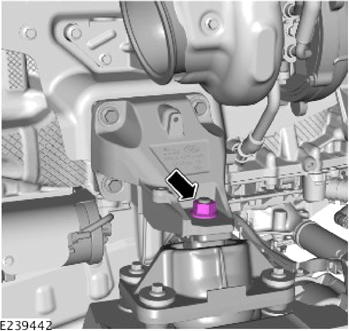

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the engine mount to engine bracket nut.
NOTE: Engine mount bracket shown removed to provide extra clarity.

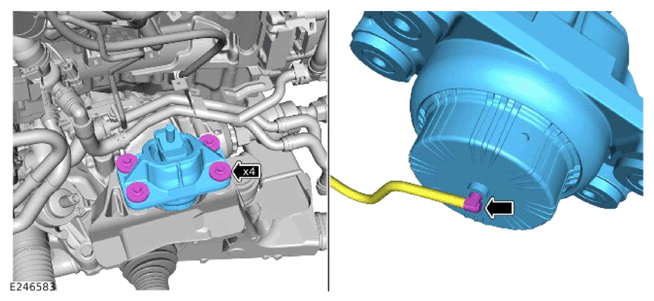

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 engine mount bolts.
- Disconnect the vacuum hose.
CAUTION: Care must be taken to avoid damaging the surrounding components.

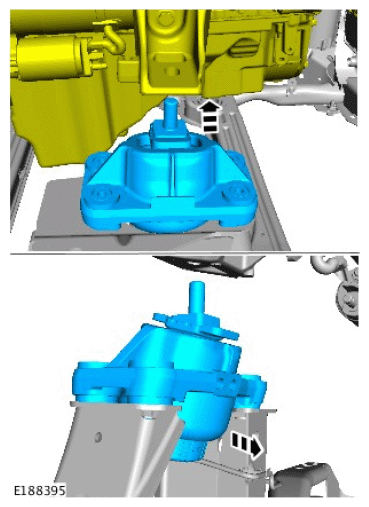

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use the special tool JLR-303-1692 to lift the engine assembly 30 mm.
- Remove the engine mount.
