Oil Pump Drive Chain (G2344503): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Be prepared to collect escaping oil.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  3. Remove the engine front cover.

    Refer to: ENGINE FRONT COVER

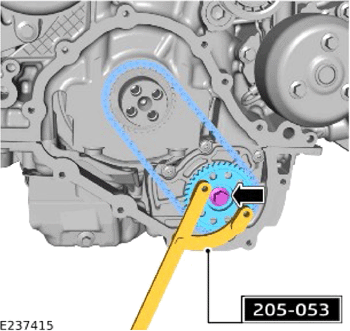

  4. G14056255Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use the special tool to hold the oil pump drive sprocket.

      Special Tool(s): 205-053

    • Remove and discard the bolt.
    • Remove the oil pump drive chain and sprocket.
