Oil Pan Extension (G2417609): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove and discard the engine front cover.
Refer to: ENGINE FRONT COVER
Remove the front subframe.
Refer to: FRONT SUBFRAME
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

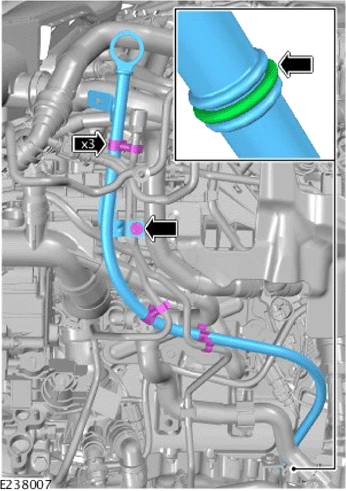

- Remove the bolt.
- Release the 3 clips.
- Remove the oil level gauge pipe.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

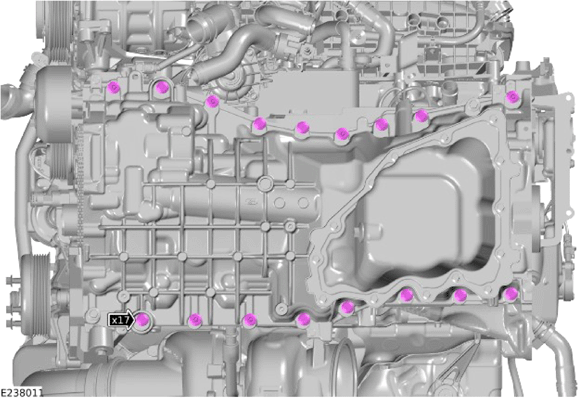

Remove the 17 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

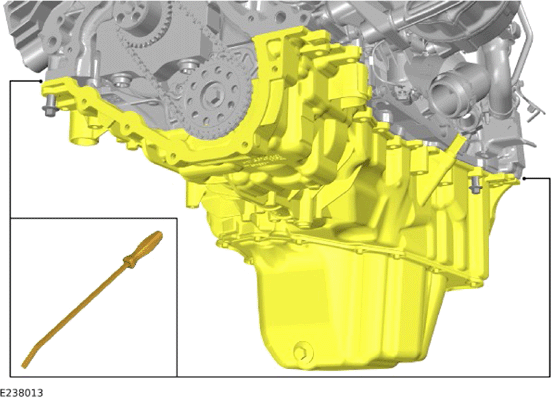

Using a suitable tool, pry the oil pan away from the engine at the indicated points.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the oil pan extension.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

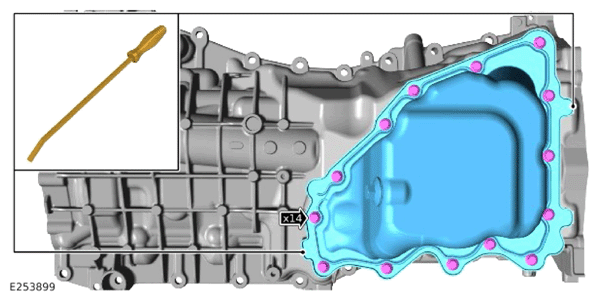

- Remove the 14 bolts.
- Use a suitable tool to release the oil pan.
- Remove and discard the oil pan.
