Oil Cooler (G2344506): Installation

WARNING: This page is about a different variant/trim than selected.

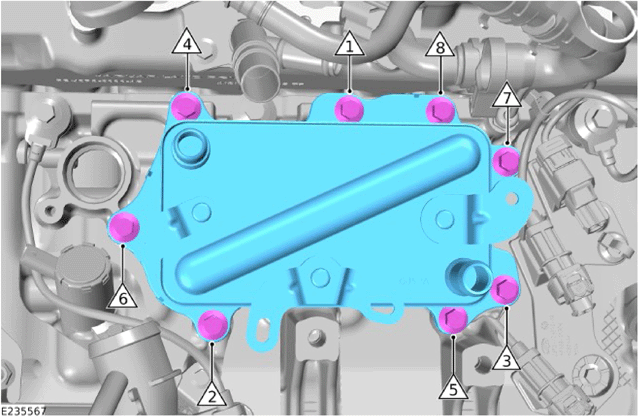

Fig 1: Oil Cooler Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket.
  Renew Part: Oil cooler gasket Quantity: 1 .
- Install the oil cooler.
- Install and tighten the 8 bolts in the sequence illustrated.
  Torque

  Stage 1: 10 Nm

  Stage 2: 25 Nm
- Connect the 2 oil cooler hoses.
- Install the clamp.
Connect the coolant hose.
- Install the hose assembly.
- Install and tighten the bolt.
  Torque : 10 Nm
- Install and tighten the clamp.
  Torque : 3.5 Nm
- Install the clamp.
- Install the wiring harness.
- Install the 4 wiring harness clips.
- Connect the 2 electrical connectors.
Install the 2 clips.
Install the intake manifold.
Refer to: INTAKE MANIFOLD
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
