Lower Timing Cover (G2344505): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the crankshaft rear seal.
Refer to: CRANKSHAFT REAR SEAL
Remove the starter motor.
Refer to: STARTER MOTOR

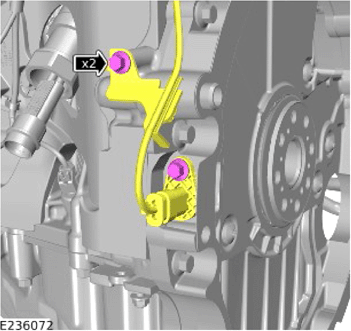

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the Crankshaft Position (CKP) sensor.

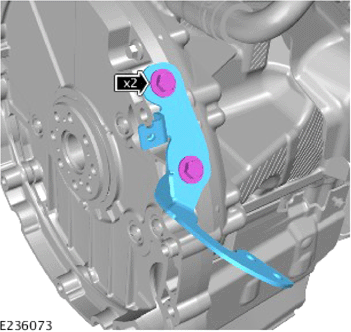

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the bracket.
CAUTION: Take extra care not to damage the surrounding components.

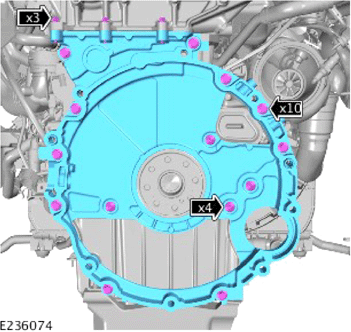

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 17 bolts.
- Remove the lower timing cover.
CAUTION: Take extra care not to damage the surrounding components.

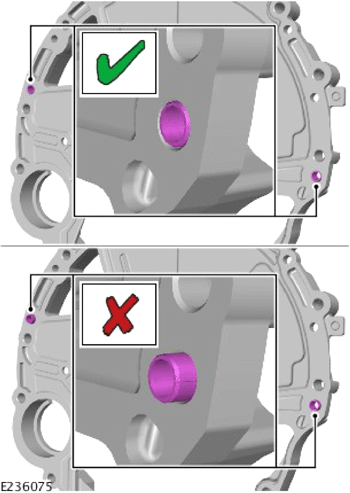

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool, position the dowels as shown in the illustration.
