Lower Timing Cover (G2344505): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

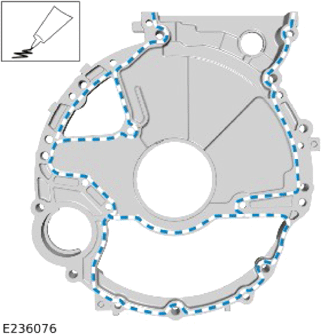

Apply a 3 mm diameter bead of sealant, to the area shown.

Refer to: SPECIFICATIONS
CAUTION: Take care not to damage the cylinder head gasket when installing the lower timing cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

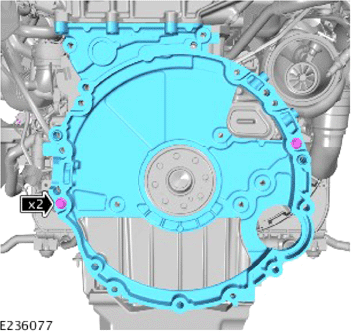

- Make sure the locating dowels are installed correctly.
- Tighten the 2 bolts to allow the dowels to be pushed into the correct position.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

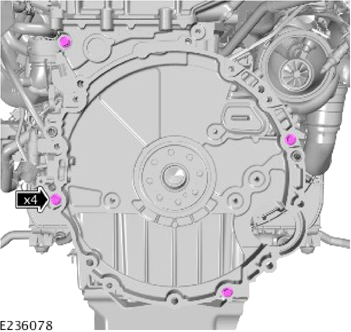

Install 2 more bolts as illustrated and tighten the 4 bolts to the correct torque.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

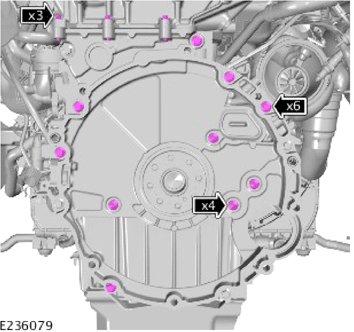

Tighten the remaining 13 bolts to the correct torque.

Torque

M8 x 35 bolts: 25 Nm

M8 x 30 bolts: 25 Nm

M6 x 30 bolts: 12 Nm
- Install the Crankshaft Position (CKP) sensor.
- Install and tighten the 2 bolts.
  Torque : 8 Nm
Install the starter motor.
Refer to: STARTER MOTOR
Install the crankshaft rear seal.
Refer to: CRANKSHAFT REAR SEAL
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
