Special Tool(S)

WARNING: This page is about a different variant/trim than selected.
G14060109Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
 JLR-303-1656
Crank Rotation Tool

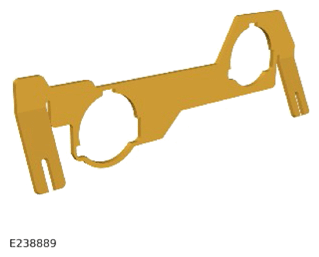

G14507212Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
 JLR-303-1657
Locking Tool, VCT
G14153229Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
 JLR-303-1658
Locking Tool, Camshaft
G14153230Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
 JLR-303-1659
Locking Tool, Crankshaft Pulley
