Lower Timing Chain (G2344508): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Use a suitable telescopic tube to position the hood into the service position.
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Remove the viscous cooling fan.
Refer to: VISCOUS COOLING FAN
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
Remove the lower timing cover.
Refer to: LOWER TIMING COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

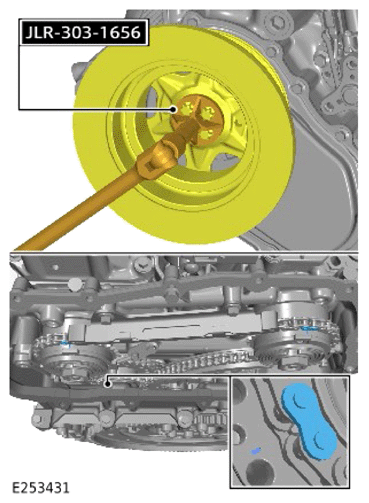

- Install the special tool.
  Special Tool(s): JLR-303-1656

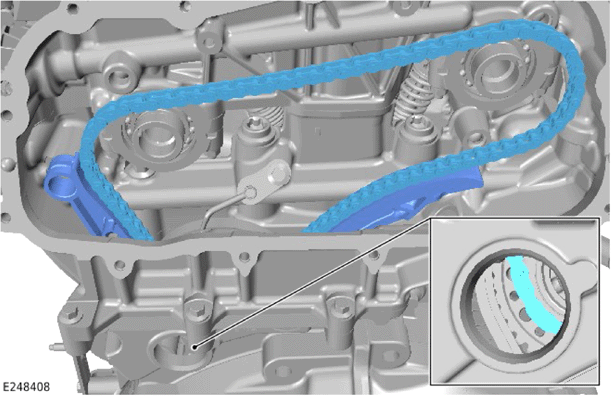

- Use the special tool to rotate the crankshaft clockwise until the timing marks align as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

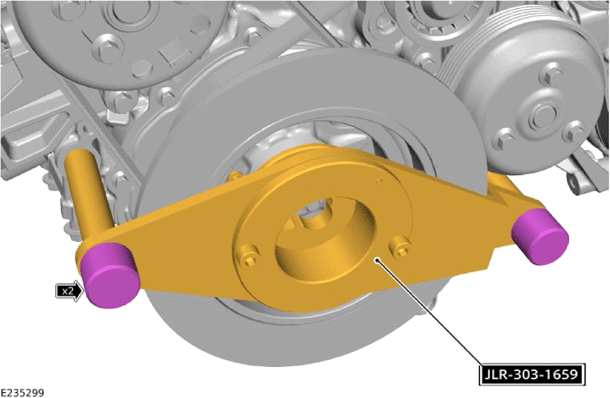

- Install the special tool.
  Special Tool(s): JLR-303-1659
- Install and tighten the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

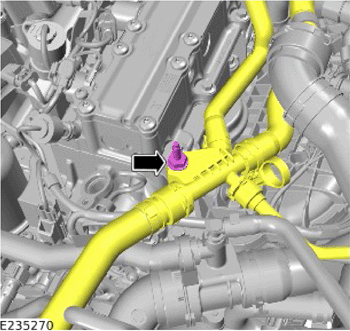

- Remove the bolt.
- Reposition the coolant hoses away from the Continuous Variable Valve Lift (CVVL) assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left camshaft carrier inspection plug.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

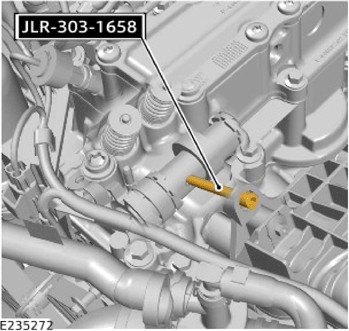

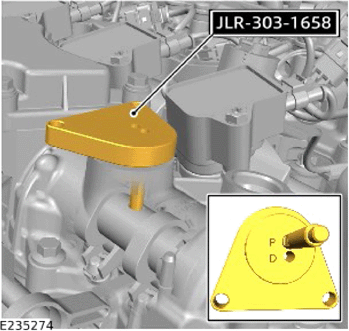

Install the special tool.

Special Tool(s): JLR-303-1658
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the oil filler cap.
- Remove the bolt.
- Remove the oil filler pipe.
- Remove and discard the O-ring seal.
NOTE: Note the illustrated orientation of the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1658
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

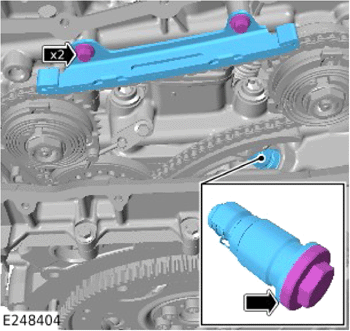

- Remove the 2 bolts.
- Remove and discard the upper timing chain upper guide.
- Loosen, but do not fully remove the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

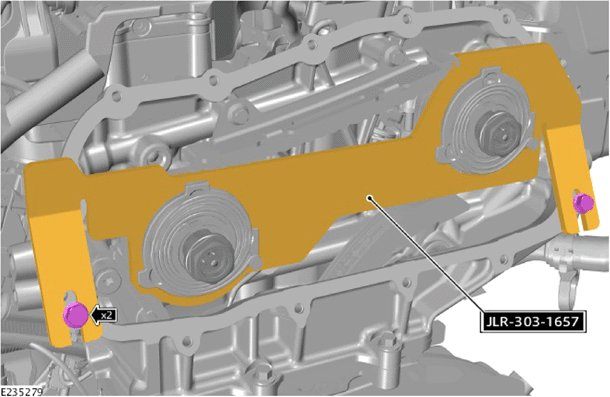

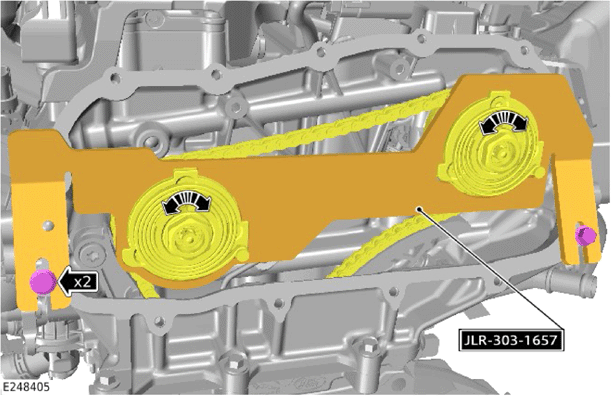

- Install the special tool.
  Special Tool(s): JLR-303-1657
- Install and tighten the 2 bolts.
  Torque : 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

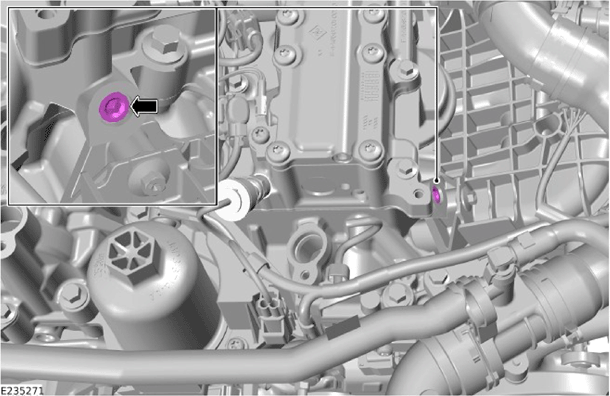

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the 2 Variable Camshaft Timing (VCT) bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1657
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

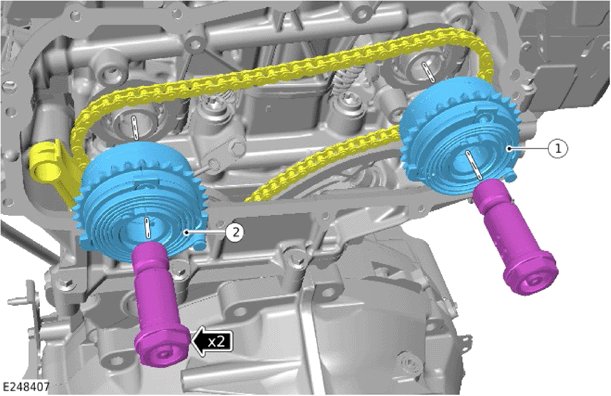

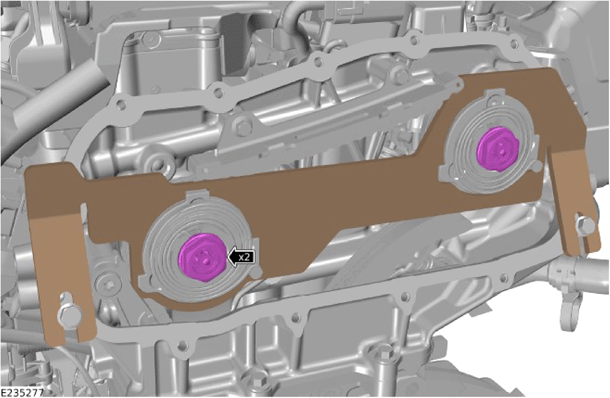

- Note the location of the VCT actuators prior to removal, the VCT actuators are paired to camshafts.
- Remove and discard the 2 bolts.
- Remove the exhaust VCT actuator (1).
- Remove the intake VCT actuator (2).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the upper timing chain.
- Remove and discard the upper timing chain left guide.
- Remove and discard the upper timing chain right guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

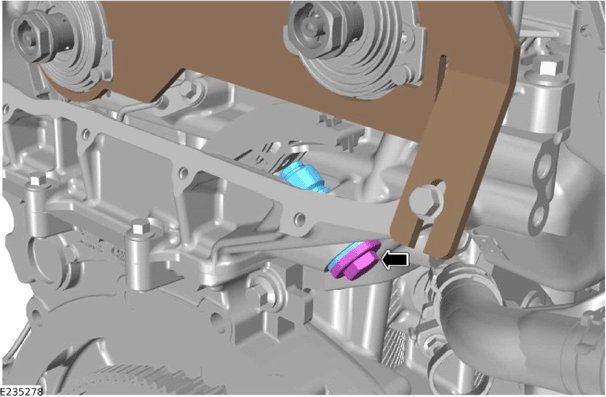

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

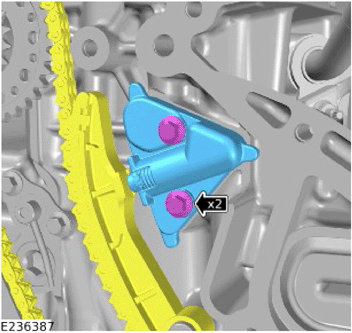

- Remove the 2 bolts.
- Remove and discard the lower timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

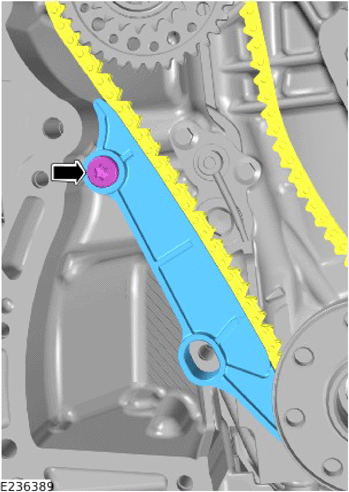

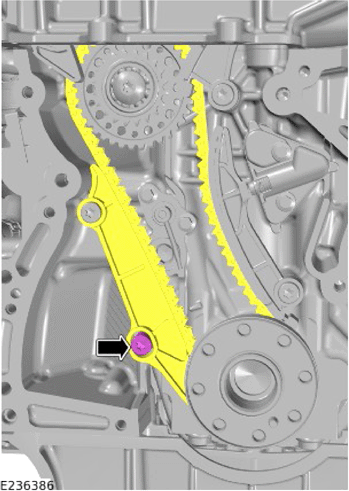

- Remove the bolt.
- Remove and discard the lower timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

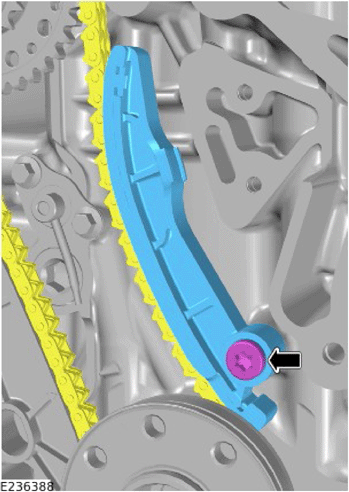

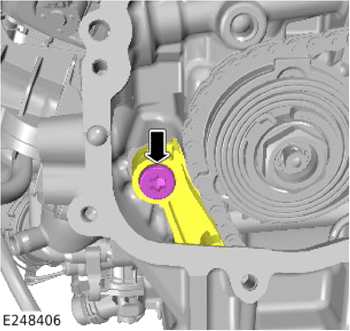

- Remove the bolt.
- Remove and discard the lower timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

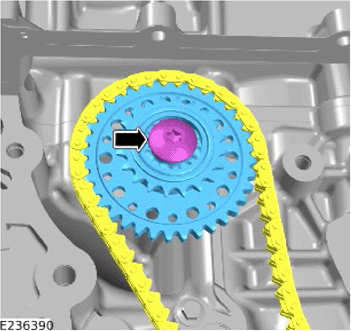

- Remove the bolt.
- Remove the idler sprocket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

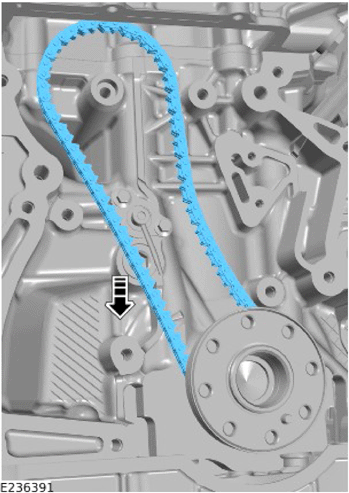

Remove the lower timing chain.
