Drive Plate (G2344498): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  3. Remove the accessory drive belt.

    Refer to: ACCESSORY DRIVE BELT

  4. Remove the transmission.

    Refer to: TRANSMISSION - INGENIUM I6 3.0L PETROL

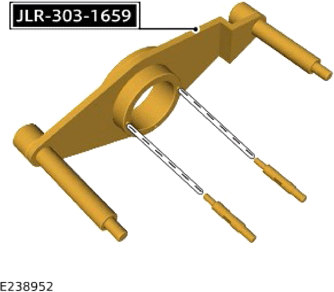

  5. G14056216Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Assemble the special tool as illustrated.

    Special Tool(s): JLR-303-1659

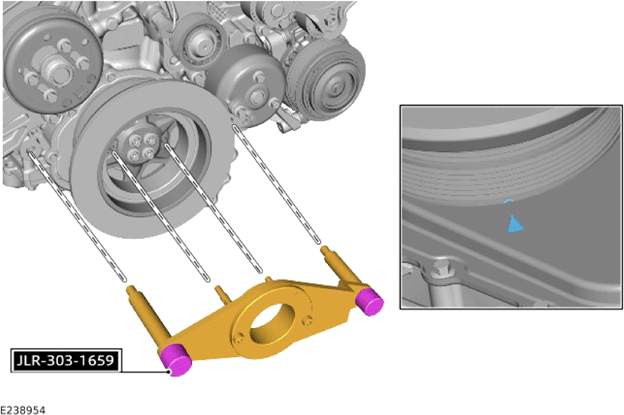

  6. G14056217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): JLR-303-1659

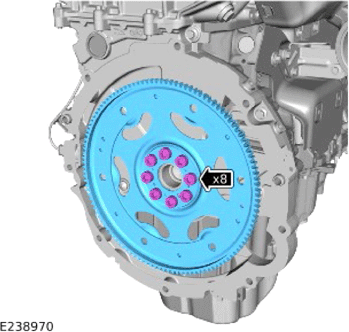

  7. G14056218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the 8 drive plate bolts.
    • Remove the drive plate.
