Crankshaft Pulley (G2344457): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
CAUTION:
- Make sure that the special tool is correctly located.
- Only rotate the crankshaft in a clockwise direction.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

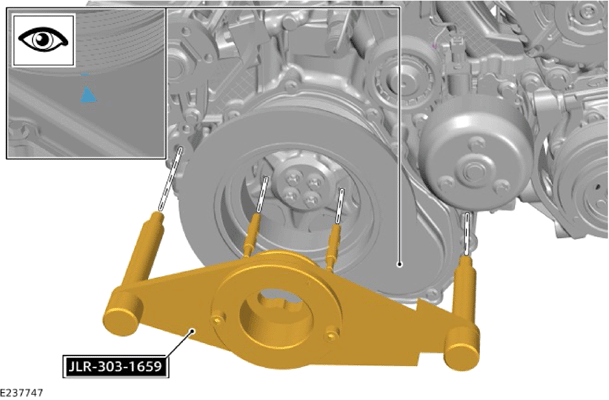

- Make sure the marks on the crankshaft pulley and engine front cover are aligned.
- Install the special tool onto the crankshaft pulley.
  Special Tool(s): JLR-303-1659
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

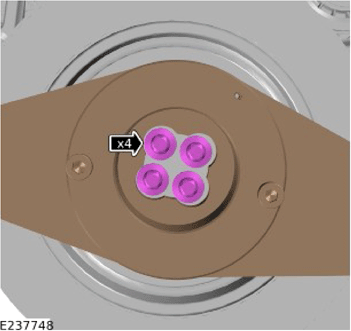

Remove and discard the 4 crankshaft pulley bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

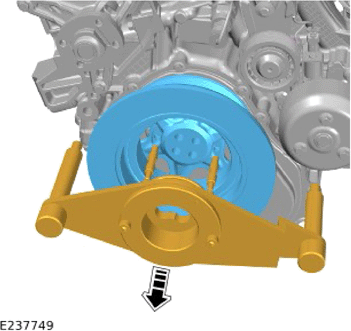

- Remove the special tool.
  Special Tool(s): JLR-303-1659
- Remove the crankshaft pulley.
