Crankshaft Front Seal (G2344456): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

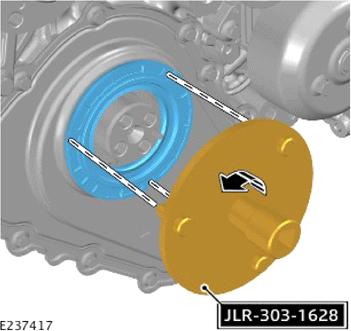

- Use the special tool to remove the crankshaft front seal.
  Special Tool(s): JLR-303-1628
- Discard the crankshaft front seal.
