Continuous Variable Valve Lift Oil Temperature Sensor (G2344497): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

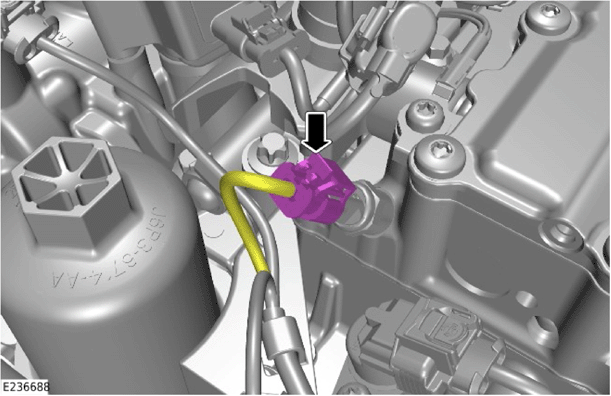

Disconnect the electrical connector from the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

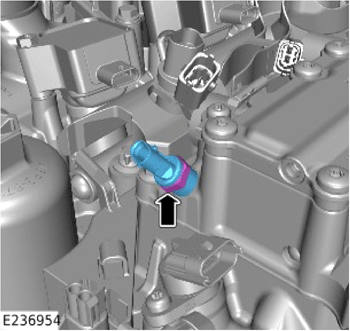

Remove the CVVL oil temperature sensor.
