Camshaft Carrier (G2340715): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the upper timing chain.
Refer to: UPPER TIMING CHAIN
Remove the fuel injectors.
Refer to: FUEL INJECTORS
Remove the High Pressure (HP) fuel pump.
Refer to: HIGH PRESSURE FUEL PUMP
Remove the electric supercharger.
Refer to: ELECTRIC SUPERCHARGER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

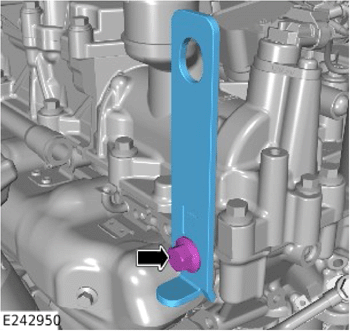

- Remove the bolt.
- Remove the powertrain support bracket.

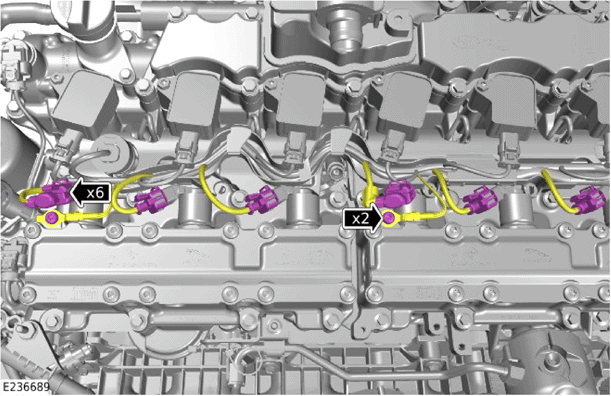

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 6 electrical connectors.
- Remove the 2 bolts.
- Reposition the wiring harness away from the camshaft carrier.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.
- Remove the 2 Camshaft Position Sensor (CMP) sensors.
- Remove and discard the 2 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

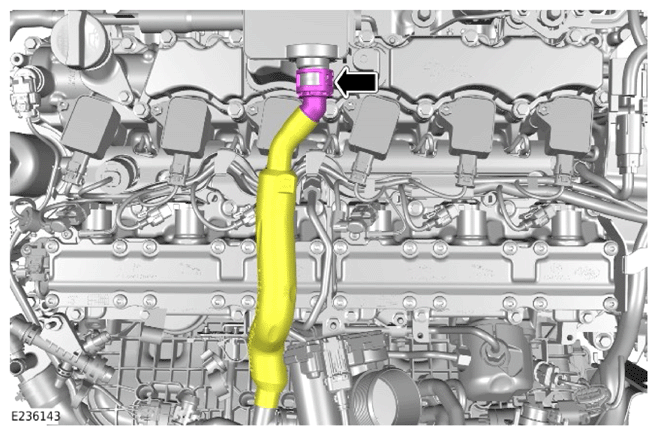

Disconnect the breather hose.

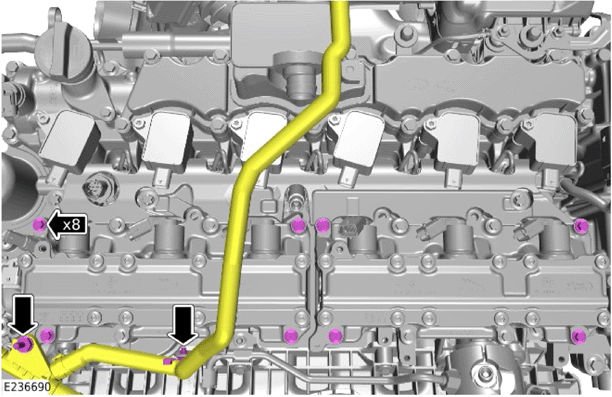

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the clip.
- Reposition the coolant hose away from the camshaft carrier.
- Remove the 8 bolts from the Continuous Variable Valve Lift (CVVL) assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

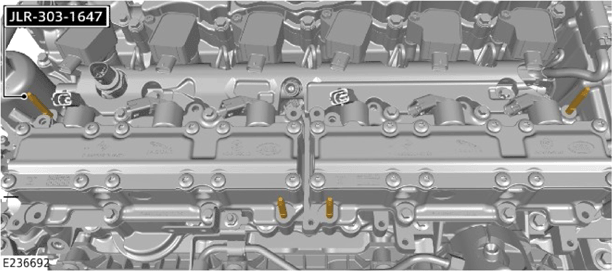

Install the special tools.

Special Tool(s): JLR-303-1647
CAUTION: Make sure the CVVL assembly is not inverted.

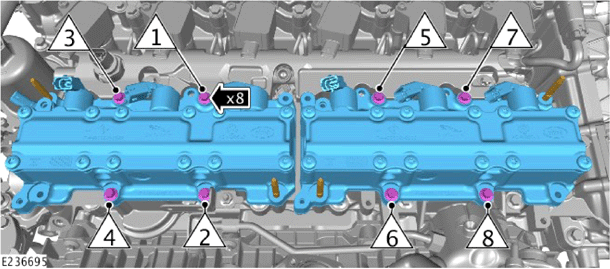

Fig 1: Continuous Variable Valve Lift Assembly Bolts Removal Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 8 bolts in the illustrated sequence.
- Remove the 2 CVVL assemblies.
- Remove the special tools.
  Special Tool(s): JLR-303-1647
CAUTION: Failure to follow this instruction will result in damage to the CVVL assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Do not allow the CVVL assembly to be rested on the brake units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

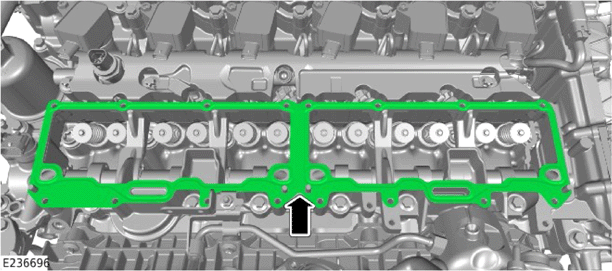

Remove and discard the CVVL gasket.

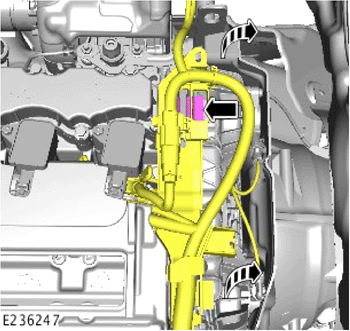

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.
- Reposition the wiring harness away from the engine vent oil separator.
NOTE: The bolts are captive.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

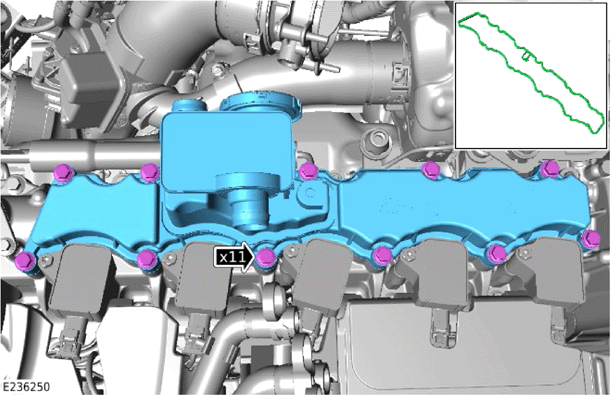

- Loosen but do not remove the 11 bolts.
- Remove the engine vent oil separator.
- Remove and discard the gasket.

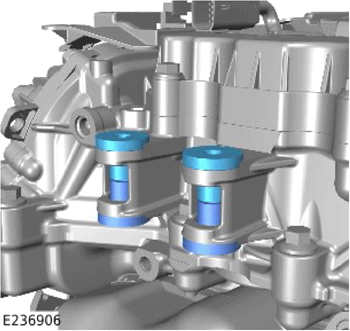

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 electric supercharger mounting rubbers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

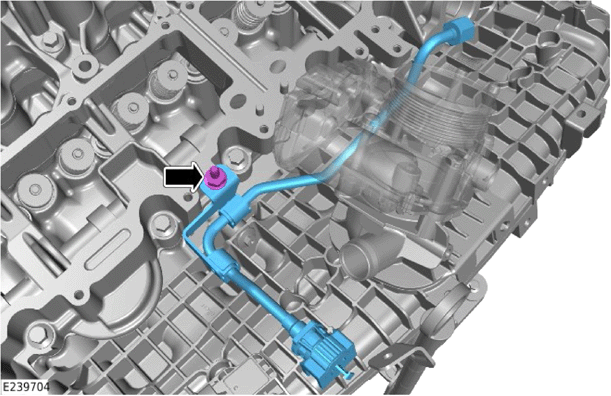

- Remove the bolt.
- Remove the fuel line.

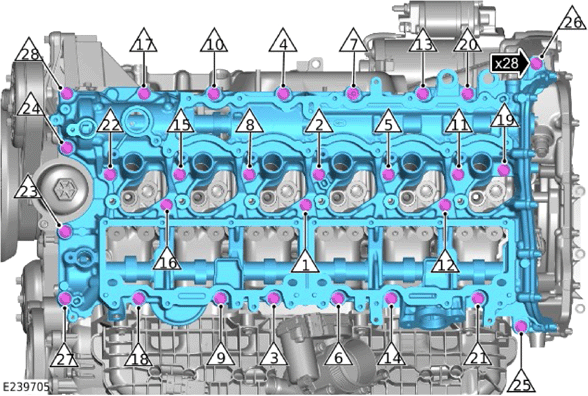

Fig 2: Camshaft Carrier Assembly Bolts Removal Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 28 bolts in the illustrated sequence.
- Remove the camshaft carrier assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

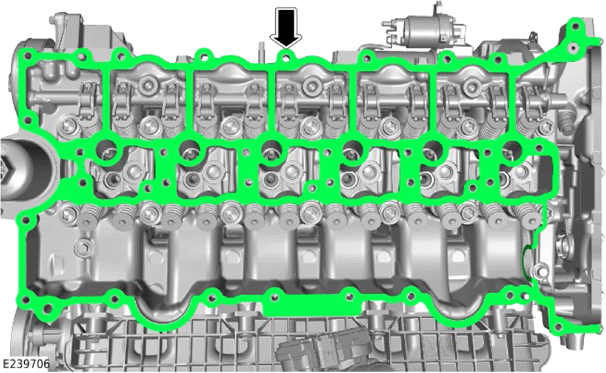

Remove and discard the camshaft carrier gasket.
CAUTION: This step is only required if a new camshaft carrier is being installed. If the camshaft bearing caps and nuts are removed the camshaft carrier cannot be reused.
NOTE:
- Make a note of the installed position and orientation of the camshaft before removal.
- A new camshaft carrier is supplied with camshaft bearing caps and nuts.

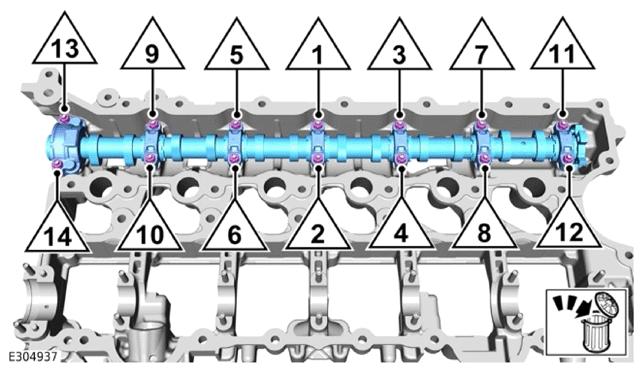

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

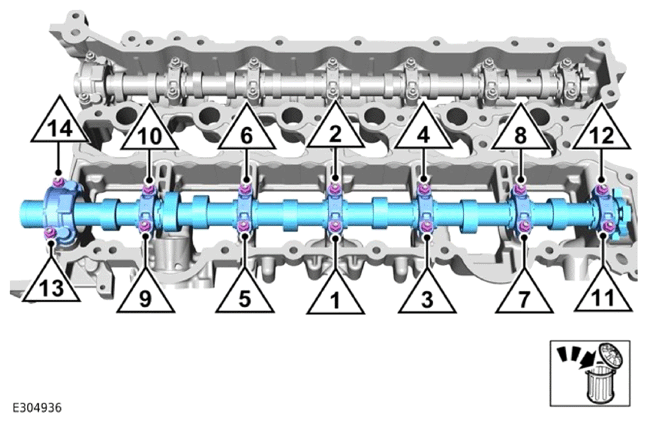

- Remove and discard the 14 nuts in the sequence illustrated.
- Remove and discard the 7 intake camshaft bearing caps.
- Remove the intake camshaft.
CAUTION: This step is only required if a new camshaft carrier is being installed. If the camshaft bearing caps and nuts are removed the camshaft carrier cannot be reused.
NOTE:
- Make a note of the installed position and orientation of the camshaft before removal.
- A new camshaft carrier is supplied with camshaft bearing caps and nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the 14 nuts in the sequence illustrated.
- Remove and discard the 7 exhaust camshaft bearing caps.
- Remove the exhaust camshaft.
