Camshaft Carrier (G2340715): Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE:
    • Steps 1 to 4 are only required if the components were previously removed.
    • Make a note of the camshaft bearing caps installed position, orientation and markings. Each camshaft bearing cap is marked with its position (number) and an orientation (arrow).

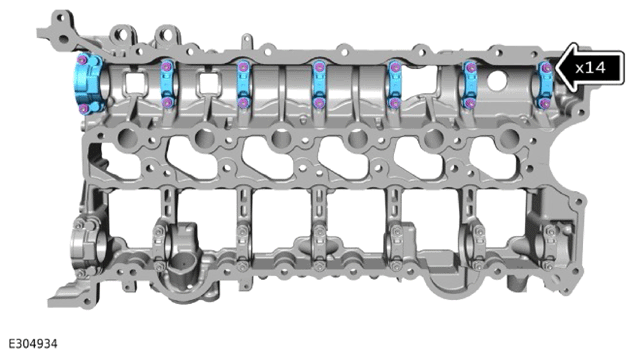

    G15225168Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 14 nuts from the new camshaft carrier.
    • Remove the 7 exhaust camshaft bearing caps from the new camshaft carrier.
  2. CAUTION: Make sure that the mating surfaces are clean and free from debris and foreign material.
    NOTE:
    • Lubricate the camshaft and the camshaft bearing caps with clean engine oil prior to installation.
    • Make sure that the camshaft is installed to the original position noted on removal.
    • Make sure that the camshaft bearing caps are installed to their original positions noted on removal.

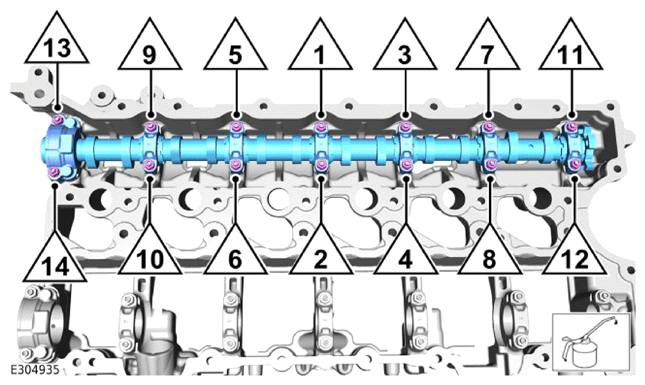

    G15225169Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the exhaust camshaft to the new camshaft carrier.
    • Install the 7 exhaust camshaft bearing caps.
    • Install and tighten the 14 nuts in the sequence illustrated.

      Torque

      Stage 1: 5 Nm

      Stage 2: 120°

  3. NOTE: Make a note of the camshaft bearing caps installed position, orientation and markings. Each camshaft bearing cap is marked with its position (number) and an orientation (arrow).

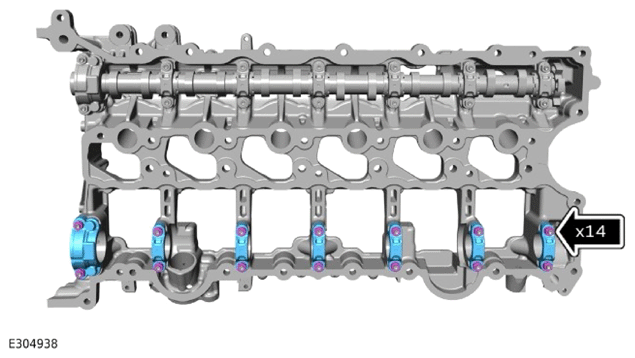

    G15225170Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 14 nuts from the new camshaft carrier.
    • Remove the 7 intake camshaft bearing caps from the new camshaft carrier.
  4. CAUTION: Make sure that the mating surfaces are clean and free from debris and foreign material.
    NOTE:
    • Lubricate the camshaft and the camshaft bearing caps with clean engine oil prior to installation.
    • Make sure that the camshaft is installed to the original position noted on removal.
    • Make sure that the camshaft bearing caps are installed to their original positions noted on removal.

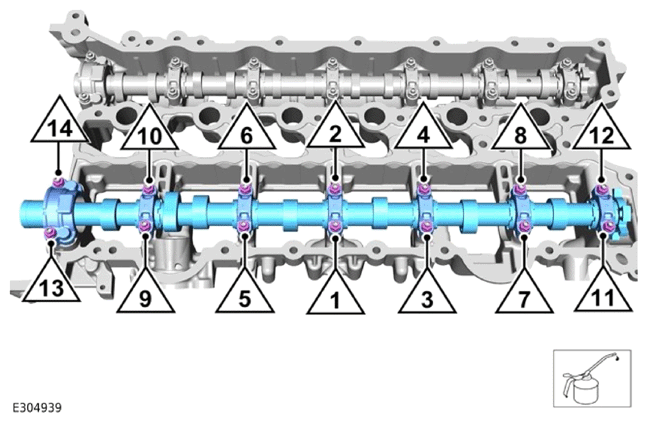

    G15225171Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the intake camshaft to the new camshaft carrier.
    • Install the 7 intake camshaft bearing caps.
    • Install and tighten the 14 nuts in the sequence illustrated.

      Torque

      Stage 1: 5 Nm

      Stage 2: 120°

  5. Install a new camshaft carrier gasket.

    Renew Part: Camshaft carrier gasket Quantity: 1  .

  6. NOTE: If the original cylinder head is installed use the threaded guide pins 303-1444-01.

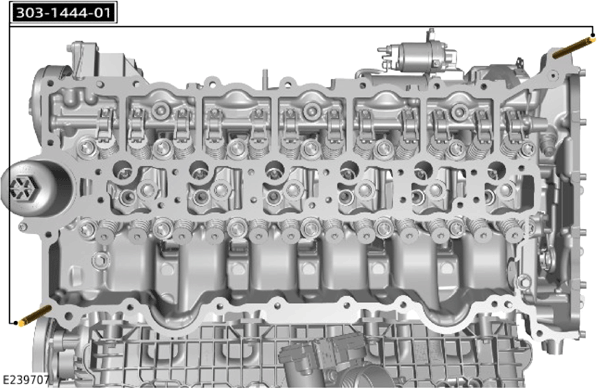

    G14056040Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools.

    Special Tool(s): 303-1444-01

  7. NOTE: If a new cylinder head is installed use the unthreaded guide pins 303-1444-02.

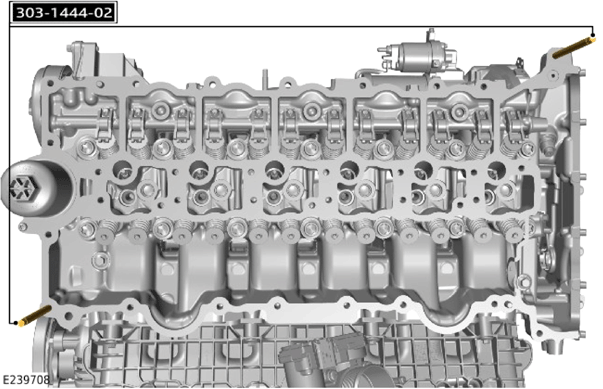

    G14056041Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools.

    Special Tool(s): 303-1444-02

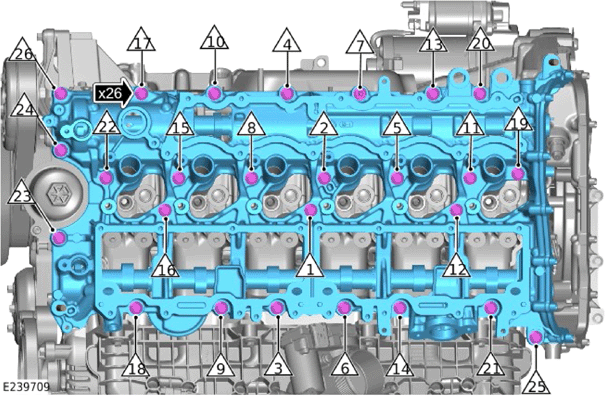

  8. G14056042Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the camshaft carrier.
    • Install and tighten the 26 bolts in the illustrated sequence.

      Torque  : 10 Nm

  9. NOTE: This step is only required if previously installed.

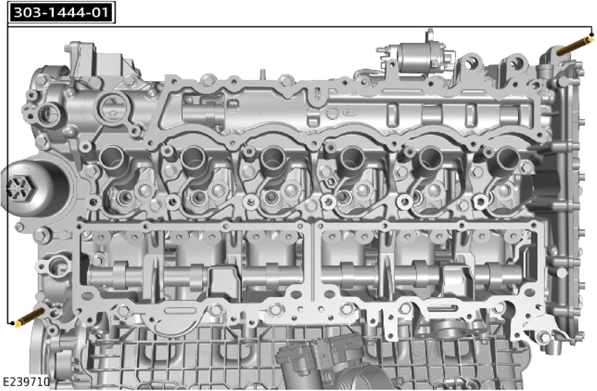

    G14056043Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): 303-1444-01

  10. NOTE: This step is only required if previously installed.

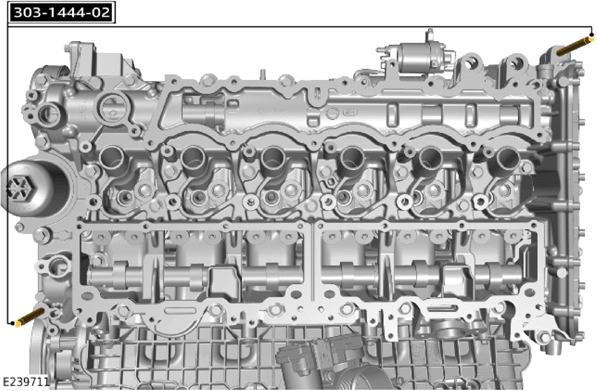

    G14056044Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): 303-1444-02

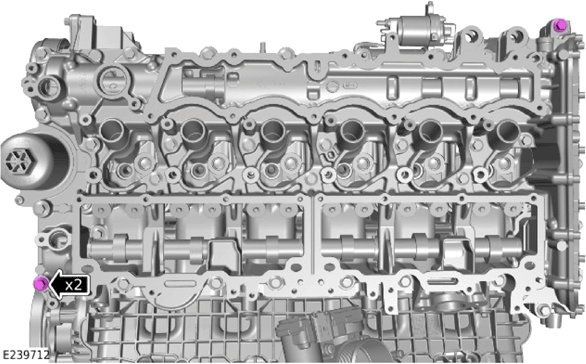

  11. G14056045Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts.

    Torque  : 10 Nm

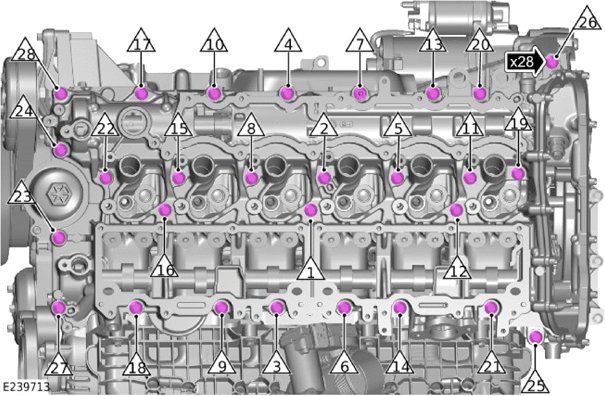

  12. G14056046Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 28 bolts in the illustrated sequence.

    Torque  : 28 Nm

    • Install the fuel line.
    • Install and tighten the bolt.

      Torque  : 11 Nm

  14. Install the 4 electric supercharger mounting rubbers.
  15. NOTE: The bolts are captive.

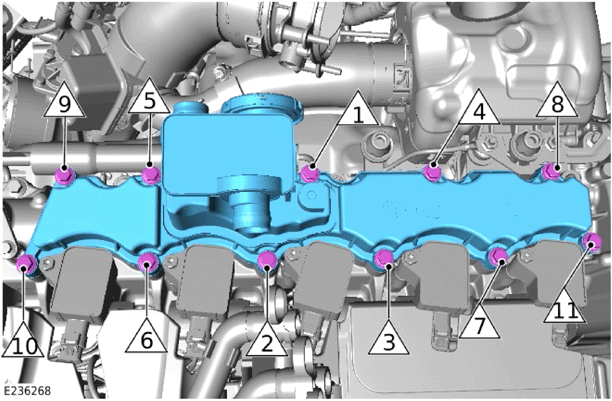

    G14056047Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new gasket.

      Renew Part: Engine vent oil separator to valve cover gasket Quantity: 1  .

    • Install the engine vent oil separator.
    • Tighten the 11 bolts in the illustrated sequence.

      Torque  : 11 Nm

    • Reposition the engine wiring harness in the correct location.
    • Install the clip.
  17. Install a new CVVL  gasket.

    Renew Part: Continuous Variable Valve Lift (CVVL) Assembly Gasket Quantity: 1  .

  18. CAUTION: Failure to follow this instruction will result in damage to the CVVL  assembly.

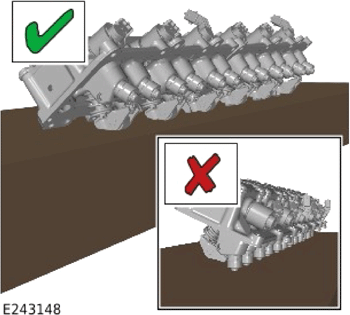

    G14056030Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Do not allow the CVVL  assembly to be rested on the brake units.

  19. CAUTION:
    • Make sure the mating surfaces are clean and free of foreign material.
    • CVVL  assembly shown inverted to provide extra clarity. Make sure the CVVL  assembly is not inverted.
    NOTE: This step is not required if a new CVVL  assembly is installed.

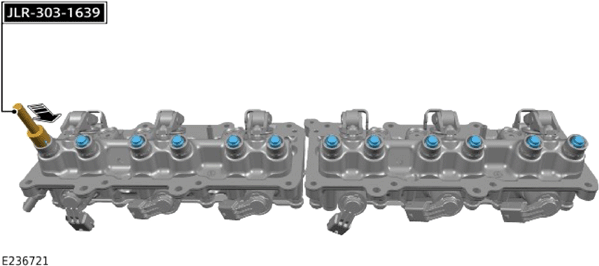

    G14056049Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to reset the 12 CVVL  brake units.

    Special Tool(s): JLR-303-1639

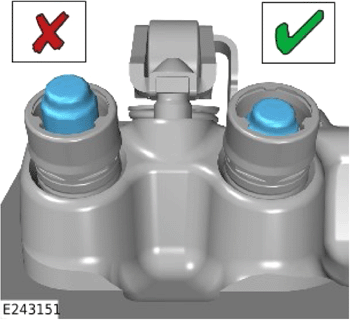

  20. G14056050Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the CVVL  brake units are correctly reset.

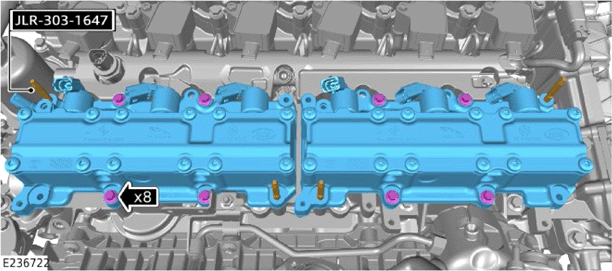

  21. G14056051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tools.

      Special Tool(s): JLR-303-1647

    • Install the 2 CVVL  assemblies.
    • Install, but do not fully tighten the 8 bolts.
    • Remove the special tools.

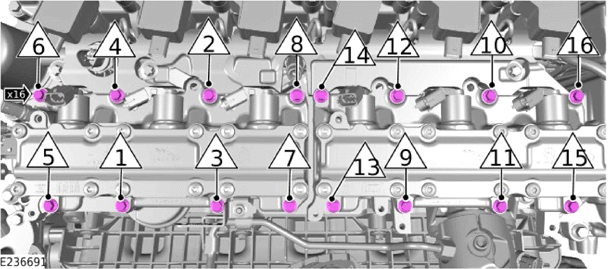

  22. G14056052Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install, but do not fully tighten the 8 remaining bolts.
    • Tighten the 16 bolts in the illustrated sequence.

      Torque  : 11.5 Nm

    • Reposition the coolant hose.
    • Install the clip.
    • Install and tighten the bolt.

      Torque  : 11 Nm

  24. Connect the breather hose.

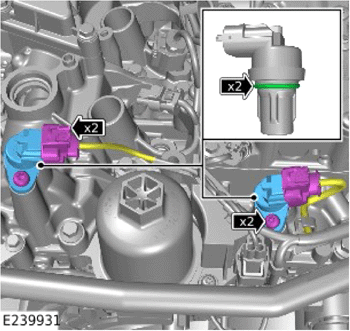

  25. G14056025Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new O-ring seals.

      Renew Part: Camshaft position sensor O-ring seal Quantity: 2  .

    • Install the 2 CMP  sensors.
    • Install and tighten the 2 bolts.

      Torque  : 8 Nm

    • Connect the 2 electrical connectors.
    • Reposition the wiring harness in the correct location.
    • Connect the 6 electrical connectors to the CVVL  assembly.
    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

    • Install the powertrain support bracket.
    • Install and tighten the bolt.

      Torque  : 47 Nm

  28. Install the electric supercharger.

    Refer to: ELECTRIC SUPERCHARGER

  29. Install the HP  fuel pump.

    Refer to: HIGH PRESSURE FUEL PUMP

  30. Install the fuel injectors.

    Refer to: FUEL INJECTORS

  31. Install the upper timing chain.

    Refer to: UPPER TIMING CHAIN

  32. Connect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT
