Engine Assembly Remove For Access (G2422567): Part(S)

WARNING: This page is about a different variant/trim than selected.

STEP	PART NAME	QUANTITY
Step 52	Air conditioning pipe O-ring seal(s)	2
Step 53	Air conditioning pipes to condenser O-ring seals	2
Step 17	Engine mount to engine mount bracket nut	1
Step 18	Engine mount to engine mount bracket nut	1
Step 19	Oil fill pipe O-ring seal	1
Step 13	Oil level gauge O-ring seal	1

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

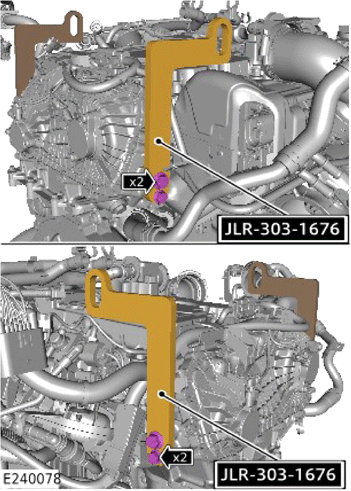

- Install the special tools.
  Special Tool(s): JLR-303-1676
- Install and tighten the 4 bolts.
  Torque

  M10: 47 Nm

  M8: 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

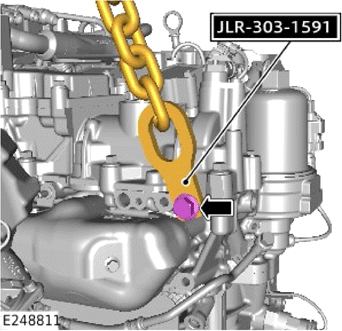

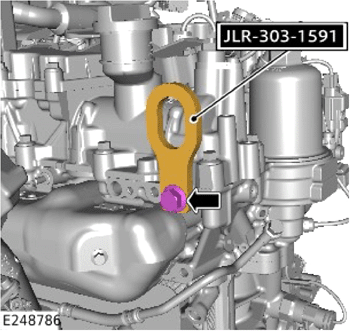

- Install the special tool.
  Special Tool(s): JLR-303-1591
- Install, but do not fully tighten the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

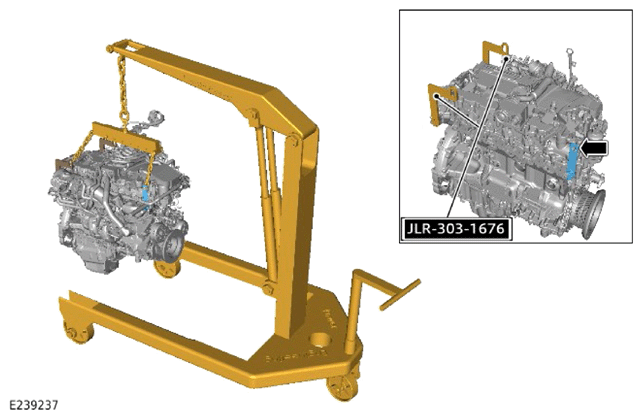

- Install a suitable hydraulic jib crane to the special tools and lifting bracket as illustrated.
  Special Tool(s): JLR-303-1676 , JLR-303-1680 , JLR-303-1591

  General Equipment: Hydraulic jib crane
- Operate the crane to align the special tool JLR-303-1591.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the bolt.

Torque : 50 Nm
WARNING: Always follow the engine stand manufacturer's instructions.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine from the engine stand.

General Equipment: Engine stand
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

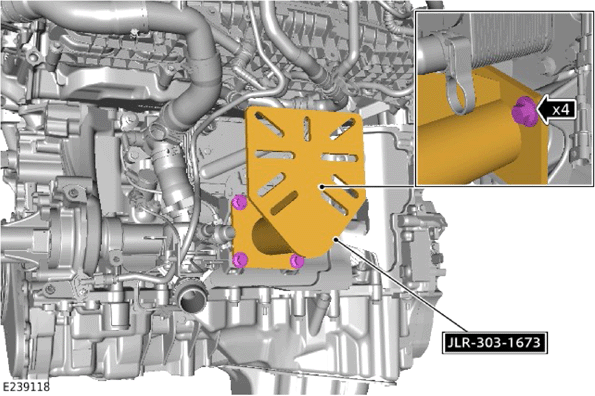

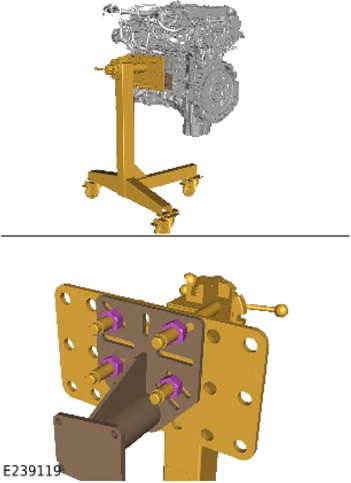

- Remove the 4 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1673
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

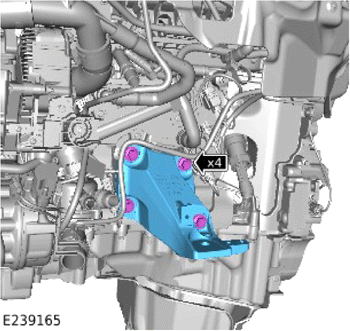

- Install the bracket.
- Install and tighten the 4 bolts.
  Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the coolant pipes.
- Install and tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

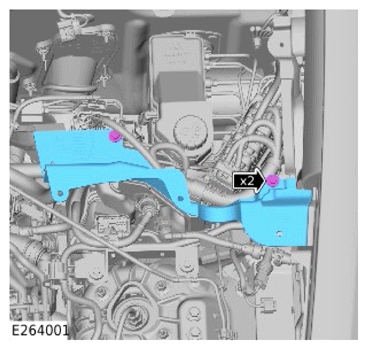

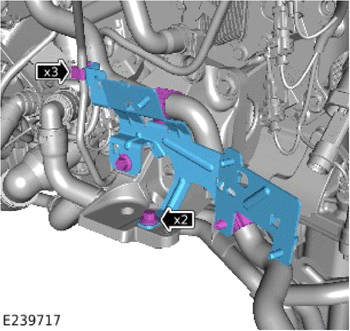

- Install the bracket.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
- Install the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

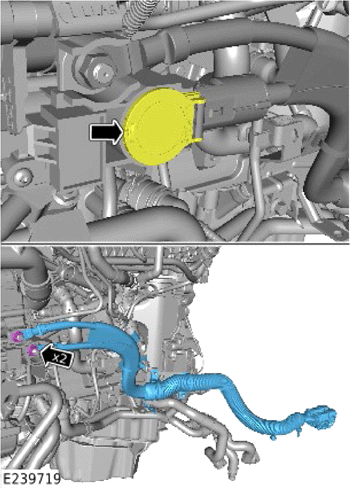

- Install the wiring harness.
- Install and tighten the 2 nuts.
  Torque : 12 Nm
- Install the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

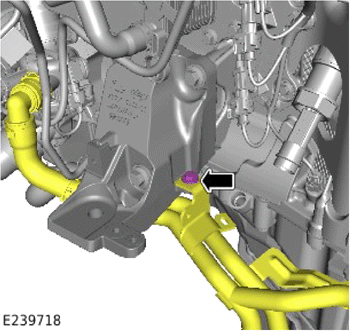

Install and tighten the bolt.

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

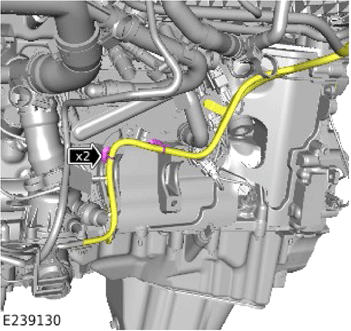

Install the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

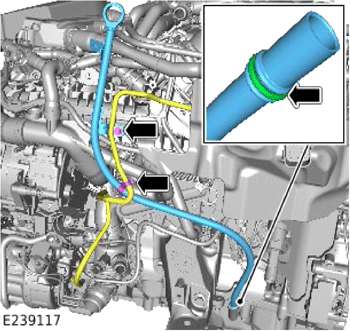

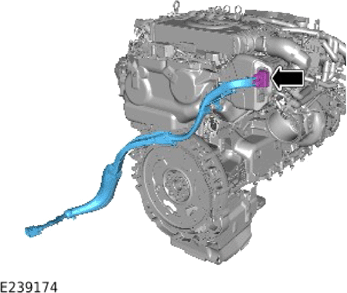

- Install a new O-ring seal.
  Renew Part: Oil level gauge O-ring seal Quantity: 1 .
- Lubricate the O-ring seal with clean engine oil.
- Install the oil level gauge.
- Install and tighten the bolt.
  Torque : 7 Nm
- Install the clip.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

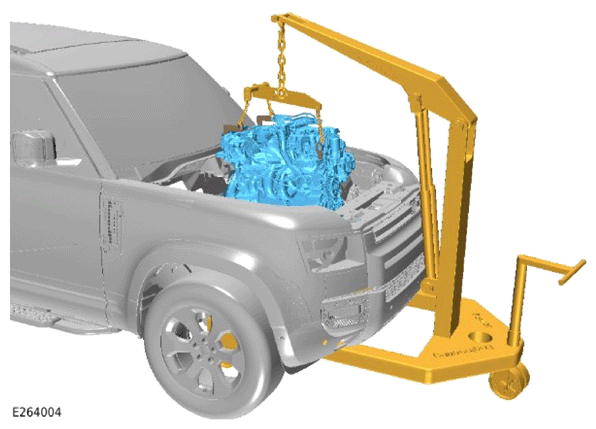

Carefully install the engine assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

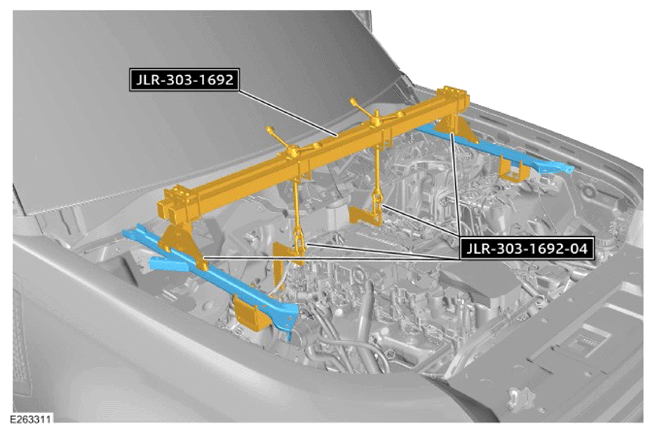

Install the special tool to the position illustrated.

Special Tool(s): JLR-303-1692 , JLR-303-1692-04
Remove the hydraulic jib crane.
General Equipment: Hydraulic jib crane
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

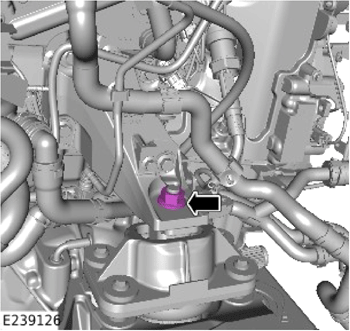

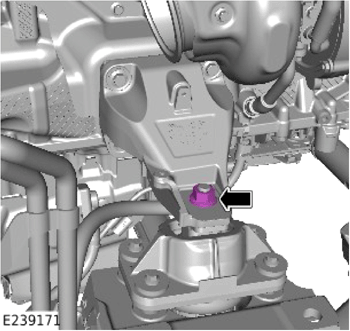

Install and tighten the nut.

Renew Part: Engine mount to engine mount bracket nut Quantity: 1 .

Torque : 110 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

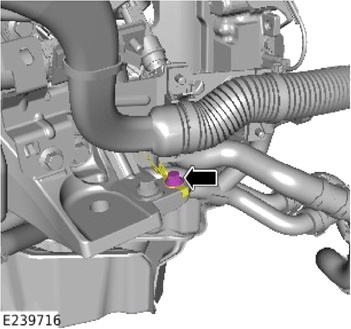

Install and tighten the nut.

Renew Part: Engine mount to engine mount bracket nut Quantity: 1 .

Torque : 110 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

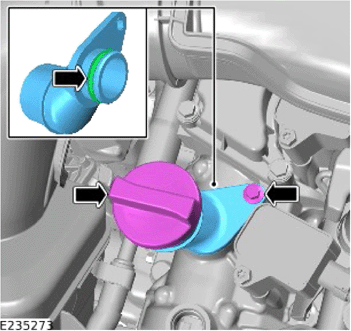

- Install a new O-ring seal.
  Renew Part: Oil fill pipe O-ring seal Quantity: 1 .
- Lubricate the O-ring seal with clean engine oil.
- Install the oil filler neck.
- Install and tighten the bolt.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1591
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

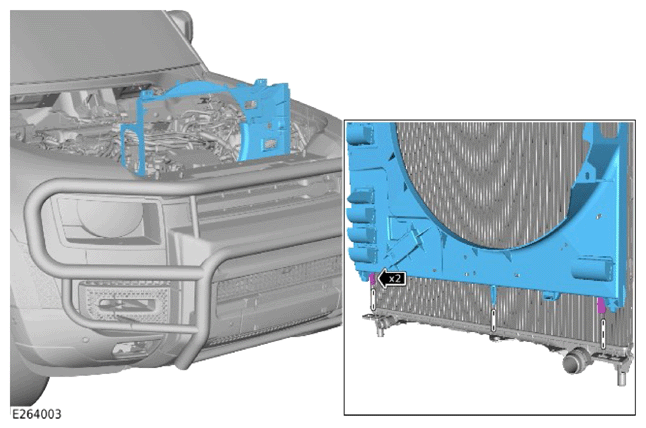

Install the cooling fan shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 bolts.

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

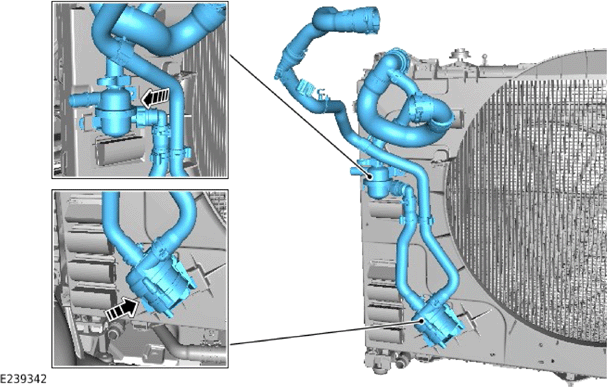

- Install the coolant hose assembly.
- Install the coolant pump.
- Install the coolant reservoir.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

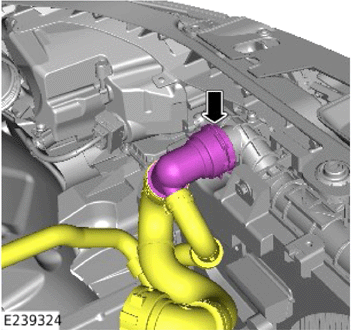

Connect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

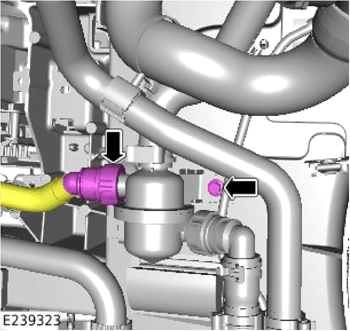

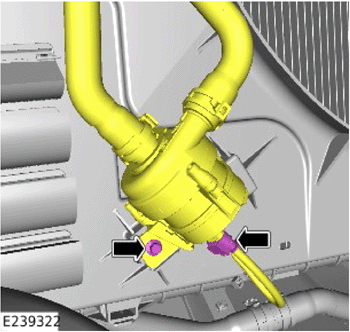

- Install and tighten the bolt.
  Torque : 10 Nm
- Connect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

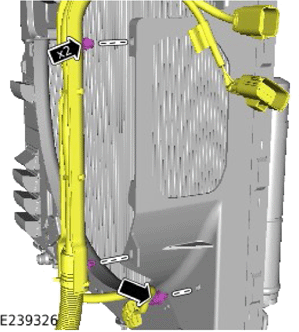

- Reposition the wiring harness.
- Install the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

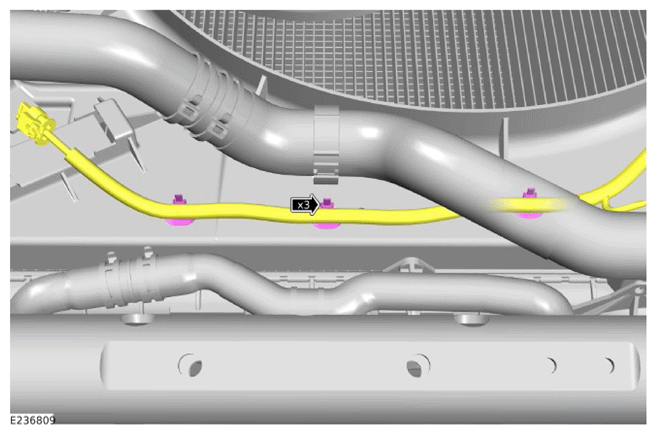

Install the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

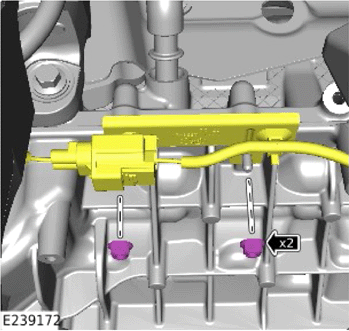

- Install and tighten the bolt.
  Torque : 10 Nm
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

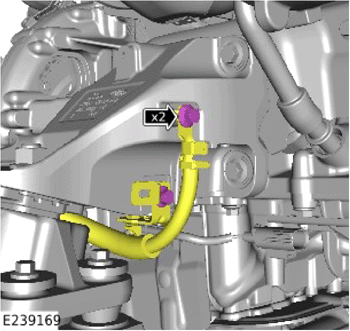

- Reposition the wiring harness.
- Install and tighten the 2 nuts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

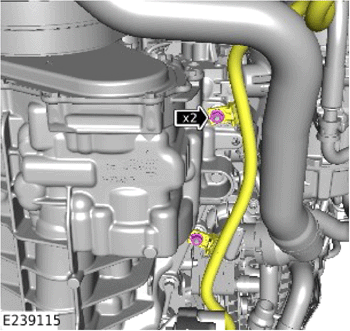

- Reposition the wiring harness.
- Install and tighten the 2 bolts.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

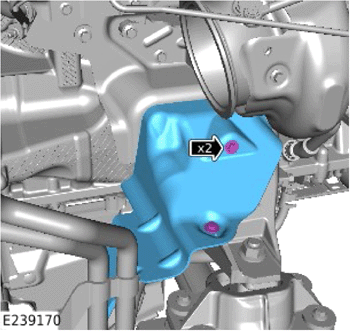

- Install the heatshield.
- Install and tighten the 2 bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

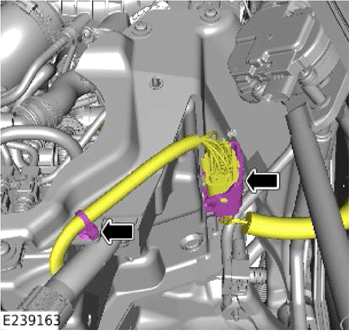

- Install the wiring harness.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

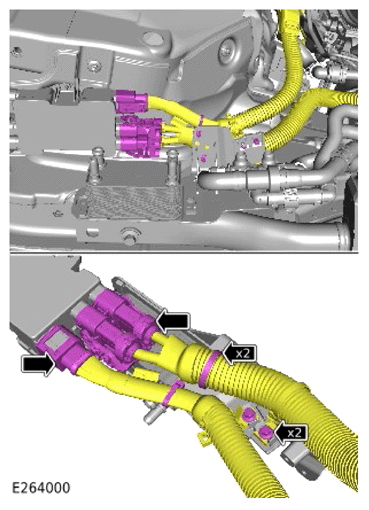

- Connect the 2 electrical connectors.
- Install the 2 clips.
- Install and tighten the 2 bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

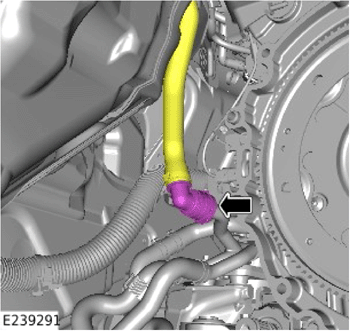

Connect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

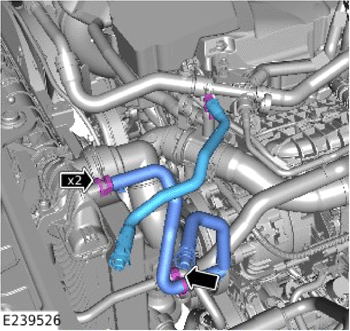

Connect the 3 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

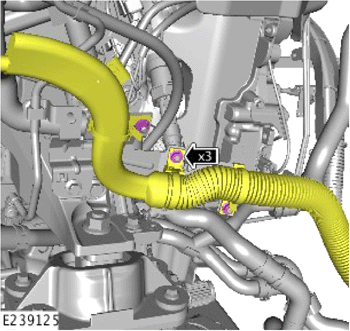

- Reposition the wiring harness.
- Install and tighten the 3 nuts.
  Torque : 9 Nm
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the wiring harness.
- Install and tighten the 2 nuts.
  Torque : 9 Nm
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

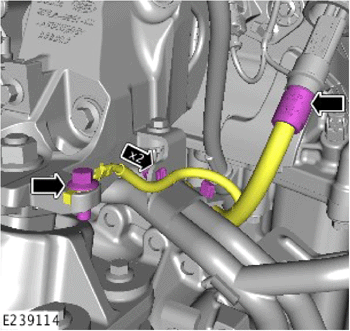

- Reposition the wiring harness.
- Connect the electrical connector.
- Install and tighten the bolt.
  Torque : 9 Nm
- Install the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the coolant pipe.
- Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

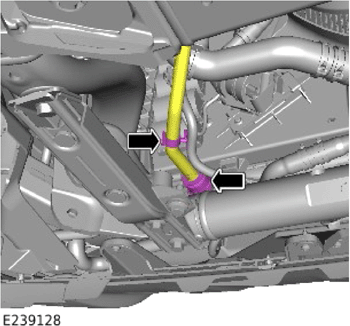

- Install the clip.
- Connect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

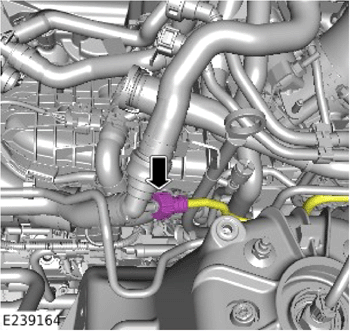

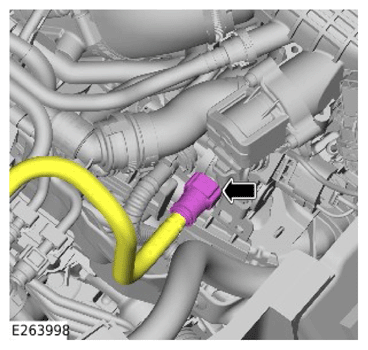

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the fuel line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

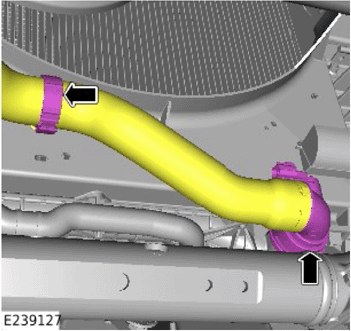

Connect the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

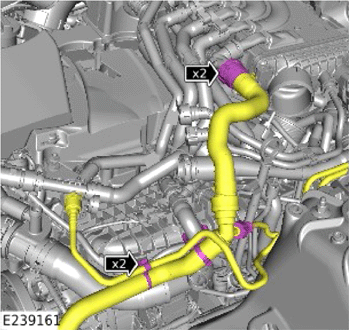

- Connect the 2 coolant pipes.
- Install the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

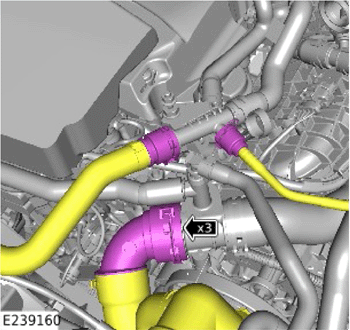

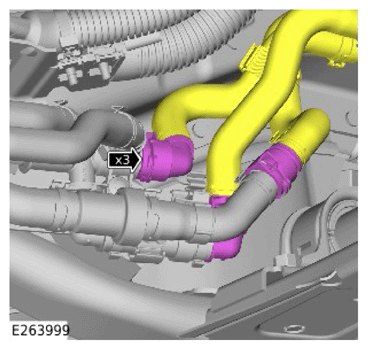

Connect the 3 coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

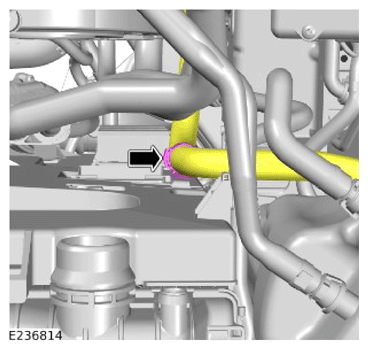

Connect the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

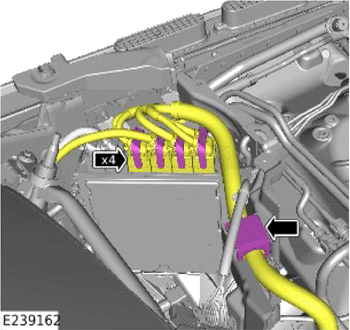

- Reposition the wiring harness.
- Connect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

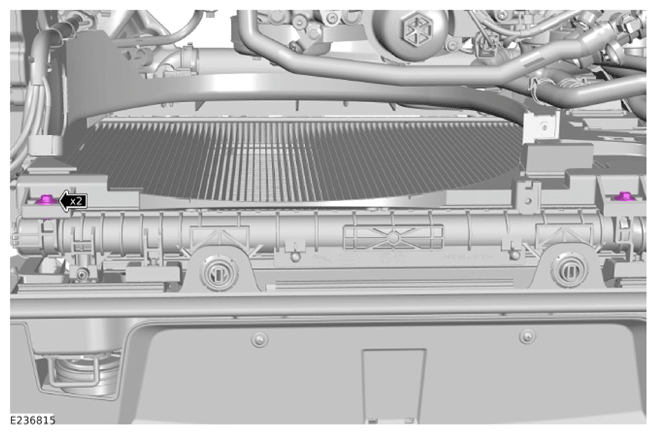

- Install the closing panel.
- Install and tighten the 2 bolts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

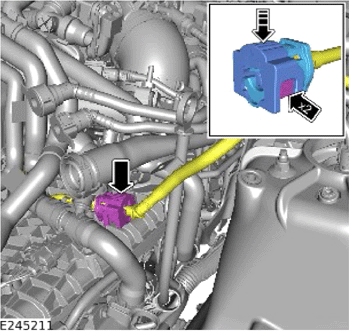

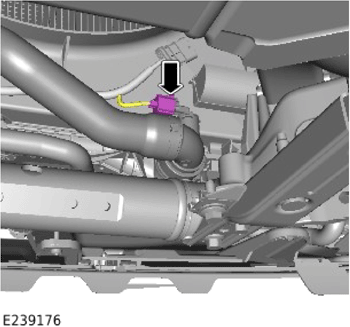

- Connect the electrical connector.
- Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

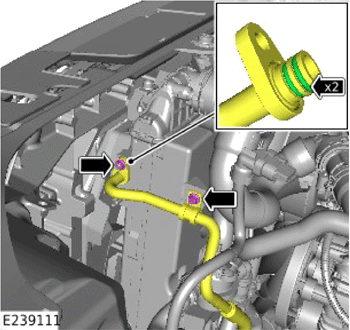

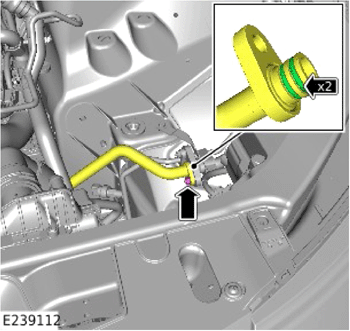

- Install 2 new O-ring seals.
  Renew Part: Air conditioning pipe O-ring seal(s) Quantity: 2 .
- Install the Air Conditioning (A/C) pipe.
- Install and tighten the nut.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install 2 new O-ring seals.
  Renew Part: Air conditioning pipes to condenser O-ring seals Quantity: 2 .
- Install the A/C pipe.
- Install and tighten the nut.
  Torque : 8 Nm
- Install and tighten the bolt.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

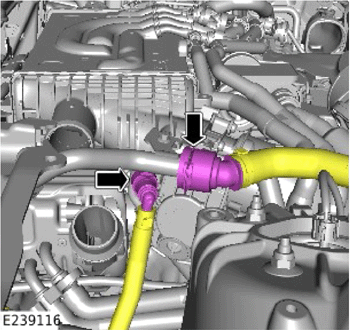

- Install the 2 coolant hoses.
- Install the clip.
- Connect the 2 coolant hoses.
Charge the A/C system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Install the transmission.
Refer to: TRANSMISSION - INGENIUM I6 3.0L PETROL
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Install the viscous cooling fan.
Refer to: VISCOUS COOLING FAN
Install the coolant expansion tank.
Refer to: COOLANT EXPANSION TANK
Install the hood.
Refer to: HOOD
Power up the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP
