Engine Oil Draining And Filling (G2692468): Filling

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the oil filter element and cap, check the bypass valve (A) is installed and correctly attached to the locating tabs (B).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new oil filter element cap o-ring.
  Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
- Lubricate the oil filter element cap o-ring (A) and oil filter element o-ring (B) with clean engine oil.
- Install a new oil filter element. Make sure the oil filter element is pushed correctly onto the bypass valve inside the oil filter element cap (C).
  Renew Part: Oil filter Quantity: 1 .

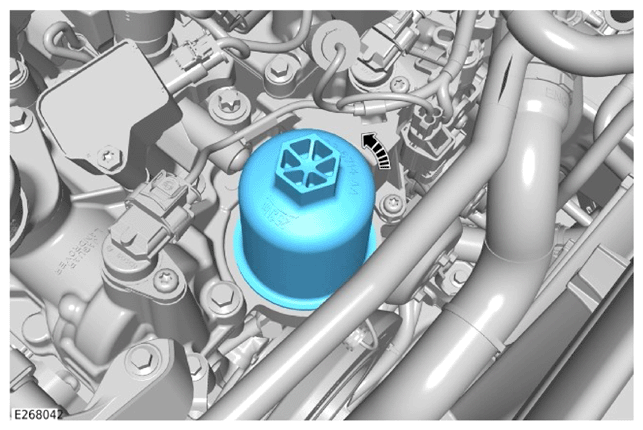

Install and tighten the oil filter element cap.
Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil filler cap.
- Fill the engine with the recommended oil to the correct level.
- Refer to: SPECIFICATIONS .
Install the oil filler cap.
- Start the engine and allow to idle for 2 minutes.
- Check for leaks.
- Stop the engine.
CAUTION:
- Inspect the o-ring and replace if damaged or worn.
- Make sure that the component is correctly installed.
NOTE: The vehicle must be on a flat level surface.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

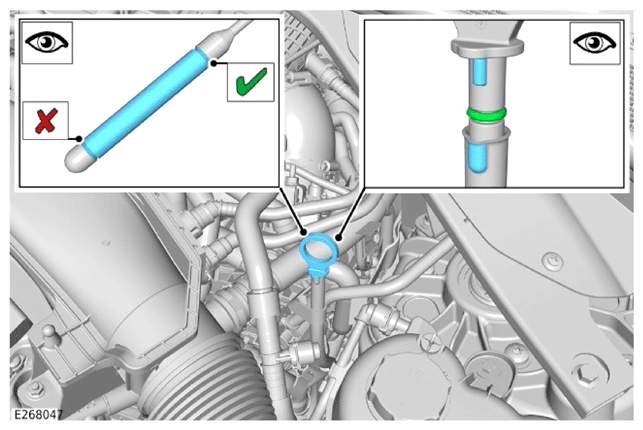

- Check and top up the engine with oil if required.
- Refer to: SPECIFICATIONS .
Raise the vehicle.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD
Lower the vehicle.
Install the NVH cover.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL
