Cylinder Numbering
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| A |
Front of the engine |
| 1 |
Cylinder No. 1 |
| 2 |
Cylinder No. 2 |
| 3 |
Cylinder No. 3 |
| 4 |
Cylinder No. 4 |
| 5 |
Cylinder No. 5 |
| 6 |
Cylinder No. 6 |

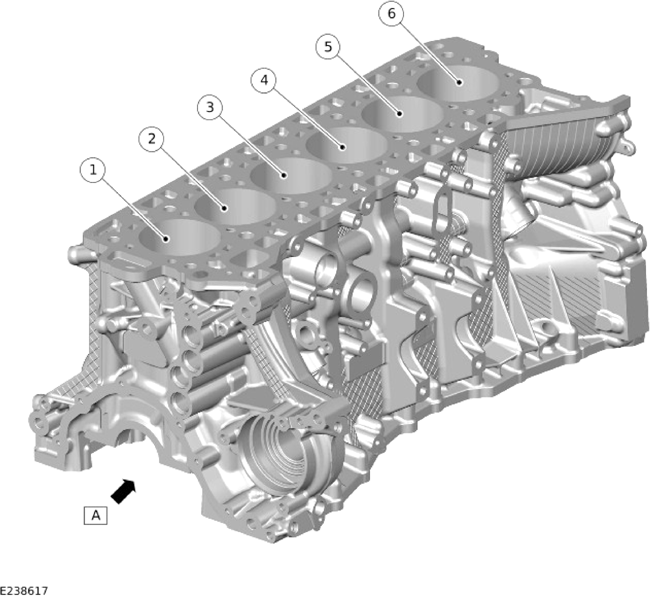

The cylinders are numbered as shown, with cylinder 1 at the front of the engine. The firing order is the following: 1, 5, 3, 6, 2, 4.
