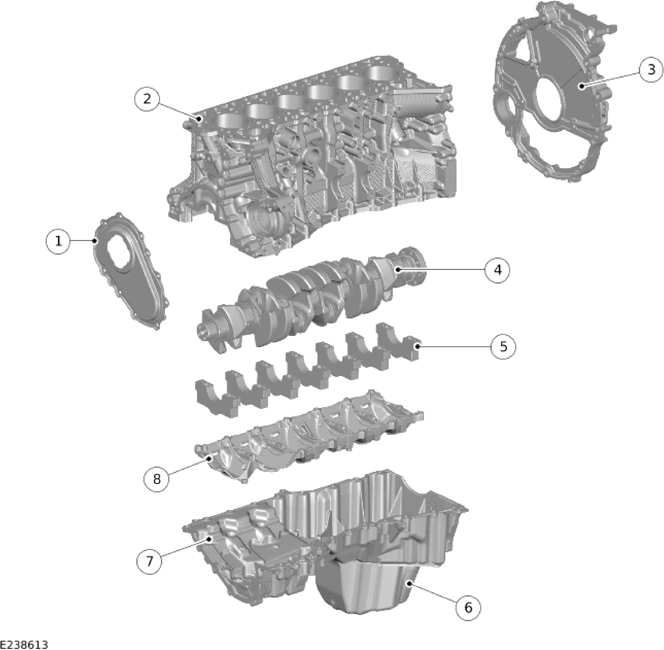

Cylinder Block Components
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Engine front cover |
| 2 |
Cylinder block |
| 3 |
Lower timing chain cover |
| 4 |
Crankshaft |
| 5 |
Main bearing cap (quantity 7) |
| 6 |
Oil pan |
| 7 |
Oil pan extension |
| 8 |
Windage tray |
