Active Engine Mount System
WARNING: This page is about a different variant/trim than selected.

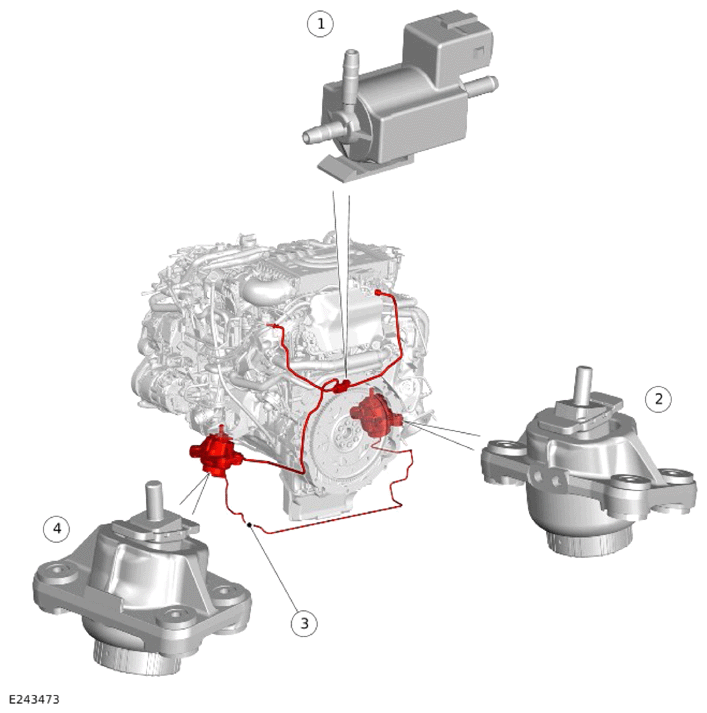

| ITEM | DESCRIPTION |
|---|---|
| 1 | Active engine mount solenoid |
| 2 | Active engine mount - Right |
| 3 | Vacuum pipe |
| 4 | Active engine mount - Left |
The active engine mount system comprises the following components:
- The 2 active engine mounts
- The active engine mount solenoid
- Connecting vacuum pipes.
The PCM controls the vacuum operated engine mounts through an active engine mount solenoid. If the active engine mount solenoid is activated the active engine mounts became soft. The active engine mounts operate at idle speed, and are switched off when the engine speed goes above a predetermined threshold. The active engine mounts are switched off when the engine speed increases to 1, 250 RPM .
