Long/Stripped Engine Assembly Renew (G3183749): Part(S)
| STEP | PART NAME | QUANTITY |
|---|---|---|
| Step 21 | Coolant pump bolts | 3 |
| Step 10 | Crankshaft pulley bolts | 4 |
| Step 12 | Drive plate bolts | 8 |
| Step 69 | Engine block heater manifold seal(s) | 1 |
| Step 21 | Engine coolant pump gasket | 1 |
| Step 14 | Engine vent oil separator to valve cover gasket | 1 |
| Step 49 | Exhaust manifold bolts | 11 |
| Step 51 | Exhaust manifold bolts | 2 |
| Step 48 | Exhaust manifold gasket | 1 |
| Step 74 | Fuel Injection Pump retaining bolts | 2 |
| Step 27 | Fuel Injector replacement kits | 6 |
| Step 74 | Fuel pump O-ring seal | 1 |
| Step 39 | Fuel rail bolt(s) | 4 |
| Step 40 | Fuel rail bolt(s) | 2 |
| Step 71 | Intake manifold seals | 6 |
| Step 56 | Oil supply pipe sealing washers | 2 |

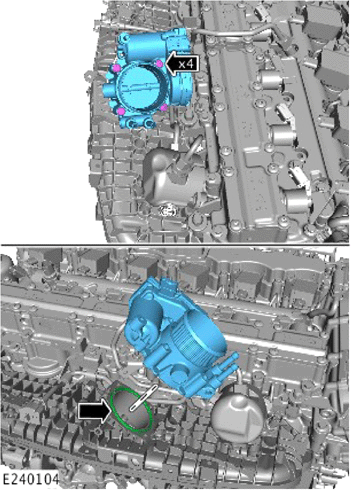

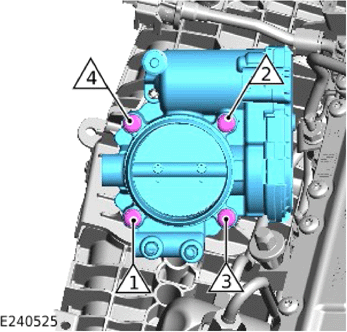

| Step 80 | Throttle body to intake manifold seal | 1 |
| Step 54 | Turbocharger coolant pipe O-ring seal | 2 |
| Step 55 | Turbocharger oil return pipe seals | 2 |
- Be prepared to collect escaping coolant.
- Be prepared to collect escaping oil.
- Be prepared to collect escaping fuel.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

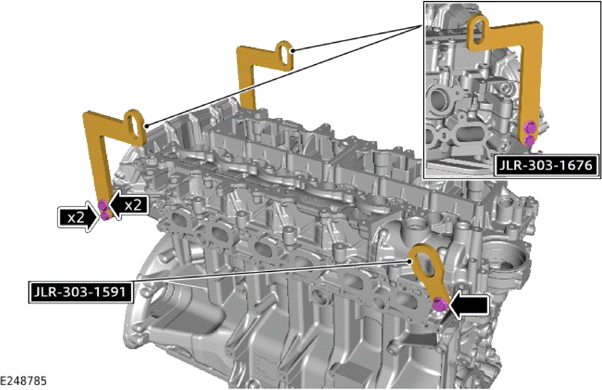

- Install the special tools JLR-303-1676.
Special Tool(s): JLR-303-1676
- Install and tighten the 4 bolts.
Torque
M8: 24 Nm
M10: 47 Nm

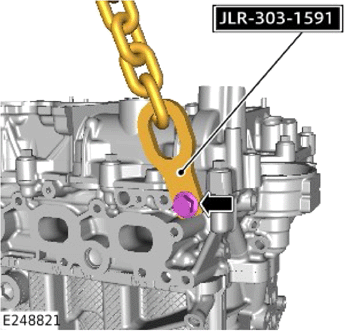

- Install the special tool JLR-303-1591.
Special Tool(s): JLR-303-1591
- Install and tighten the bolt.
Torque : 10 Nm
- Install the special tools JLR-303-1676.

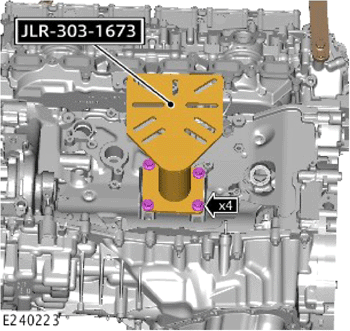

- Install the special tool.
Special Tool(s): JLR-303-1673
- Install and tighten the 4 bolts.
Torque : 40 Nm
- Install the special tool.
-
CAUTION: Only operate the crane enough to align special tool JLR-303-1591. Do not apply lifting force to the engine.

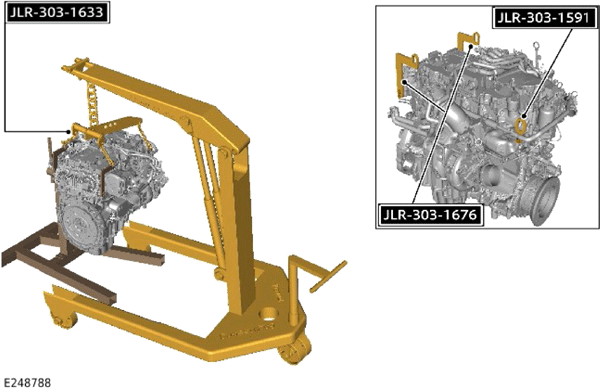

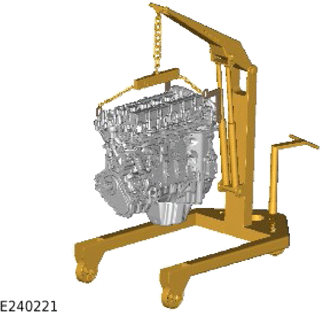

- Install a suitable hydraulic jib crane to the special tools and lifting bracket as illustrated.
General Equipment: Hydraulic jib crane
- Operate the crane to align the special tool JLR-303-1591.
- Install a suitable hydraulic jib crane to the special tools and lifting bracket as illustrated.
- Fully tighten the bolt.
Torque : 47 Nm
- Fully tighten the bolt.
-
WARNING: This step requires the aid of another technician.

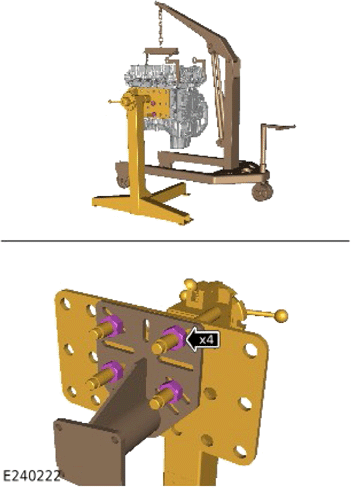

With the aid of another technician, install the engine assembly to a suitable engine stand following the manufacturers instructions.
Remove the hydraulic jib crane.
General Equipment: Hydraulic jib crane
Remove the special tools.
Special Tool(s): JLR-303-1676 , JLR-303-1591

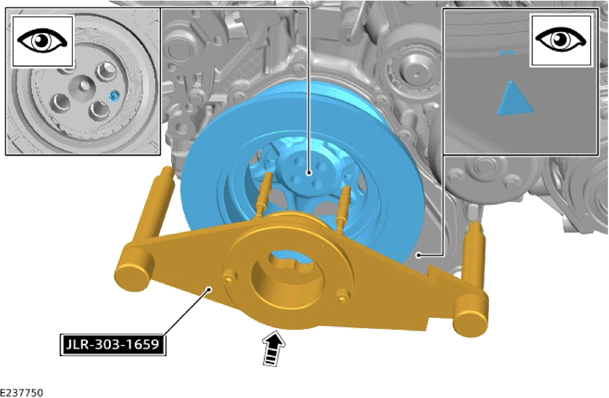

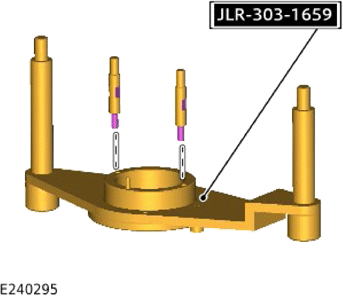

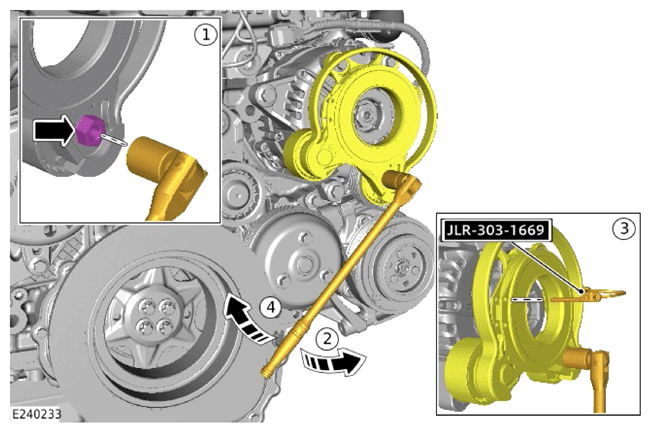

Install the special tool as illustrated.
Special Tool(s): JLR-303-1659

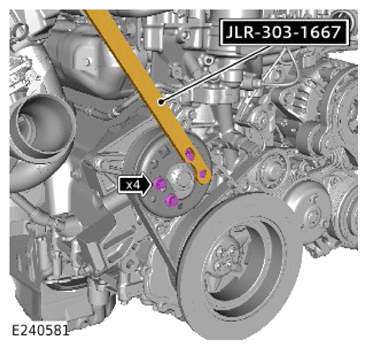

- Install the crankshaft damper pulley.

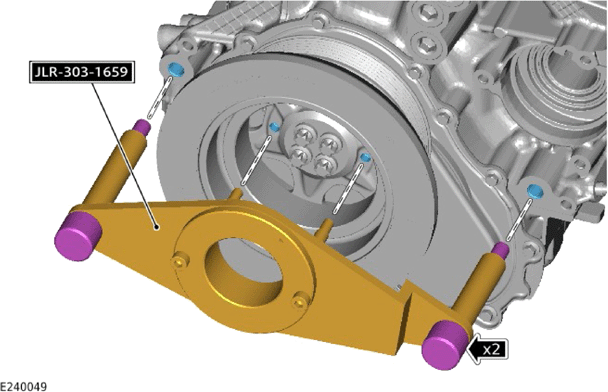

- Install the special tool.
Special Tool(s): JLR-303-1659
-

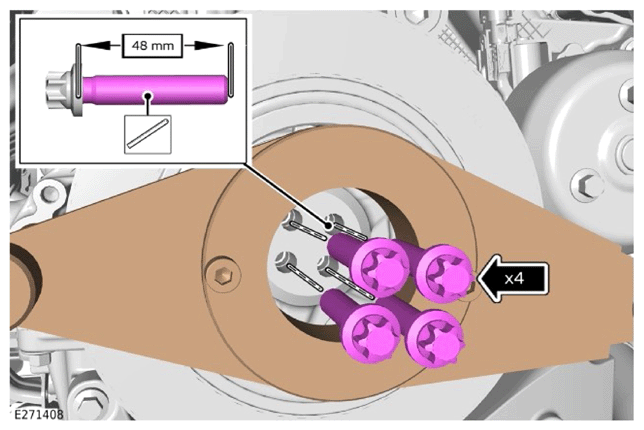

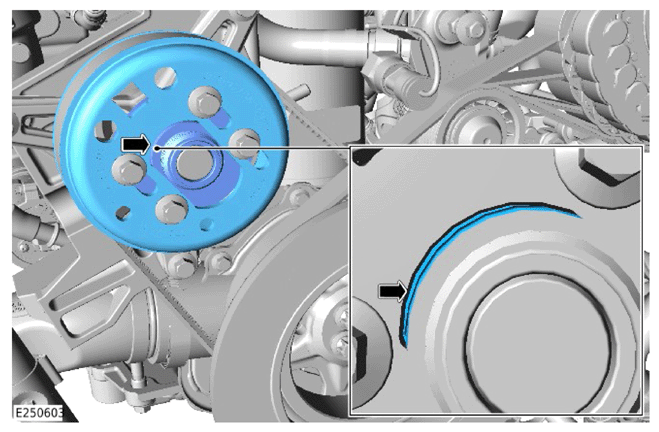

CAUTION: Before installing the new crankshaft pulley bolts check the lengths of the threads as shown in the illustration. The new bolts must be 48mm in length.NOTE: Tighten the bolts in a diagonal sequence.
Install and tighten 4 new bolts.
Renew Part: Crankshaft pulley bolts Quantity: 4 .
Torque
Stage 1: 37 Nm
Stage 2: 90°
-
NOTE: Do not insert the bottoming tap more than the depth of the threaded holes (16mm). Apply tape to the bottoming tap 16mm from the end as a visual guide.
- Use a suitable M10 x 1.0 mm tap to clean out the threads illustrated.
- Use a suitable cleaning solution to remove any foreign material from the threads.
-
- Install the drive plate.

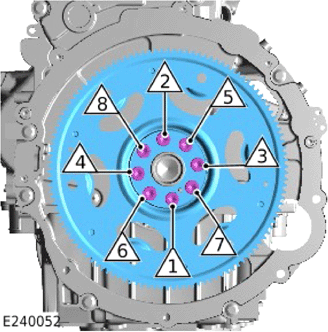

- Install and tighten the 8 new bolts in the sequence illustrated.
Renew Part: Drive plate bolts Quantity: 8 .
Torque
Stage 1: 30 Nm
Stage 2: 120°
Remove the special tool.
Special Tool(s): JLR-303-1659
-
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket.
Renew Part: Engine vent oil separator to valve cover gasket Quantity: 1 .
- Install the engine vent oil separator.

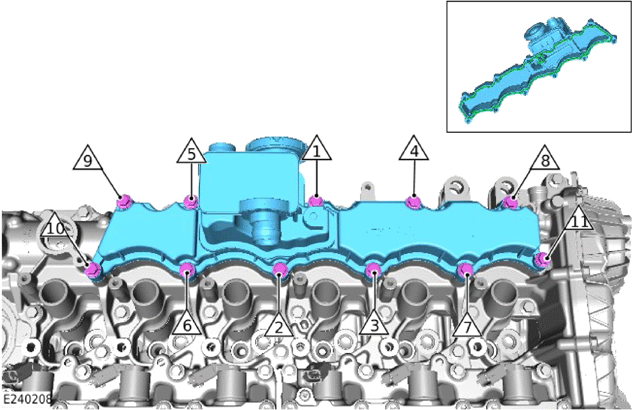

- Tighten the 11 bolts in the torque sequence illustrated.
Torque : 12 Nm
- Install a new gasket.

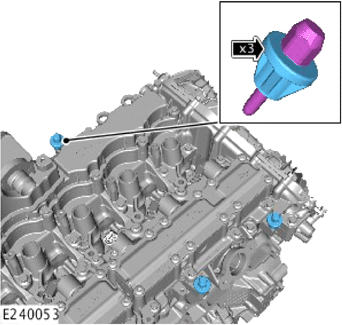

Install and tighten the 3 studs.
Torque : 10 Nm

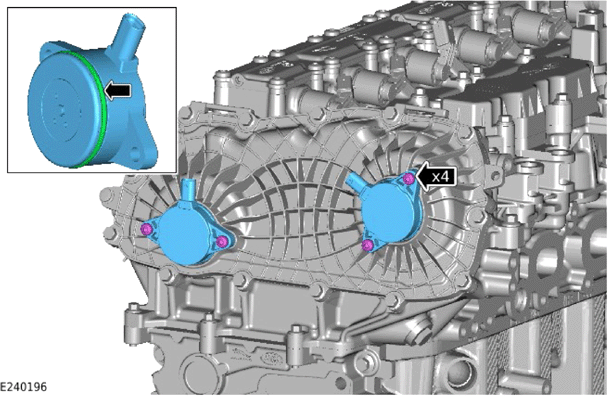

- Inspect the 2 O-ring seals and replace if damaged.
- Lubricate the 2 O-ring seals with clean engine oil.
Refer to: SPECIFICATIONS
- Install the 2 Variable Camshaft Timing (VCT) solenoids.
- Install and tighten the 4 bolts.
Torque : 9 Nm

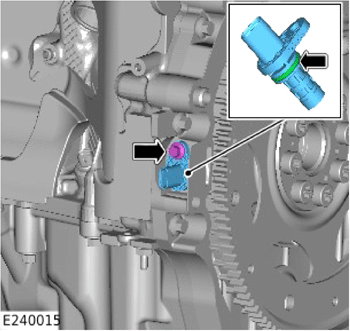

- Inspect the O-ring seal and replace if damaged.
- Lubricate the O-ring seal with clean engine oil.
Refer to: SPECIFICATIONS

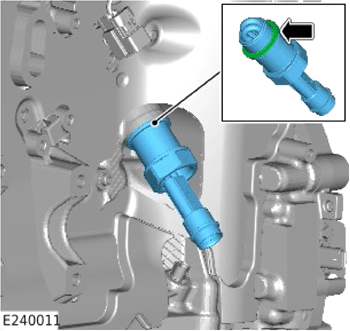

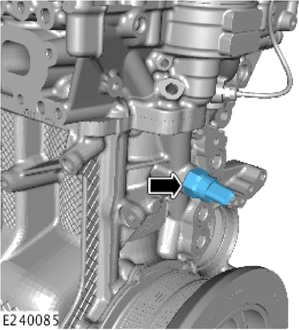

- Install the Crankshaft Position Sensor (CKP) sensor.
- Install and tighten the bolt.
Torque : 8 Nm

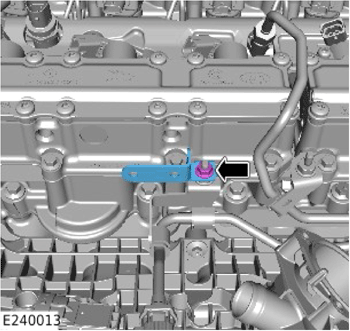

Install and tighten the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
Torque : 18 Nm
- Inspect the O-ring seal and replace if damaged.
- Lubricate the O-ring seal with clean engine oil.
Refer to: SPECIFICATIONS

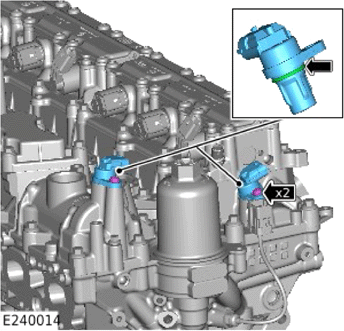

- Install the 2 Camshaft Position Sensor (CMP) sensors.
- Install and tighten the 2 bolts.
Torque : 8 Nm

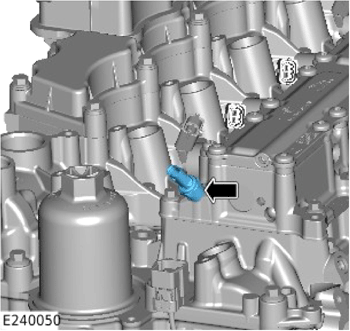

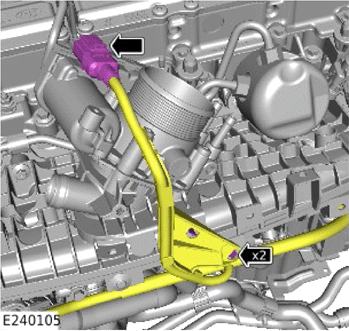

Install and tighten the oil pressure and temperature sensor.
Torque : 15 Nm

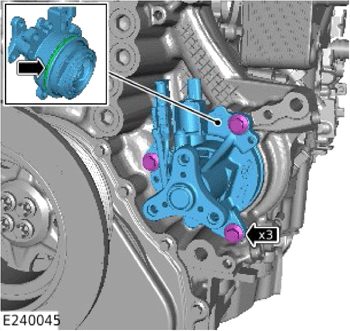

- Install a new O-ring seal.
Renew Part: Engine coolant pump gasket Quantity: 1 .
- Install the coolant pump.
- Install and tighten the 3 new bolts.
Renew Part: Coolant pump bolts Quantity: 3 .
Torque : 25.5 Nm
- Install a new O-ring seal.

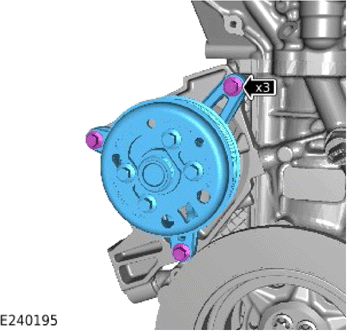

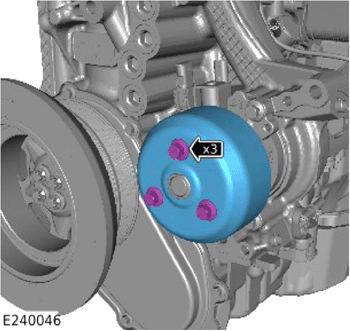

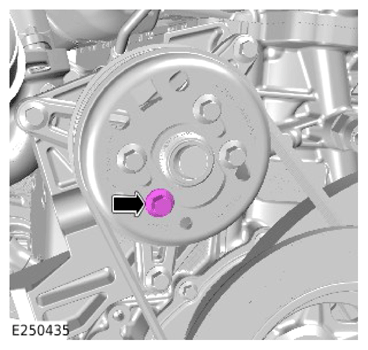

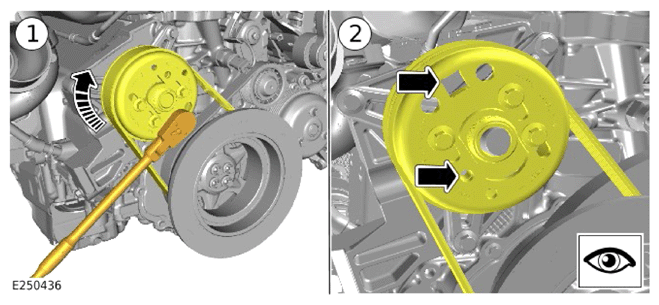

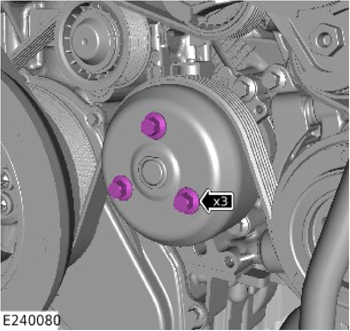

- Install the coolant pump pulley.
- Install but do not fully tighten the 3 bolts.

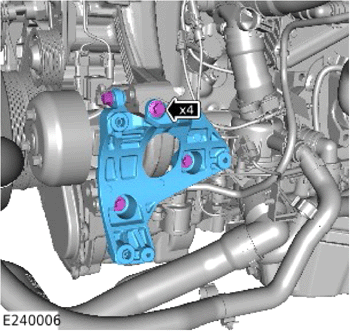

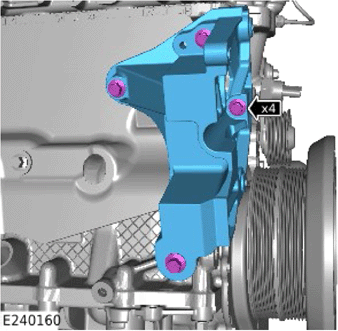

- Install the bracket.
- Install and tighten the 4 bolts.
Torque : 25 Nm

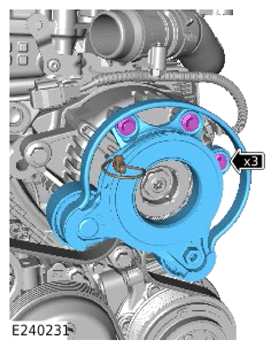

- Install the viscous cooling fan drive pulley.
- Install and tighten the 3 bolts.
Torque : 25 Nm

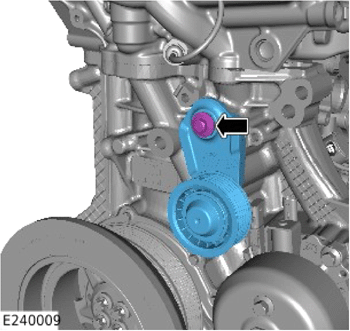

- Install the idler pulley.
- Install and tighten the bolt.
Torque : 25 Nm
- Inspect the 2 O-ring seals and replace if damaged.

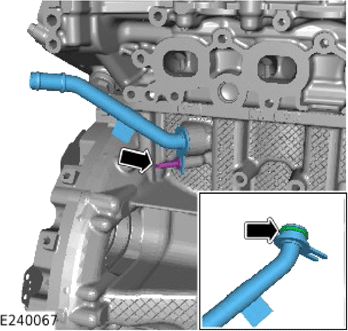

- Install the coolant pipe.
- Install and tighten the 2 bolts.
Torque : 11.5 Nm
- Install the new spacer washer.
- Install the new O-ring seal.
Renew Part: Fuel Injector replacement kits Quantity: 6 .
Install the special tool to the fuel injector with the 'T' symbol towards the top of the fuel injector as illustrated.
Special Tool(s): JLR-310-257
Use the special tool to install the new Teflon™ seal to the fuel injector.
Special Tool(s): 310-198
- Wait 2 minutes to allow the Teflon™ seal to recover its shape.
- Remove the special tool.
Special Tool(s): JLR-310-257
- Make sure the Teflon™ seal is correctly installed.
- Remove the special tool.
Install the new fuel injector spring clamp.
- Repeat steps 25- 30 for the remaining 5 fuel injectors.

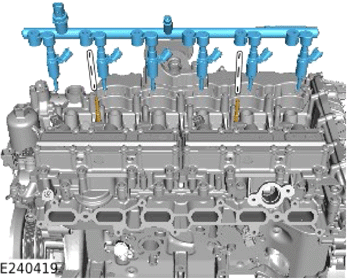

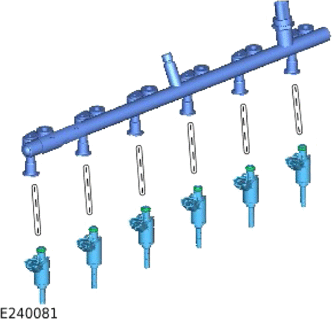

Install the 6 fuel injectors into the fuel rail.
Make sure the fuel injectors are correctly installed.
Make sure the fuel injectors are correctly installed.

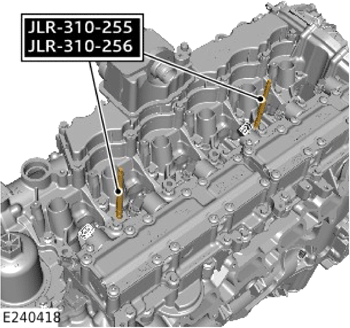

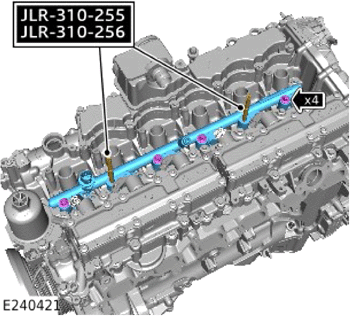

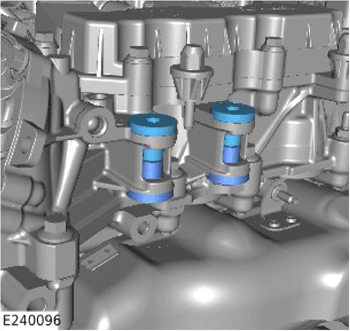

Install the appropriate special tools. If a new cylinder head has not been installed then the special tool JLR- 310-255 with the threaded section must be used. If a new cylinder head has been installed then the special tool JLR-310-256 without the threaded section must be used.
Special Tool(s): JLR-310-255 , JLR-310-256
Install the fuel rail and injector assembly allowing guide pins to control position.
-
NOTE: Tighten each of the bolts 1 turn at a time until the fuel rail is fully installed.
- Install and tighten the 4 bolts.
Renew Part: Fuel rail bolt(s) Quantity: 4 .
Torque : 15 Nm
- Remove the special tools.
Special Tool(s): JLR-310-255 , JLR-310-256
- Install and tighten the 4 bolts.
-
NOTE: Tighten each of the bolts 1 turn at a time until the fuel rail is fully installed.

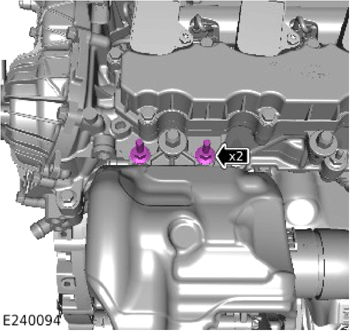

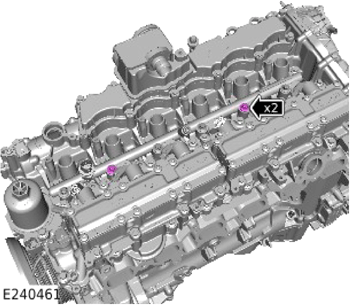

Install and tighten the 2 bolts.
Renew Part: Fuel rail bolt(s) Quantity: 2 .
Torque : 15 Nm
-
NOTE: Tighten each of the bolts 1 turn at a time until the fuel rail is fully installed.

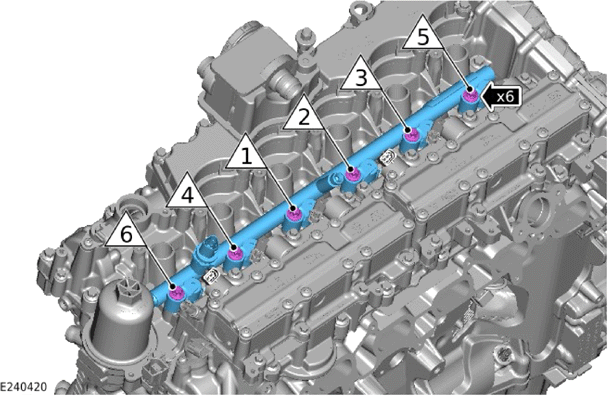

Tighten the 6 bolts in the sequence illustrated.
Torque : 30 Nm

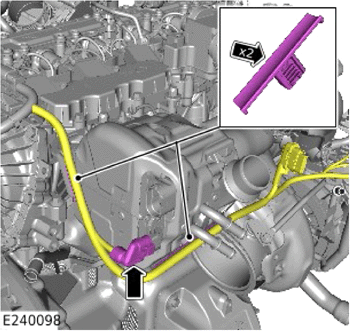

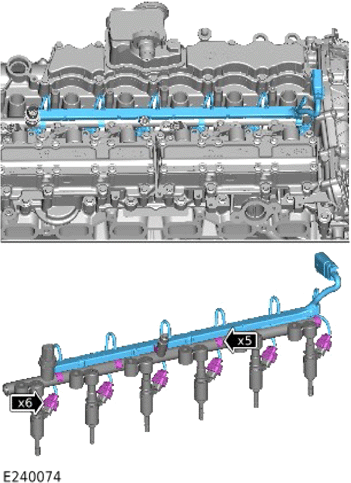

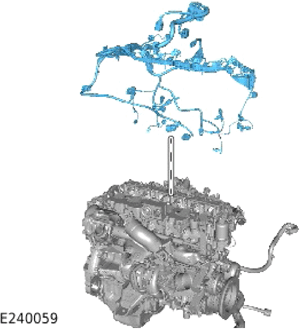

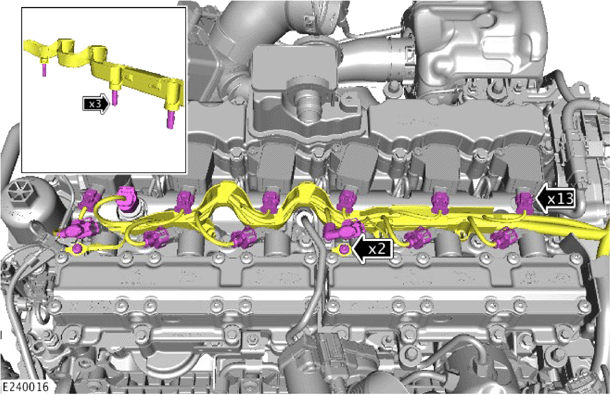

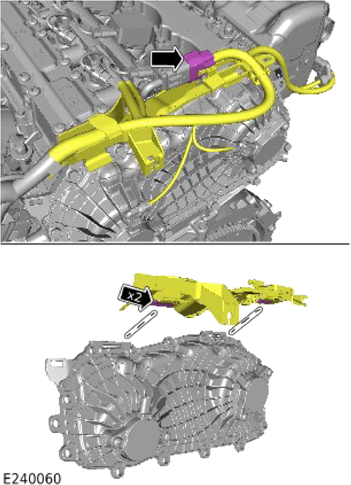

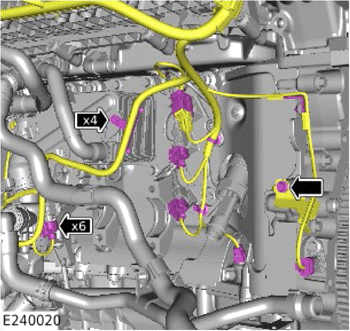

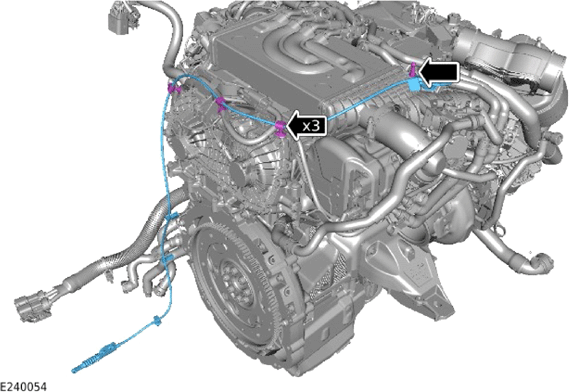

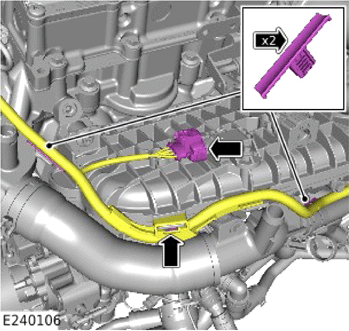

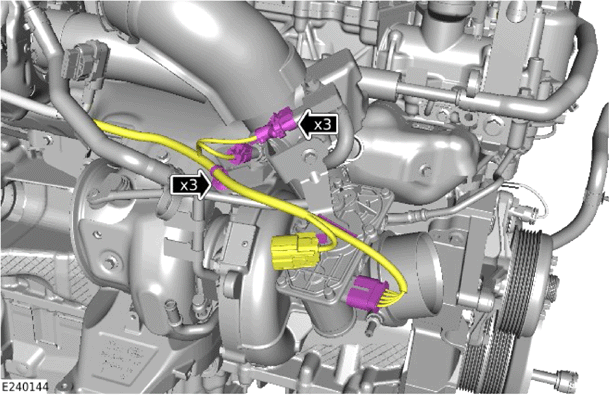

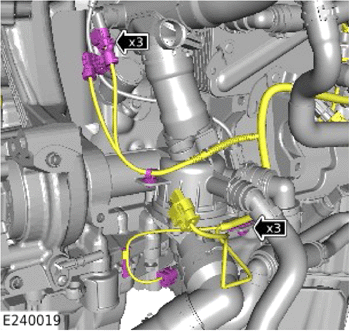

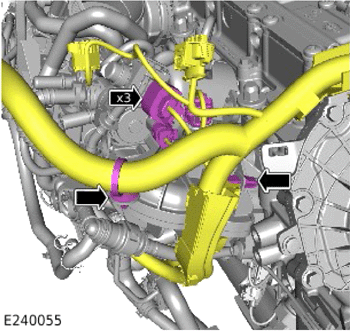

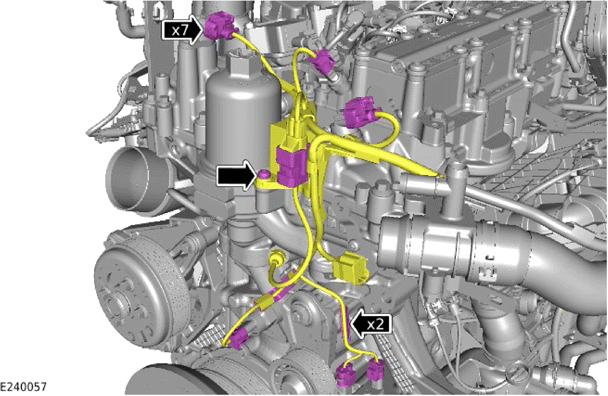

- Install the wiring harness.
- Connect the 6 electrical connectors.
- Install the 5 clips.

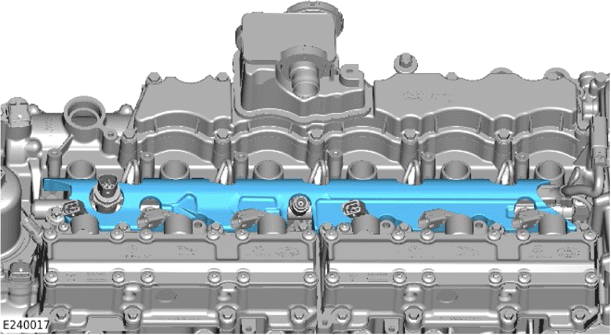

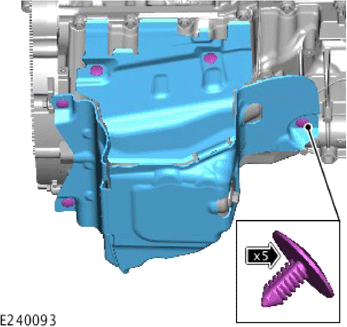

Install the Noise, Vibration and Harshness (NVH) material.
-
WARNING:
- Make sure that the spark plug ceramic insulator and terminal pin are wiped/cleaned dry using a soft clean cloth.
- Make sure that the ignition coil-on-plug rubber boot is pushed down fully over the spark plug ceramic insulator. Double check by installing the ignition coil-on-plug as usual and then pushing on the ignition coil-on-plug head gently for a second time to make sure that the ignition coil-on-plug rubber boot has seated correctly over the spark plug insulator.

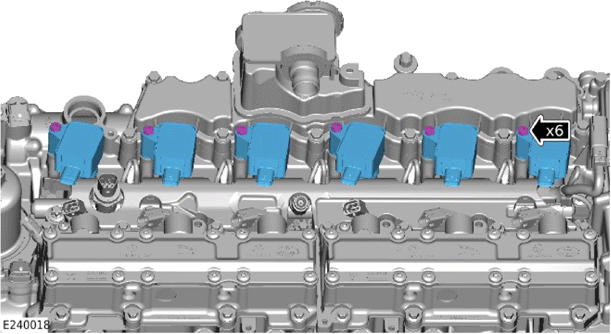

- Install the 6 ignition coils.
- Install and tighten the 6 bolts.
Torque : 8 Nm

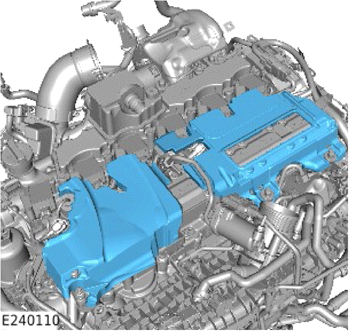

- Install the NVH material.
- Install the 5 clips.
- Inspect the O-ring seal, replace if damaged.

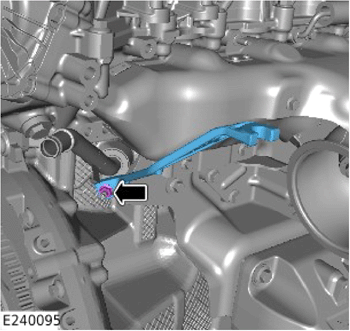

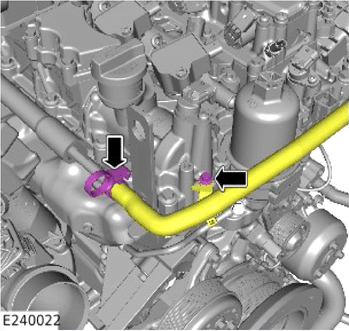

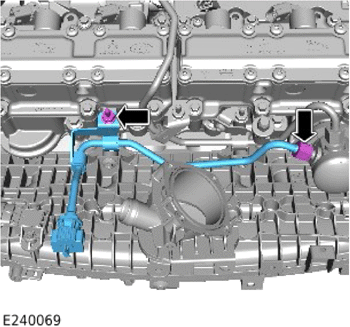

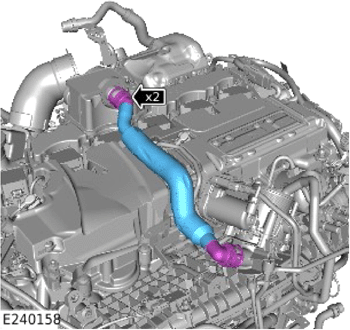

- Install the coolant pipe.
- Install and tighten the bolt.
Torque : 11.5 Nm

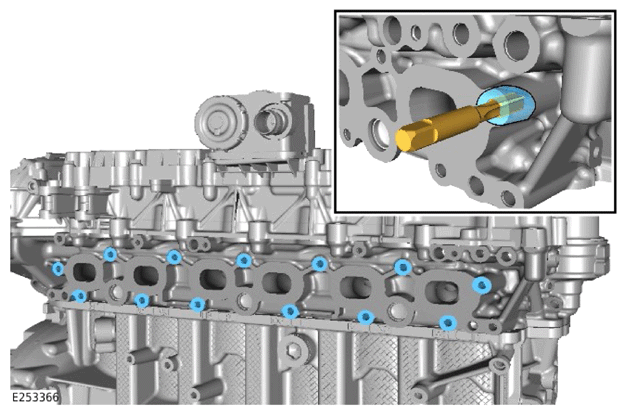

Use an M8 x 1.25 bottoming tap to clean the threads.

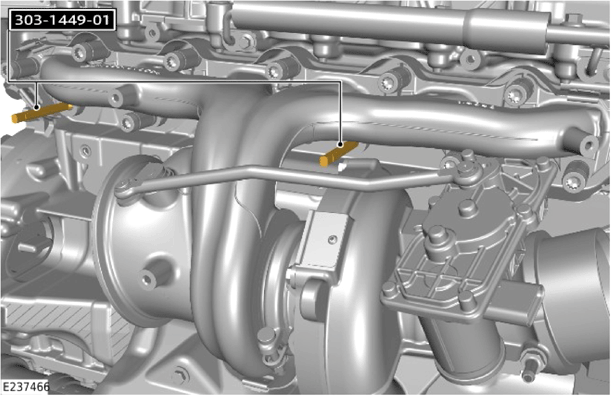

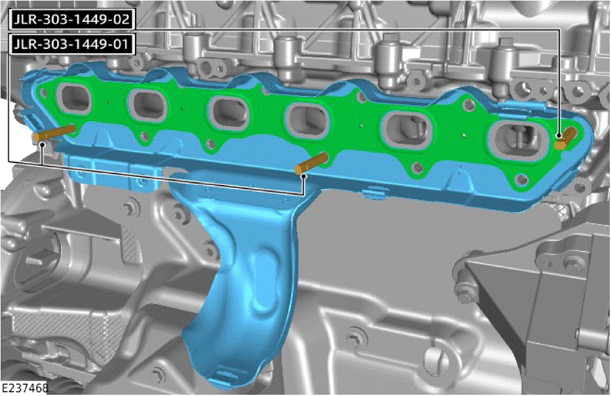

Install the appropriate special tools. If a new cylinder head has not been installed then the special tool JLR-303-1449-01 with the threaded section must be used. If a new cylinder head has been installed then the special tool JLR-303-1449-02 without the threaded section must be used.
Special Tool(s): 303-1449-01 , 303-1449-02
Renew Part: Exhaust manifold gasket Quantity: 1 .
-

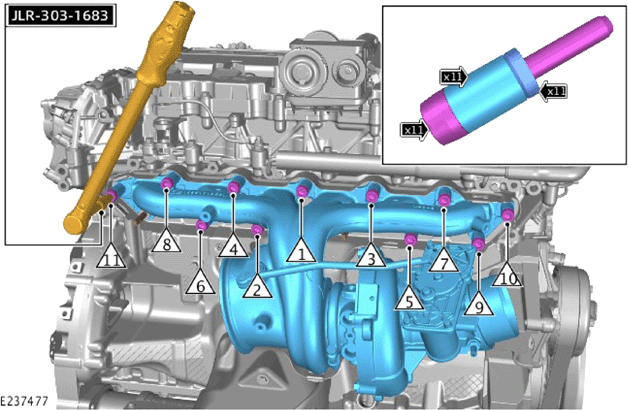

- Install the turbocharger.
- Use the special tool to install and tighten the 11 new bolts, spacers and washers in the sequence illustrated.
Special Tool(s): JLR-303-1683
Renew Part: Exhaust manifold bolts Quantity: 11 .
Torque : 8 Nm
Remove the special tools.
Special Tool(s): 303-1449-01 , 303-1449-02

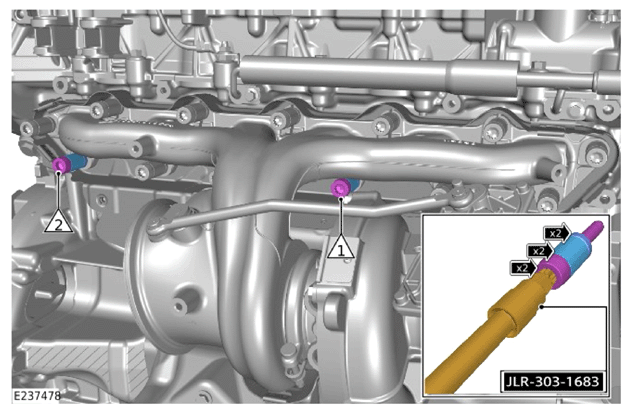

Use the special tool to install and tighten the 2 new bolts, spacers and washers in the sequence illustrated.
Special Tool(s): JLR-303-1683
Renew Part: Exhaust manifold bolts Quantity: 2 .
Torque : 8 Nm
-
CAUTION: When fully tightened, allow 4 hours for the thread locking compound to cure. Do not start the engine within 4 hours of completing this step.

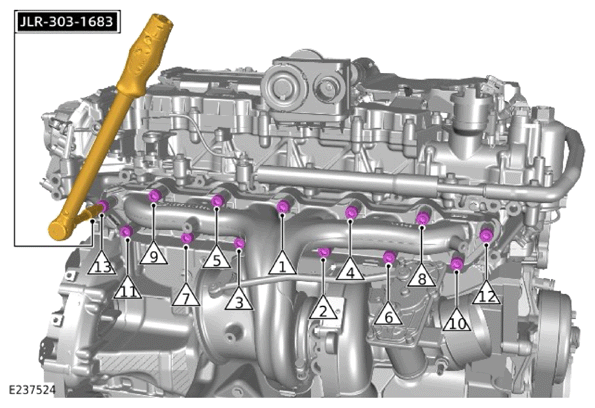

Use the special tool to tighten the 13 bolts in the sequence illustrated.
Special Tool(s): JLR-303-1683
Torque
Stage 1: 8 Nm
Stage 2: 12 Nm
Stage 3: 15 Nm
Stage 4: 135°
Stage 5: 24 Nm
-
- Install the bracket.

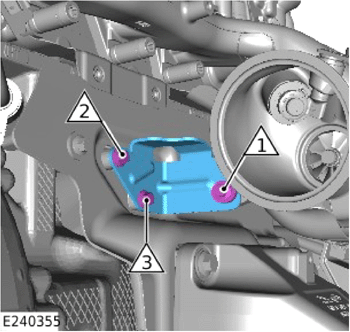

- Install and tighten the 3 bolts in the sequence illustrated.
Torque
Stage 1: 11.5 Nm
Stage 2: 25 Nm

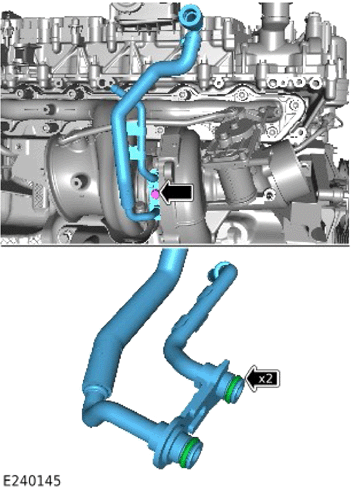

- Install 2 new O-ring seals.
Renew Part: Turbocharger coolant pipe O-ring seal Quantity: 2 .

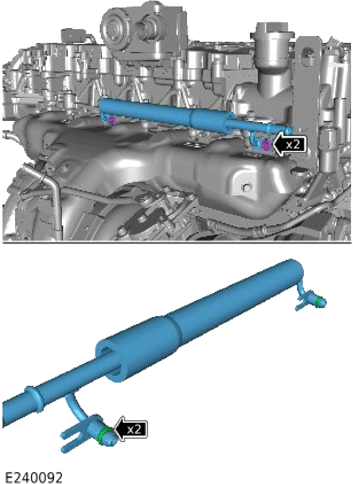

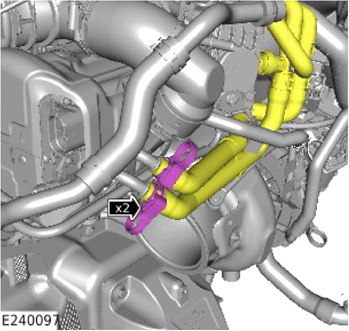

- Install the 2 coolant pipes.
- Install and tighten the bolt.
Torque : 11.5 Nm

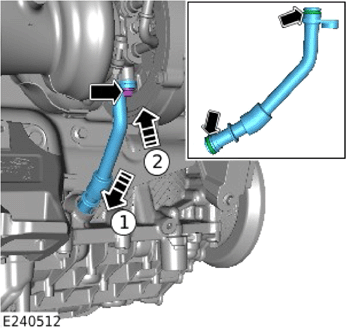

- Install 2 new O-ring seals.
- Install the 2 new O-ring seals.
Renew Part: Turbocharger oil return pipe seals Quantity: 2 .
- Lubricate the 2 O-ring seals with clean engine oil.
Refer to: SPECIFICATIONS
- Install the pipe.
- Install and tighten the bolt.
Torque : 10.5 Nm
- Install the 2 new O-ring seals.

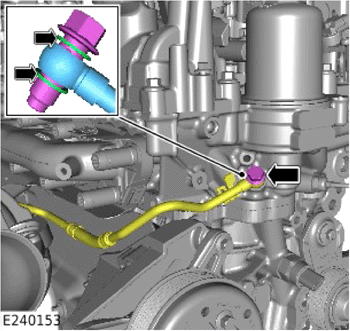

- Install 2 new sealing washers.
Renew Part: Oil supply pipe sealing washers Quantity: 2 .
- Install and tighten the banjo bolt.
Torque : 18 Nm
- Install 2 new sealing washers.

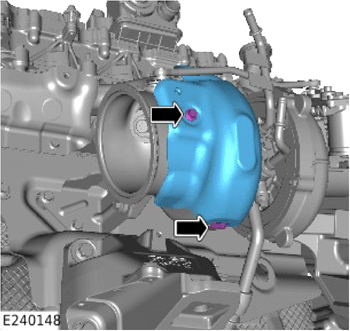

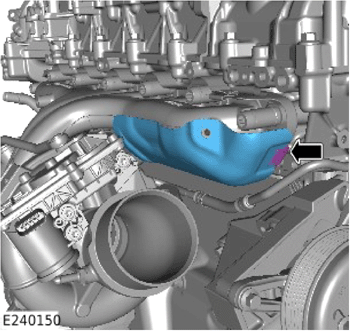

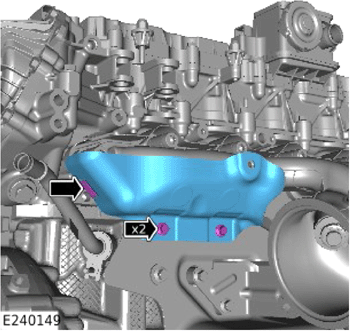

Install the heatshield.
- Install the heatshield.
- Install and tighten the 2 bolts.
Torque : 9 Nm
- Install the heatshield.
- Install and tighten the bolt.
Torque : 9 Nm

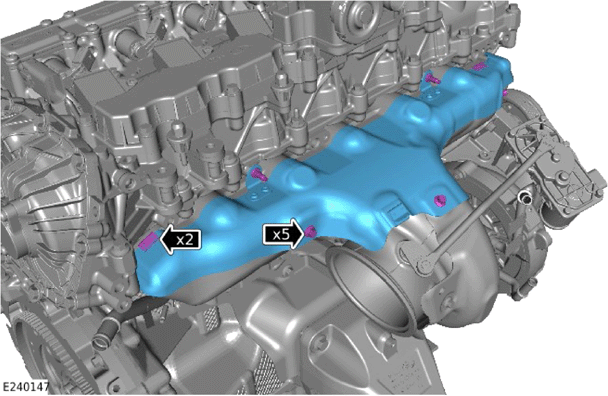

- Install the heatshield.
- Install and tighten the 5 bolts.
Torque
M6 x 14 mm: 6.5 Nm
M6 x 18 mm: 9 Nm

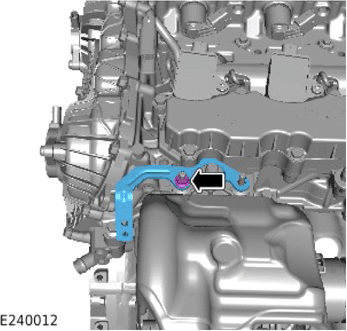

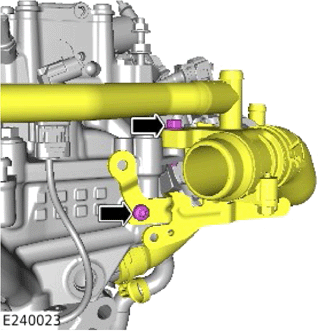

- Install the bracket.
- Install, but do not fully tighten the nut.
Install the 4 supercharger mounting rubbers.

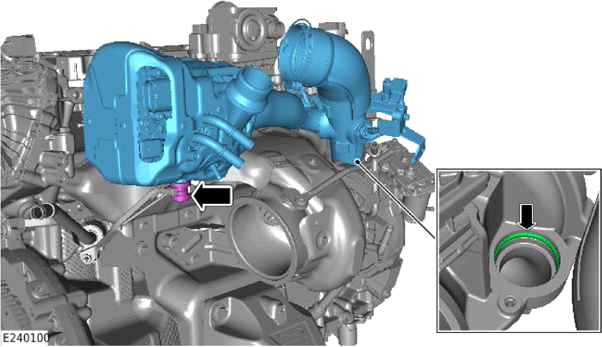

- Inspect the O-ring seal and replace if damaged.
- Install the supercharger assembly.
Install and tighten the 2 bolts.
Torque : 25 Nm
Fully tighten the nut.
Torque : 11.5 Nm
Install and tighten the 2 bolts.
Torque : 11.5 Nm
- Install the bracket.
- Install and tighten the nut.
Torque : 11.5 Nm
- Install the ground cable.
- Install and tighten the 2 nuts.
Torque : 11.5 Nm
-
NOTE: If equipped.
- Install a new gasket.
Renew Part: Engine block heater manifold seal(s) Quantity: 1 .
- Install and tighten the block heater.
Torque : 50 Nm
- Install a new gasket.

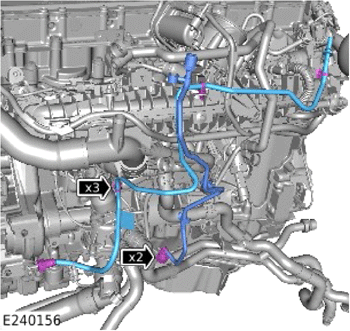

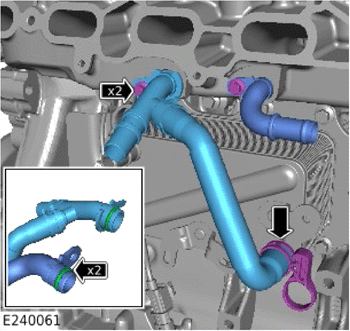

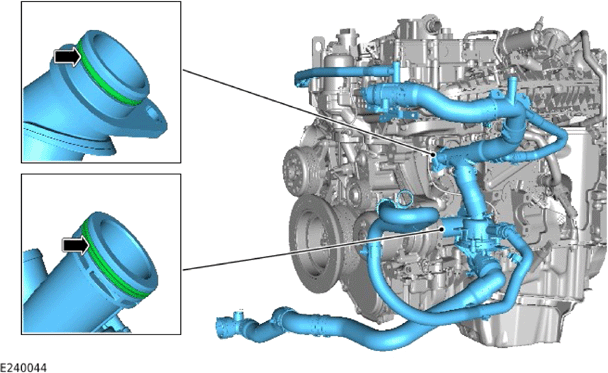

- Inspect the 2 O-ring seals and replace if damaged.

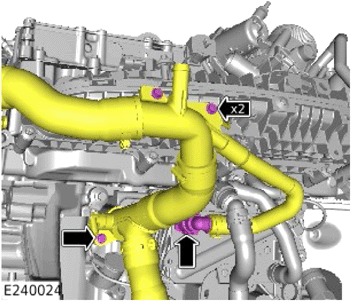

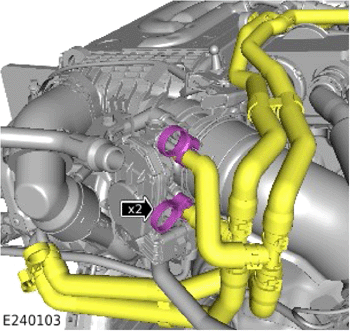

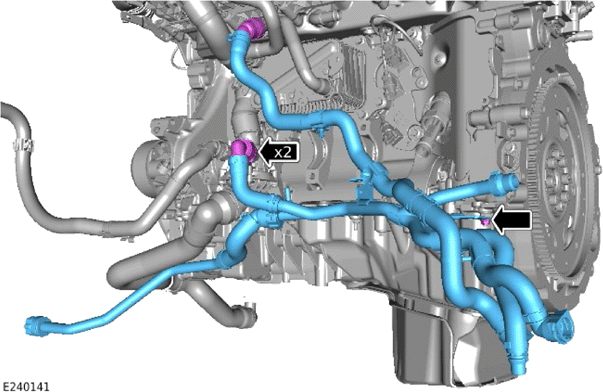

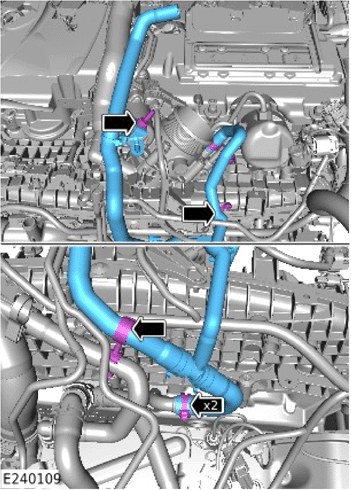

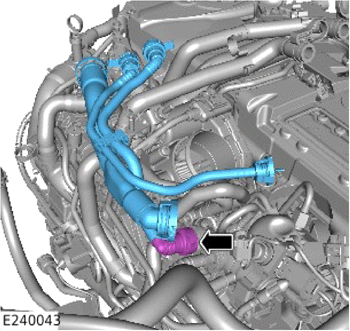

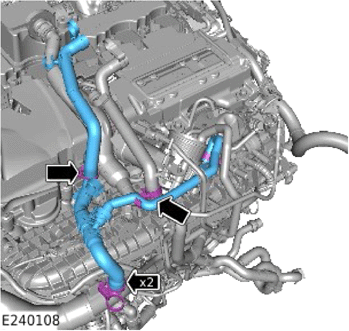

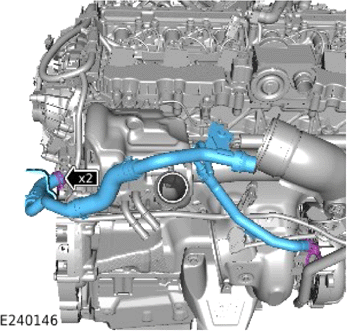

- Install the 2 coolant pipes.
- Install and tighten the 2 bolts.
Torque : 11.5 Nm
-
NOTE: The bolts will remain captive.

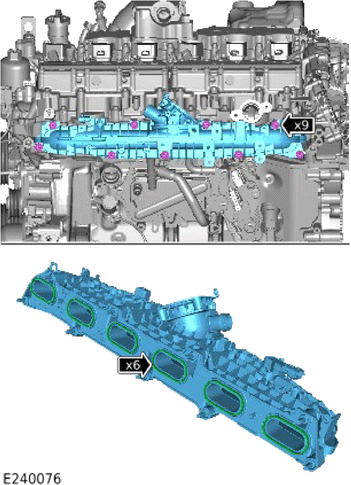

- Install 6 new O-ring seals.
Renew Part: Intake manifold seals Quantity: 6 .
- Install the intake manifold.
- Install, but do not fully tighten the 9 bolts.
- Install 6 new O-ring seals.
-

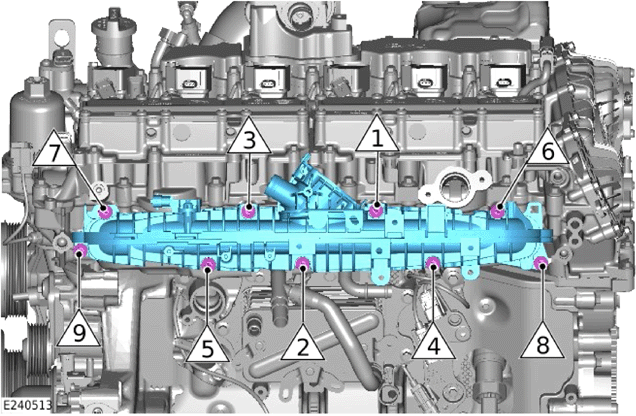

Tighten the 9 bolts in the sequence illustrated.
Torque : 11.5 Nm

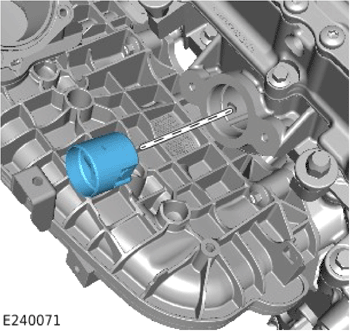

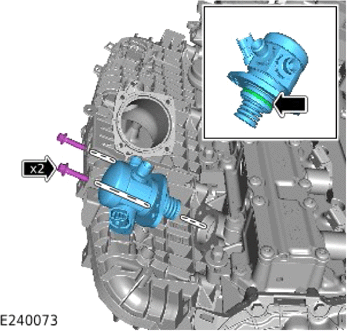

Install the High Pressure (HP) fuel pump Camshaft follower.
-
NOTE: Tighten each of the bolts a half turn at a time until the fuel pump is fully installed.
- Install a new O-ring seal.
Renew Part: Fuel pump O-ring seal Quantity: 1 .
- Lubricate the O-ring seal with clean engine oil.
Refer to: SPECIFICATIONS

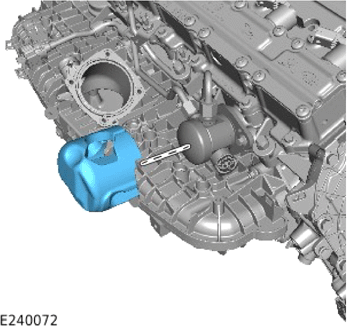

- Install the HP fuel pump.
- Install and tighten the 2 bolts.
Renew Part: Fuel Injection Pump retaining bolts Quantity: 2 .
Torque : 14.5 Nm
- Install a new O-ring seal.
-
CAUTION: Fuel lines may only be reused one time. After final tightening, clean the fuel line and apply a paint mark to identify reuse. If the fuel line is already paint marked, a new fuel line must be installed.

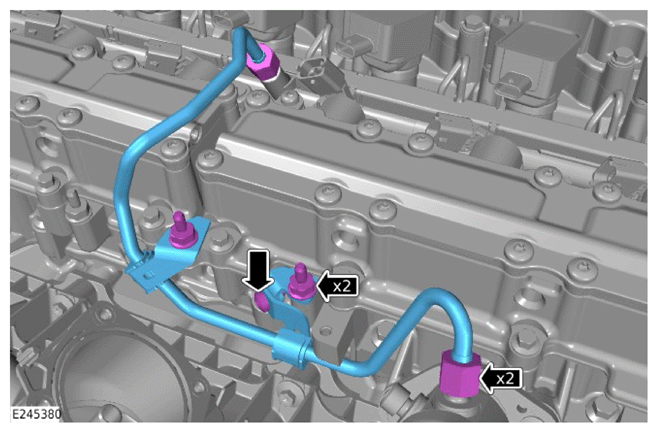

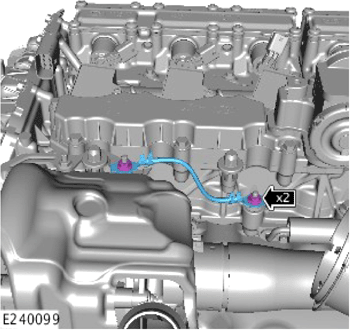

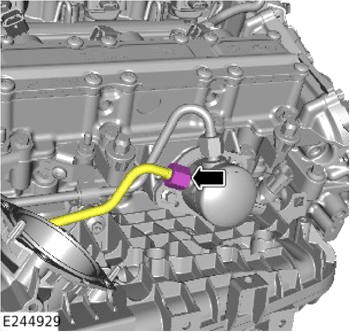

- Install the HP fuel line.
- Finger tighten the 2 unions.
- Tighten the 2 unions.
Torque : 20 Nm
- Install and tighten the 2 M6 Hex stud bolts.
Torque : 11.5 Nm
- Fully loosen the 2 fuel line unions.
- Finger tighten the 2 unions.
- Tighten the 2 fuel line unions.
Torque : 20 Nm
- Wait for 30 seconds and recheck the final torque.
- Install and tighten the M6 Torx bolt.
Torque : 11.5 Nm
-
CAUTION: Fuel lines may be used a maximum of 4 times, paint mark fuel line after each full tightening sequence.
- Install the Low Pressure (LP) fuel line.
- Finger tighten the union.
- Install and tighten the bolt.
Torque : 11.5 Nm
- Tighten the union.
Torque : 20 Nm
- Wait 10 seconds.
- Loosen the union.
Torque : 1 turn(s)
- Tighten the union.
Torque : 20 Nm
- Wait 10 seconds.
- Tighten the union.
Torque : 20 Nm
- Tighten the union.
Install the NVH material.
- Install the bracket.
- Install and tighten the nut.
Torque : 11.5 Nm
- Install a new O-ring seal.
Renew Part: Throttle body to intake manifold seal Quantity: 1 .
- Install the throttle body.
- Install, but do not fully tighten the 4 bolts.
- Install a new O-ring seal.
-
Tighten the 4 bolts in the sequence illustrated.
Torque : 11.5 Nm

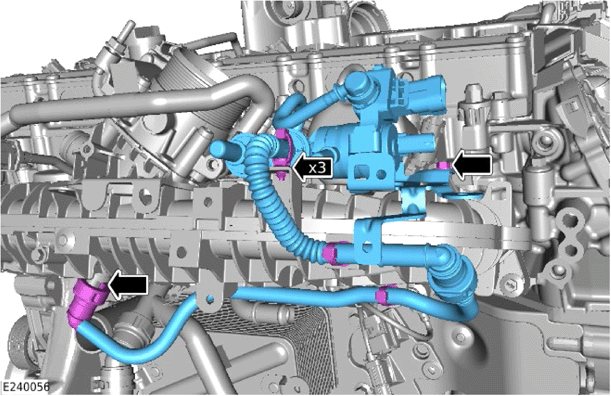

- Install the purge valve assembly.
- Connect the breather pipe.
- Install the 3 clips.
- Install and tighten the bolt.
Torque : 7 Nm
-

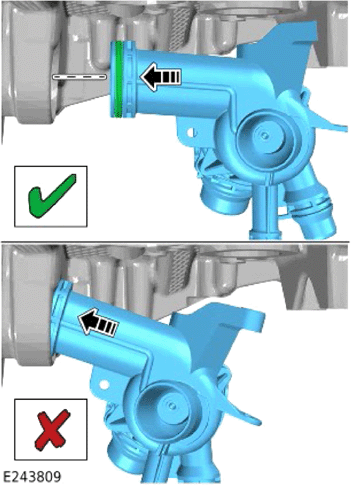

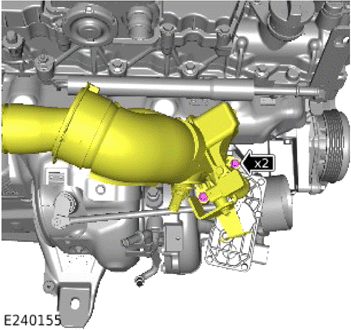

CAUTION: Failure to follow this instruction could cause damage to the thermostat housing.
Make sure the thermostat housing is installed correctly as illustrated.

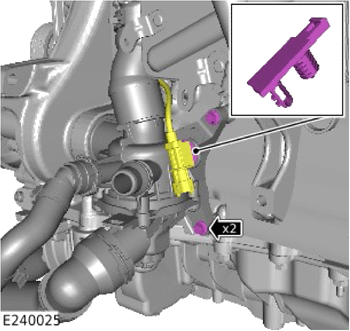

- Inspect the 2 O-ring seals and replace if damaged.
- Install the coolant hose assembly.
- Install and tighten the 2 bolts.
Torque : 11.5 Nm
- Install the clip.
- Install and tighten the 2 bolts.
- Connect the coolant hose.
- Install and tighten the 3 bolts.
Torque
M6 x 25 mm: 11.5 Nm
M6 x 20 mm: 7 Nm
Install and tighten the 2 bolts.
Torque : 11.5 Nm
- Connect the coolant hose.
- Install the clip.
- Install and tighten the bolt.
Torque : 11.5 Nm
- Install the coolant hose assembly.
- Install and tighten the nut.
Torque : 11.5 Nm
- Connect the 2 coolant hoses.

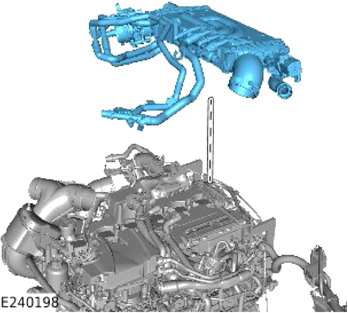

Install the wiring harness.
- Connect the electrical connector.
- Install the 2 clips.
- Connect the 3 electrical connectors.
- Install the 3 clips.
- Connect the electrical connector.
- Install the 2 clips.
- Connect the electrical connector.
- Install the 3 clips.
- Connect the 7 electrical connectors.
- Install the 2 clips.
- Install and tighten the bolt.
Torque : 10 Nm
- Connect the electrical connector.
- Install the 2 clips.
- Connect the 3 electrical connectors.
- Install the 2 clips.
- Connect the 6 electrical connectors.
- Install the 4 clips.
- Install and tighten the bolt.
Torque : 11.5 Nm
- Connect the 3 electrical connectors.
- Install the 3 clips.
- Connect the 13 electrical connectors.
- Install the 3 clips.
- Install and tighten the 2 bolts.
Torque : 10 Nm
- Install the bracket.
- Install and tighten the 4 bolts.
Torque : 25 Nm

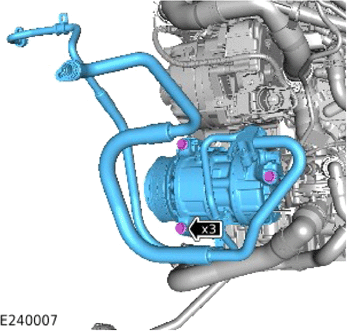

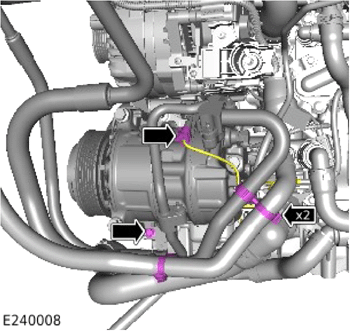

- Install the Air Conditioning (A/C) compressor.
- Install and tighten the 3 bolts.
Torque : 25 Nm
- Connect the electrical connector.
- Install the 2 clips.
- Install and tighten the bolt.
Torque : 10 Nm

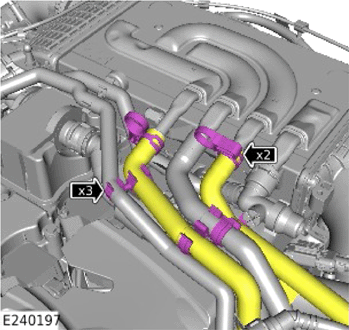

- Install the coolant hose assembly.
- Connect the 2 coolant hoses.
- Install the 2 clips.
- Install the vacuum pipe.
- Install the 3 clips.
- Connect the vacuum pipe.
- Install the coolant pipe.
- Connect the coolant pipe.

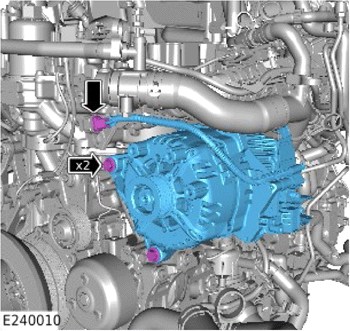

- Install the Belt Integrated Starter Generator Belt Integrated Starter Generator (BISG).
- Install and tighten the 2 bolts.
Torque : 47.5 Nm
- Connect the electrical connector.

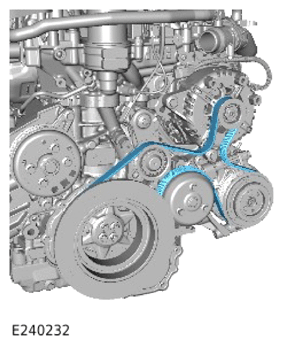

Install the accessory drive belt.
- Install the accessory drive belt tensioner.
- Install and tighten the 3 bolts.
Torque : 25 Nm
- Use a suitable tool to release the accessory drive belt tension as illustrated.
- Remove the special tool.
Special Tool(s): JLR-303-1669
- Tension the accessory drive belt.
Tighten the 3 bolts.
Torque : 25 Nm
-
NOTE: Make sure the pulley is in the position illustrated before removing the belt.

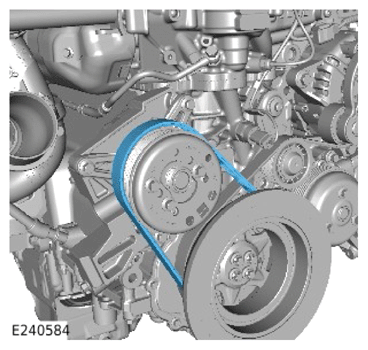

Install the viscous cooling fan drive belt.
-
NOTE:
- During the rotation of the pulley, expect the pulley to snap down into position.
- If the pulley does not snap down into the correct position, loosen the bolts half a turn.
Use a suitable tool to rotate the pulley to the position illustrated.
Install the illustrated bolt finger tight.
- Use the special tool to prevent the pulley from rotating when tightening the 4 bolts.
Special Tool(s): JLR-303-1667
- Fully tighten the 4 bolts.
Torque : 25 Nm
- Use the special tool to prevent the pulley from rotating when tightening the 4 bolts.
-
CAUTION: This step must be completed, failure to complete this step may result in damage to the viscous cooling fan bracket.
- Measure the gap between the viscous cooling fan pulley and the viscous cooling fan bracket.
- If the gap is 0.15 mm or less, continue to step 6.
- If the gap is greater than 0.15 mm, re-adjust the viscous cooling fan belt.
Install the NVH material.
Install the breather pipe.
- Install the coolant hose assembly.
- Connect the 2 coolant hoses.
- Install the 2 clips.
- Install and tighten the bolt.
Torque : 11.5 Nm
- Install the coolant hose assembly.
- Connect the 2 coolant hoses.
- Install the 2 clips.
Install the breather pipe assembly.
Install the charge air cooler assembly.
- Connect the 2 coolant hoses.
- Install the 3 clips.
Connect the 2 coolant hoses.
Connect the 2 coolant hoses.
- Install the Emergency Park Release (EPR) cable.
- Install and tighten the bolt.
Torque : 7 Nm
- Install the 3 clips.
- Install the engine assembly.
Refer to: ENGINE ASSEMBLY REMOVE FOR ACCESS
- Connect the 12 V system.
Refer to: SPECIFICATIONS
