Electronic Engine Controls - V8 S/C 5.0L Petrol (G2796672): Specifications

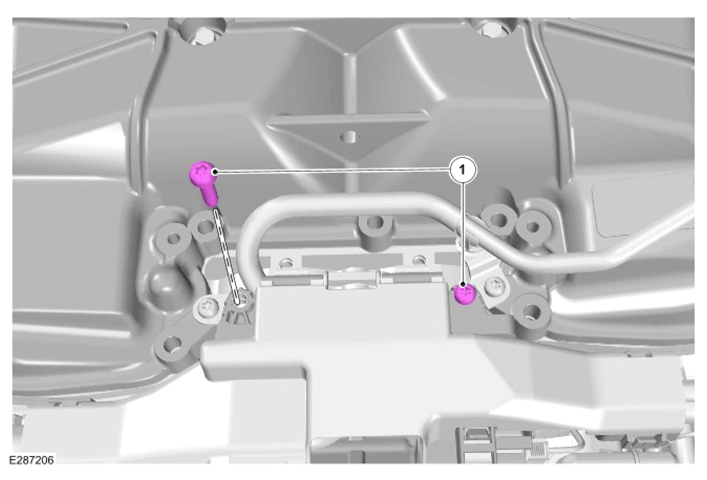

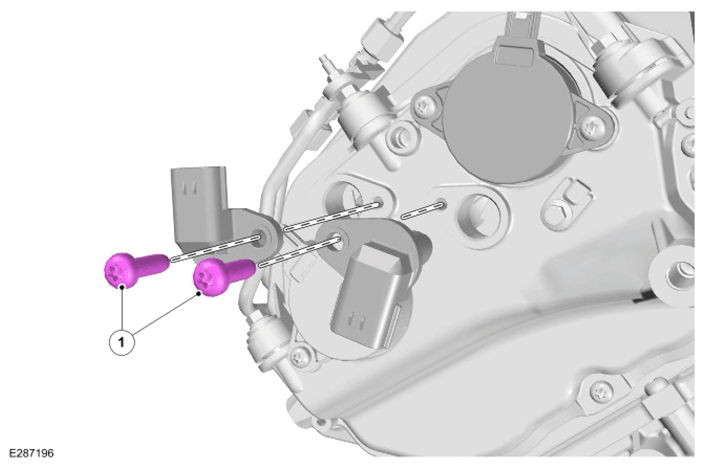

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Right Camshaft Position Sensor (CMP) bolts	10	7	-

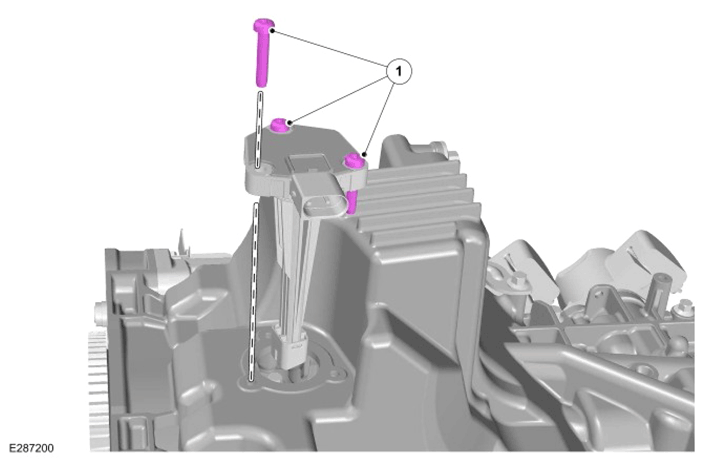

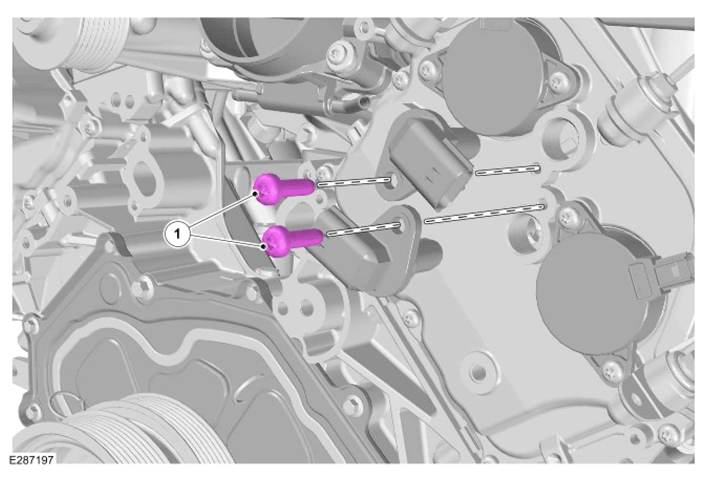

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Left CMP  bolts	10	7	-

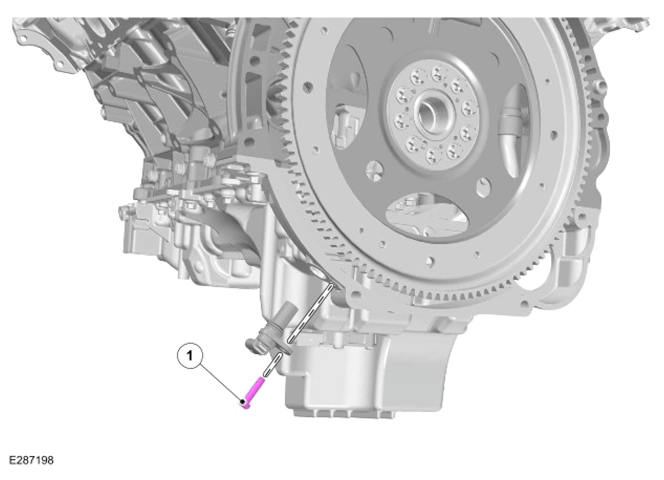

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Crankshaft Position Sensor (CKP) bolt	10	7	-

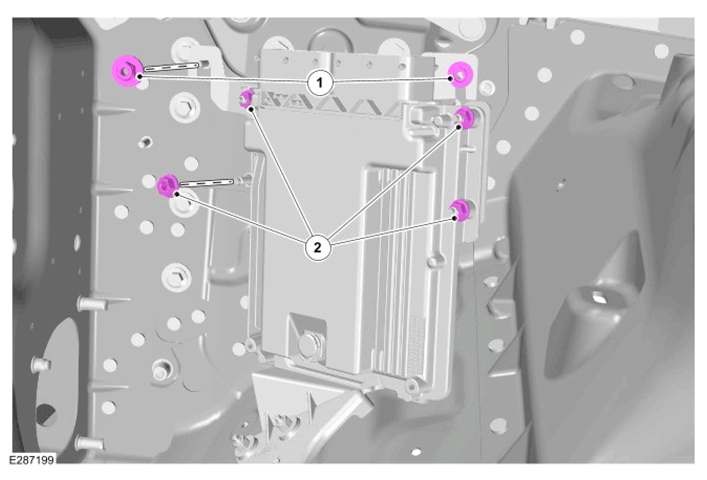

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Powertrain Control Module (PCM) bracket to body nuts	9	-	80
2	PCM  to bracket nuts	7	-	62

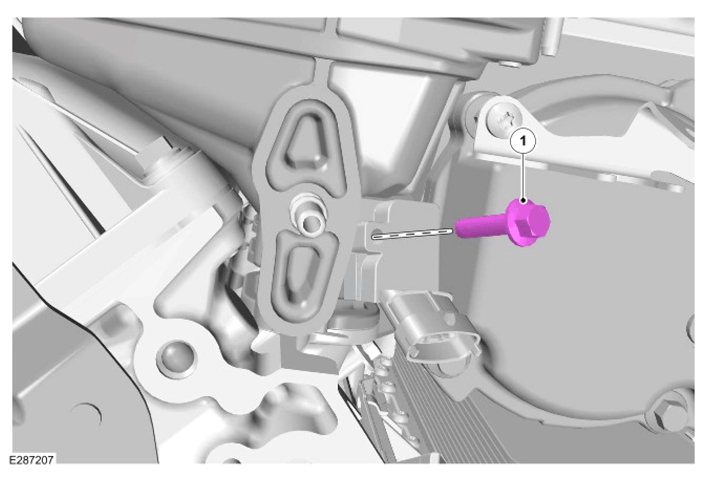

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Engine oil level sensor bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

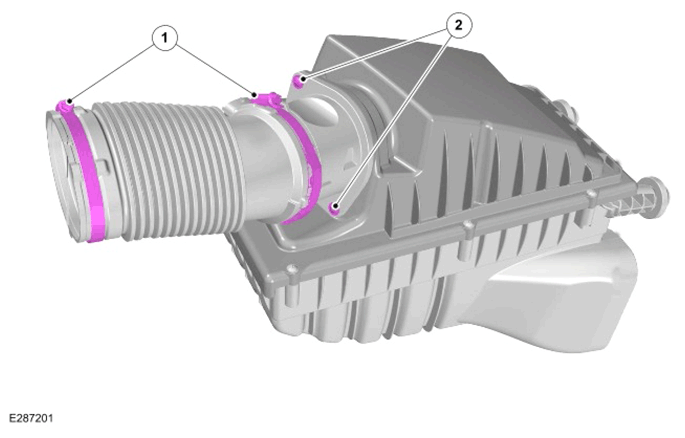

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Air cleaner housing outlet pipe clamps	3.5	-	31
2	Mass Air Flow and Temperature (MAFT) sensor screws	5	-	44

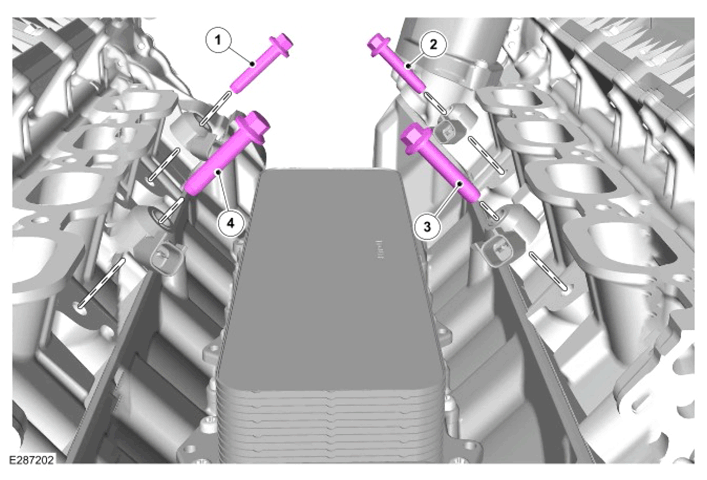

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Front left knock sensor bolt	20	15	-
2	Front right knock sensor bolt	20	15	-
3	Rear right knock senor bolt	20	15	-
4	Rear left knock sensor bolt	20	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Left differential pressure sensor bracket bolt	9	-	80
2	Left differential pressure senor bracket nuts	9	-	80
3	Left differential pressure senor banjo bolt	50	37	-

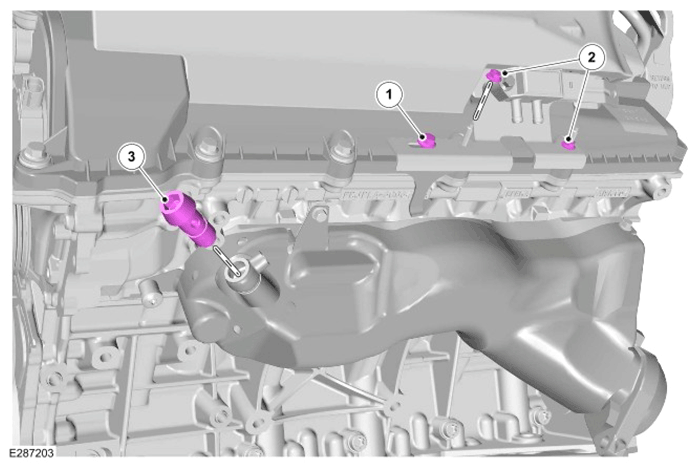

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Right differential pressure sensor bracket bolt	9	-	80
2	Right differential pressure senor banjo bolt	50	37	-
3	Right differential pressure senor bracket nuts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Right pre catalyst Heated Oxygen Sensor (HO2S)	48	35	-
2	Right mid catalyst HO2S	48	35	-
3	Right post catalyst HO2S	48	35	-
4	Left post catalyst HO2S	48	35	-
5	Left mid catalyst HO2S	48	35	-
6	Left pre catalyst HO2S	48	35	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Wiring harness bracket bolts	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Manifold Absolute Pressure and Temperature sensor (MAPT) bolt	5	-	44

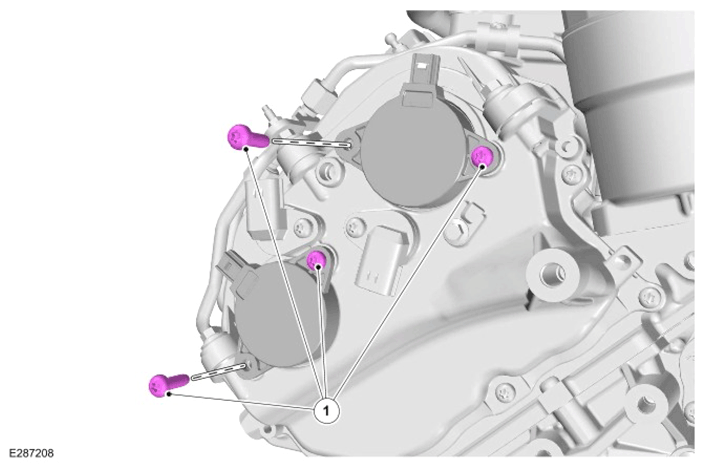

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Right Variable Camshaft Timing (VCT) solenoid bolts	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Left VCT  solenoid bolts	10	7	-
