Right Camshaft Position Sensor (G2796675): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: The ignition must be set to the OFF position before completing the following procedure.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the air cleaner outlet pipe t-connector.
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR

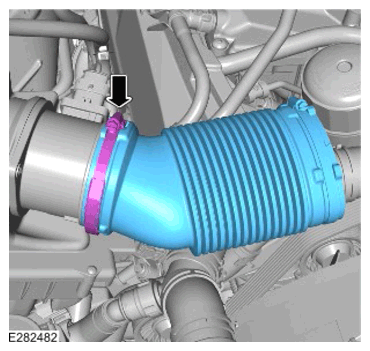

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clamp.
- Remove the clean air duct.
CAUTION: Be prepared to collect escaping coolant.

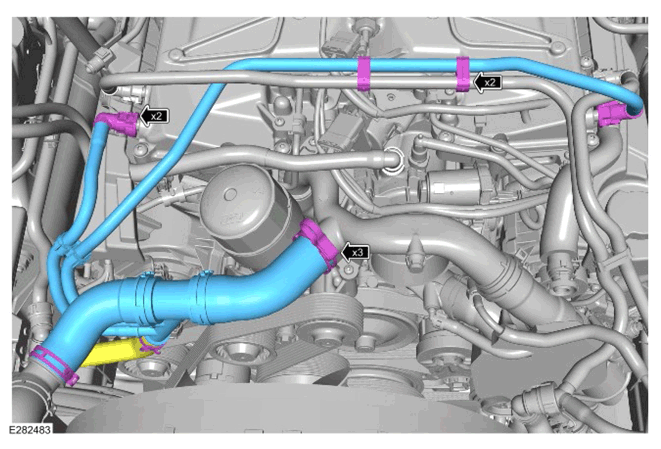

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 3 clamps.
- Disconnect the coolant lower hose from the coolant hose assembly.
- Release the 2 clips.
- Disconnect the 2 coolant pipes from both sides of the charge air cooler.
- Remove the coolant hose assembly.

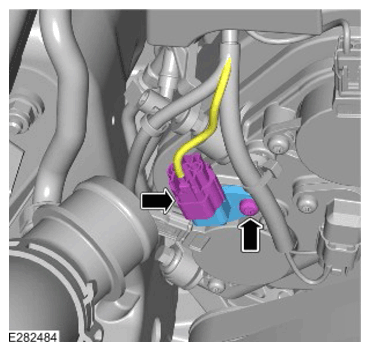

NOTE: Illustration shows the exhaust Camshaft Position Sensor (CMP).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the CMP .
- Remove the bolt.
- Remove the CMP .

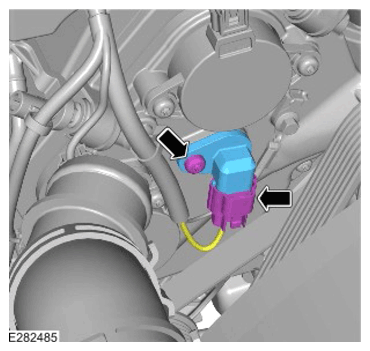

NOTE: Illustration shows the intake CMP .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the CMP .
- Remove the bolt.
- Remove the CMP .
