Engine Oil Level Sensor (G2796679): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material.
The ignition must be set to the OFF position before completing the following procedure.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
WARNING: Be prepared to collect escaping engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

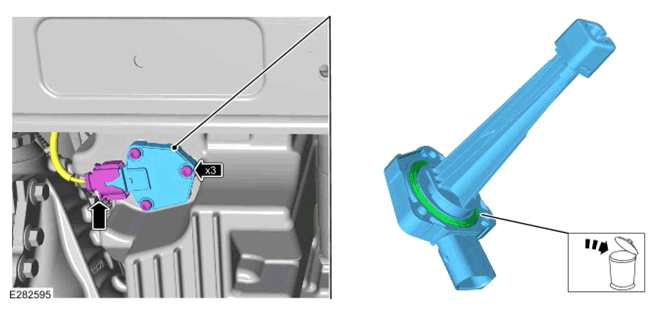

- Disconnect the electrical connector from the engine oil level sensor.
- Remove the 3 bolts.
- Remove the engine oil level sensor.
- Remove and discard the O-ring seal from the engine oil level sensor.
