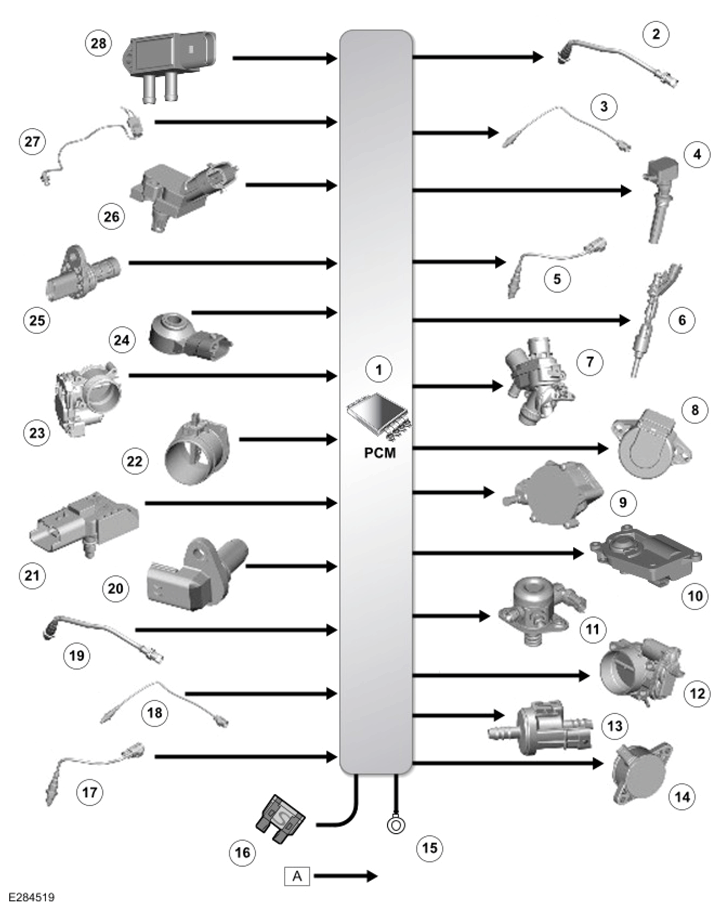

Control Diagram - 2 Of 2
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | Heater - HO2S - Pre catalyst (quantity 2) |
| 3 | Heater - HO2S - Mid catalyst (quantity 2) |
| 4 | Ignition coil (quantity 8) |
| 5 | Heater - HO2S - Post catalyst (quantity 2) |
| 6 | Fuel injector (quantity 8) |
| 7 | Electric thermostat |
| 8 | Supercharger bypass valve actuator |
| 9 | Variable flow oil pump |
| 10 | Active exhaust actuator (quantity 2) |
| 11 | HP fuel pump (quantity 2) |
| 12 | Electric throttle |
| 13 | Purge valve |
| 14 | VCT actuator (quantity 4) |
| 15 | Ground |
| 16 | Power supply |
| 17 | HO2S - Post catalyst (quantity 2) |
| 18 | HO2S - Mid catalyst (quantity 2) |
| 19 | HO2S - Pre catalyst (quantity 2) |
| 20 | CMP (quantity 4) |
| 21 | MAP sensor |
| 22 | MAFT sensor (quantity 2) |
| 23 | Electric throttle - TPS |
| 24 | Knock sensor (quantity 4) |
