Rear Knock Sensor (G2344550): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  3. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD

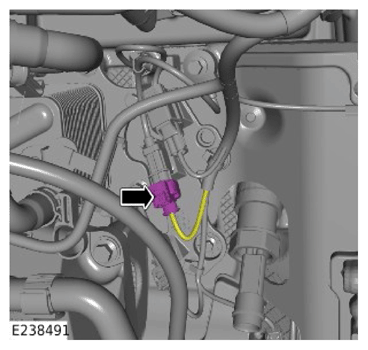

  4. G14066916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

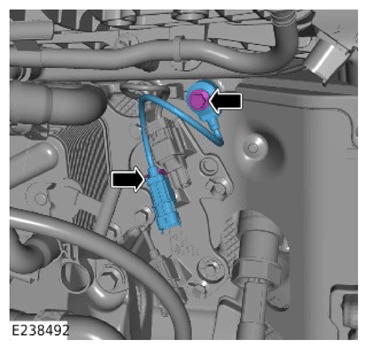

  5. G14066917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the wiring harness from the clip.
    • Remove the bolt.
    • Remove the knock sensor.
