Pre Catalyst Heated Oxygen Sensor (G2344544): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL
Remove the right air filter outlet pipe.
Refer to: AIR FILTER OUTLET PIPE
Remove the right air filter housing.
Refer to: AIR FILTER HOUSING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

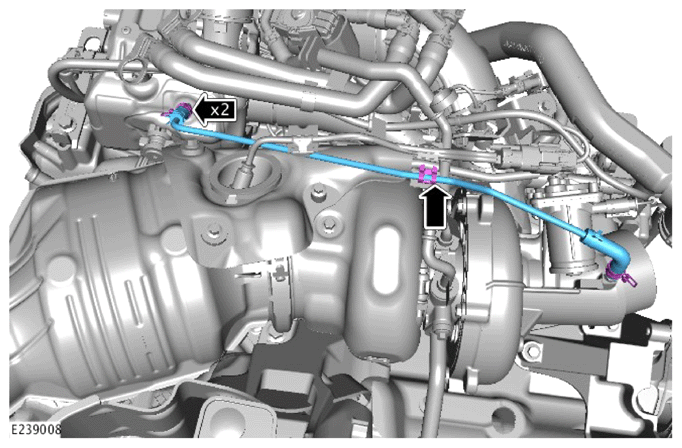

- Release the 2 clips.
- Release the pipe from the clip.
- Remove the pipe assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

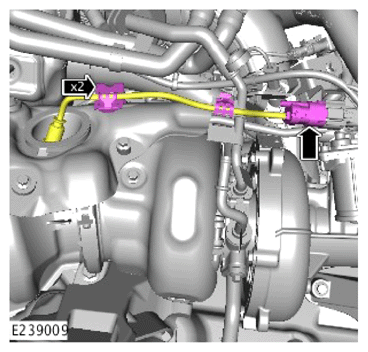

- Disconnect the electrical connector.
- Release the wiring harness from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

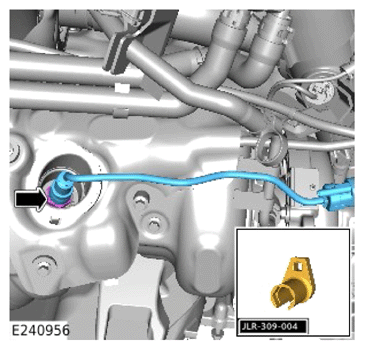

Use the special tool to remove the pre catalyst heated oxygen sensor.

Special Tool(s): JLR-303-1666
