Post Catalyst Heated Oxygen Sensor (G2344543): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

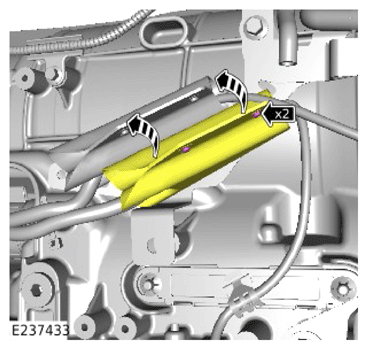

Release and reposition the noise, vibration and harshness material as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

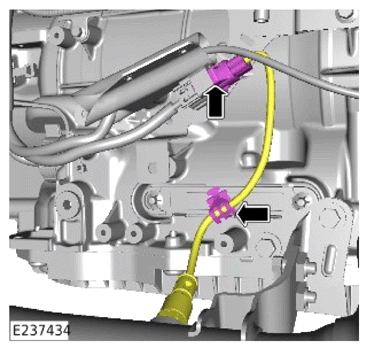

- Disconnect the electrical connector.
- Release the wiring harness from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

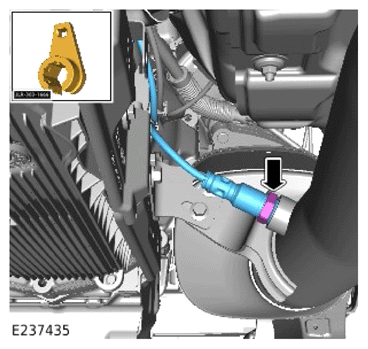

Use the special tool to remove the post catalyst heated oxygen sensor.

Special Tool(s): JLR-303-1666
