Mass Air Flow Sensor (G2300699): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • Left side shown, right side similar.

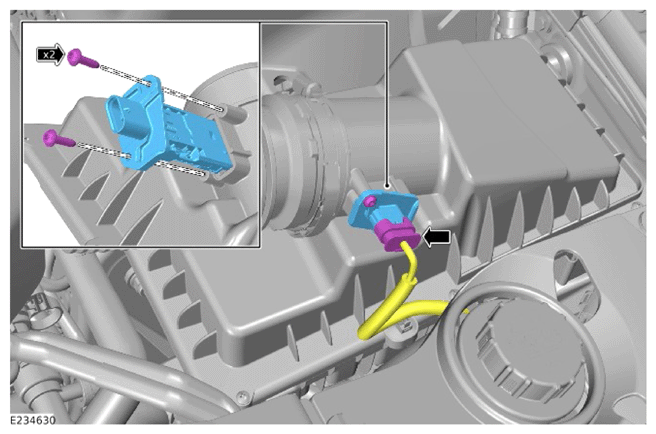

  1. G14066922Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the Mass Air Flow (MAF) sensor electrical connector.
    • Remove the 2 bolts.
    • Remove the MAF  sensor.
