Lower Hose Coolant Temperature Sensor (G2325407): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
-
WARNING: Be prepared to collect escaping fluids.

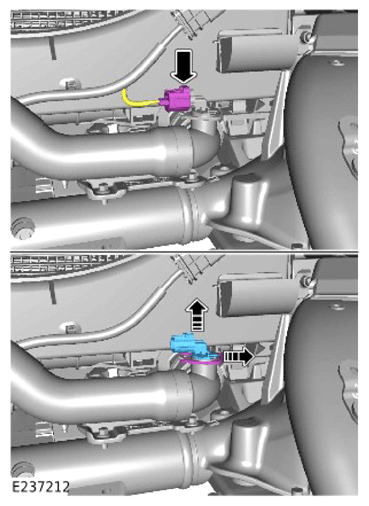

- Disconnect the electrical connector.
- Remove the lower hose coolant temperature sensor clip.
- Remove the lower hose coolant temperature sensor.
