Front Knock Sensor (G2344547): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  2. Remove the Belt Integrated Starter Generator (BISG).

    Refer to: BELT INTEGRATED STARTER GENERATOR

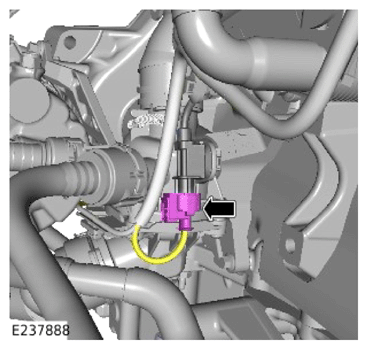

  3. G14066878Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

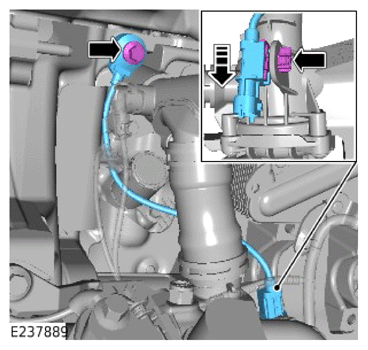

  4. G14066879Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the knock sensor.
