Exhaust Back Pressure Sensor (G2823218): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

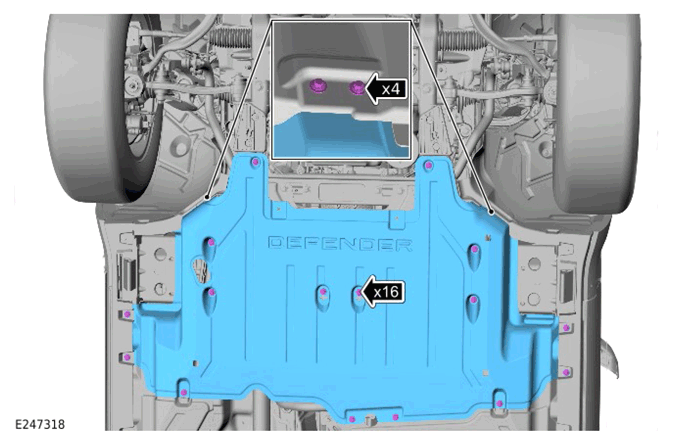

- Remove the 20 bolts.
- Remove the transmission undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

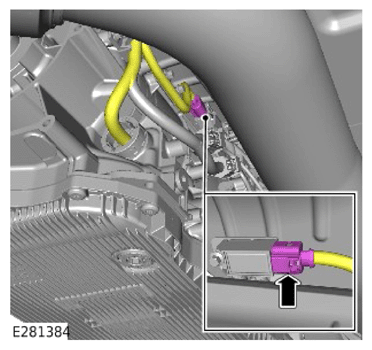

- Disconnect the electrical connector.
- Release the wiring harness from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

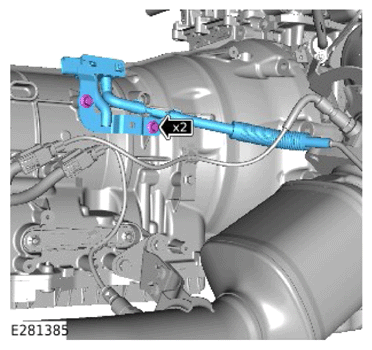

- Release the hose from the exhaust.
- Remove the 2 nuts.
- Remove the exhaust back pressure sensor with bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

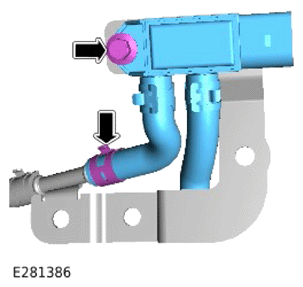

- Remove the bolt.
- Release the hose clamp.
- Disconnect the hose.
- Remove the exhaust back pressure sensor from the bracket.
