Cylinder Block Temperature Sensor (G2300675): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT
CAUTION: Discard the cylinder block temperature sensor.

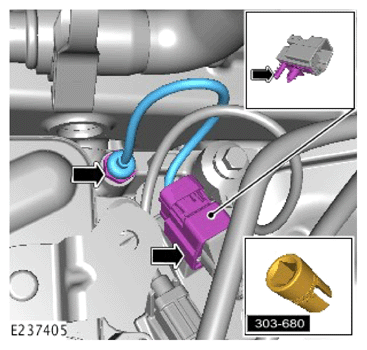

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the electrical connector from the bracket.
- Disconnect the electrical connector.
- Use the special tool to remove the cylinder block temperature sensor.
  Special Tool(s): 303-680
