Crankshaft Position Sensor (G2344545): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
- Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD

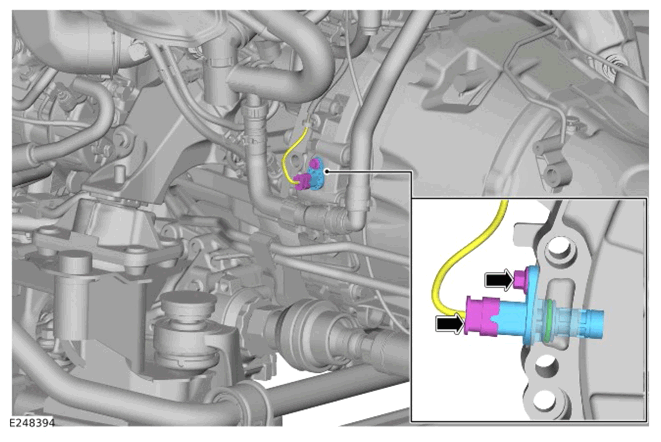

- Disconnect the electrical connector.
- Remove the bolt.
- Remove the crankshaft position sensor.
