Charge Air Pressure Sensor (G2866019): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the air filter outlet pipe.
Refer to: AIR FILTER OUTLET PIPE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

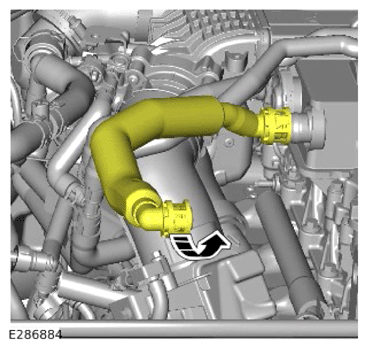

Reposition the engine vent separator pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

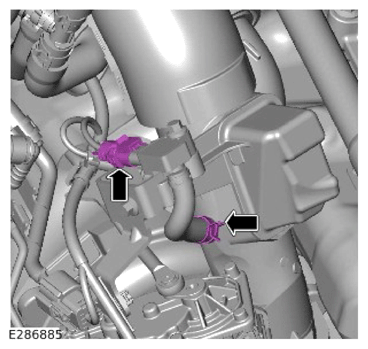

- Release the hose clamp.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

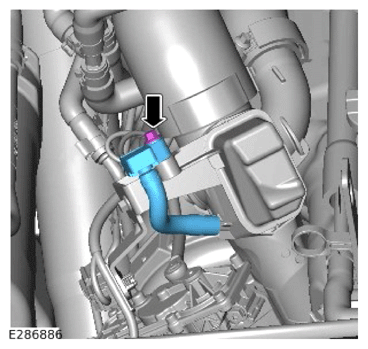

- Remove the bolt.
- Remove the charge air pressure sensor.
