Viewing Operation Of Ho2S
WARNING: This page is about a different variant/trim than selected.

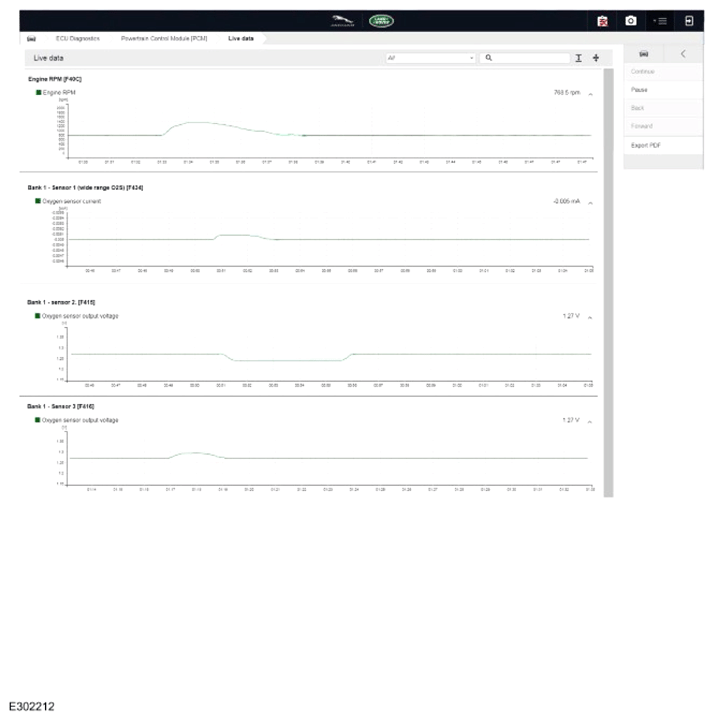

Using live data view the output signals for all HO2S and confirm correct operation. As each HO2S becomes active the output signal can be seen reacting to changes in engine speed/load.
NOTE:
The HO2S
will become functional at different times, depending on their location within the exhaust system and the previous drive cycles. See 'Drive Cycle' section below for further information.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine speed |
| 2 | Oxygen Sensor Current Bank 1 sensor 1 |
| 3 | Oxygen Sensor Output Voltage Bank 1 - sensor 2 |
| 4 | Oxygen Sensor Output Voltage Bank 1 - sensor 3 |
