Variable Camshaft Timing Solenoid

WARNING: This page is about a different variant/trim than selected.

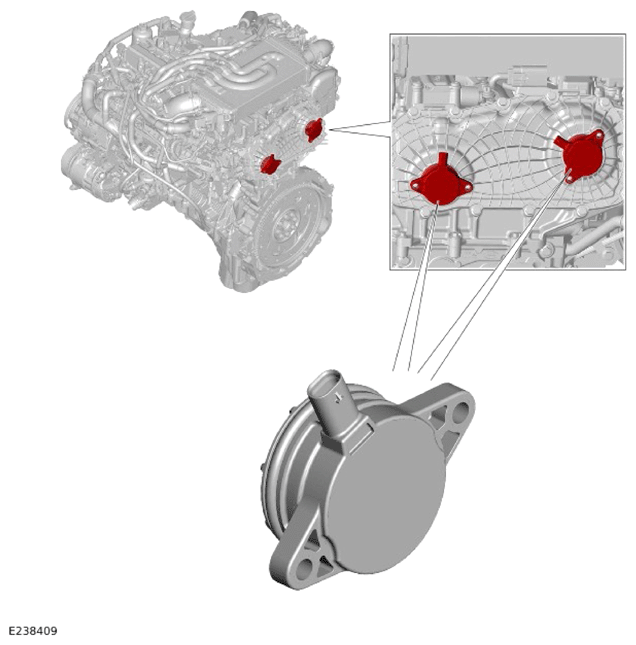

G14066789Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Each VCT  solenoid is located on the timing chain cover and is secured with 2 screws. The VCT  allows for the standard camshaft lobe profile to be advanced or retarded for optimum combustion.

The VCT  solenoids are controlled by a PWM  output from the PCM  . The PCM  uses signals from the CMP  s and determines the position of the VCT  actuators. The VCT  actuators have a direct interface with the intake and the exhaust camshaft.

Each VCT  solenoid incorporates a spindle that acts on the spool valve in the VCT  actuator to advance and retard the exhaust camshaft timing.
