Turbocharger WASTEGATE Actuator
WARNING: This page is about a different variant/trim than selected.

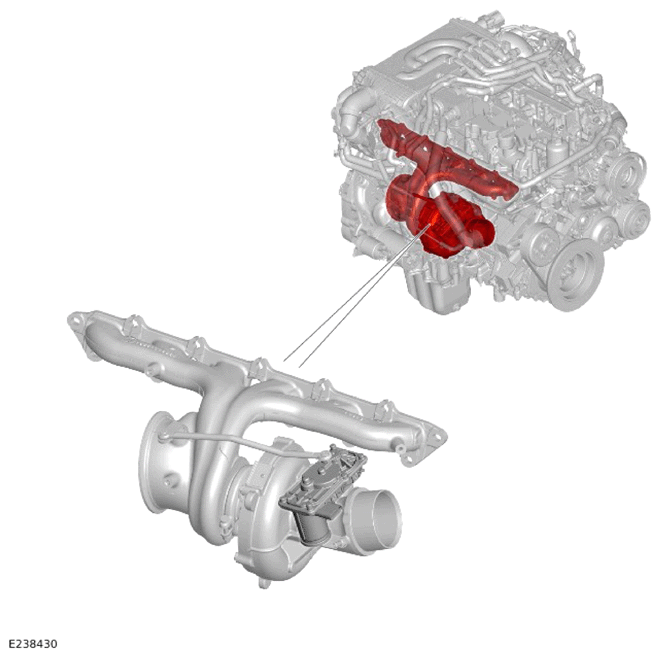

The turbocharger wastegate actuator is attached to the turbocharger compressor housing.
The turbocharger wastegate actuator operates the wastegate flap and allows the exhaust gas to bypass the turbine wheel. The wastegate actuator contains a position sensor. The position sensor and the actuator motor are connected to the PCM . The turbocharger wastegate actuator is controlled by PWM signal from the PCM .
If a fault occurs with the turbocharger wastegate actuator, a DTC is registered in the PCM .
For additional information, Refer to: TURBOCHARGER
