Restraints Control Module

WARNING: This page is about a different variant/trim than selected.
G15306427Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

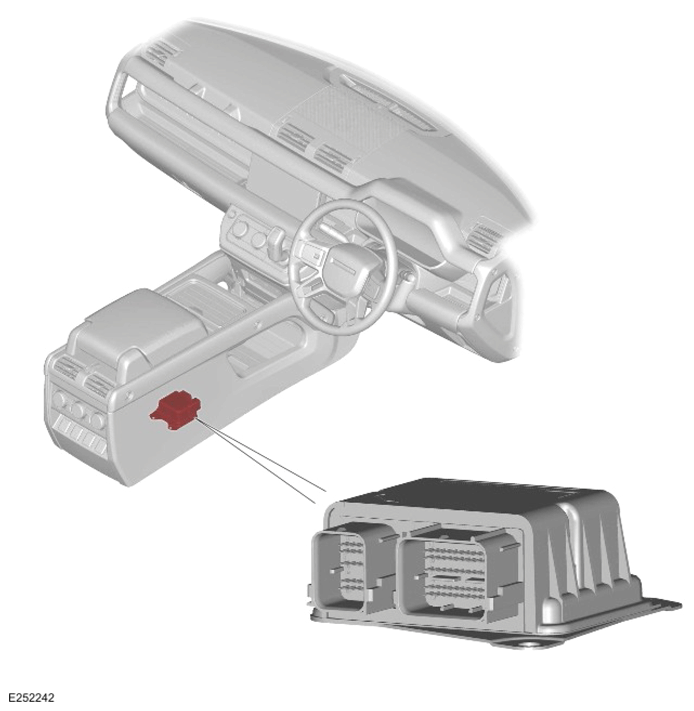

The RCM  is installed on the top of the transmission tunnel, below the floor console.

For additional information, Refer to: SEATBELT SYSTEM /AIRBAG SUPPLEMENTARY RESTRAINT SYSTEM - [+] 2 SEAT CONFIGURATION /AIRBAG SUPPLEMENTARY RESTRAINT SYSTEM - [+] 5 SEAT CONFIGURATION/[+] 7 SEAT CONFIGURATION .
