Oil Pump Control Solenoid

WARNING: This page is about a different variant/trim than selected.

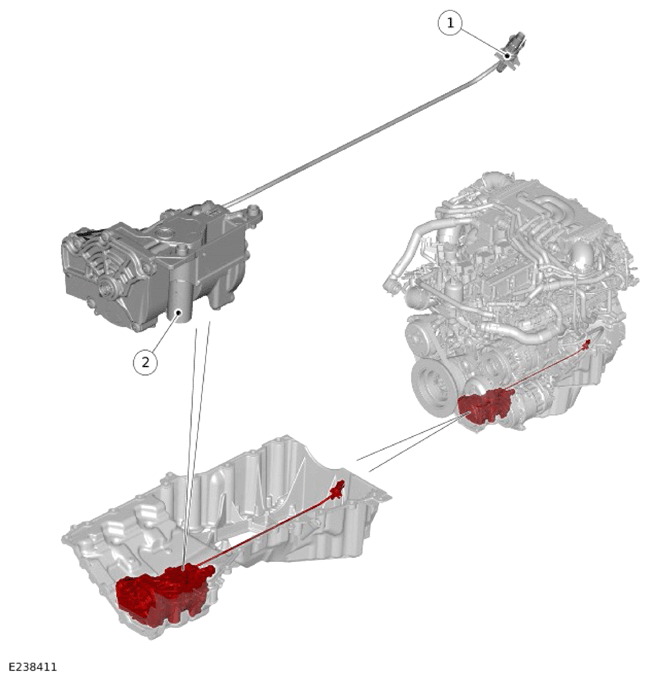

G14066791Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Electrical connector
2 Oil pump control solenoid

The oil pump control solenoid is located at the front of the oil pump and connected to the PCM  through hardwired connection. The oil pump control solenoid receives a 12V power supply from the Engine Junction Box (EJB). The PCM  controls the operation of the oil pump control solenoid valve by controlling the ground path for the solenoid. When the PCM  energizes the oil pump control solenoid at low engine speed and loads, the oil pump switches to the low pressure mode. The low pressure mode reduces pumping losses within the oil pump and optimizes the fuel economy.
