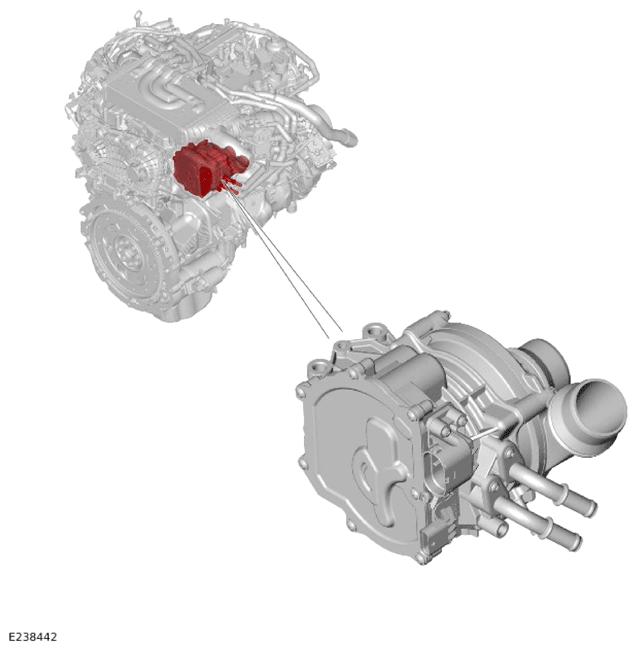

Electric Supercharger
WARNING: This page is about a different variant/trim than selected.
The turbocharger increases the temperature and pressure of the intake air. The electric supercharger also increases the pressure of the intake air from the turbocharger, which increases the power output of the engine.
The Mild Hybrid Electric Vehicle (MHEV) battery junction box supplies the 48V power to the electric supercharger. The PCM controls the operation of the electric supercharger through HS CAN power mode zero systems bus.
For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING
