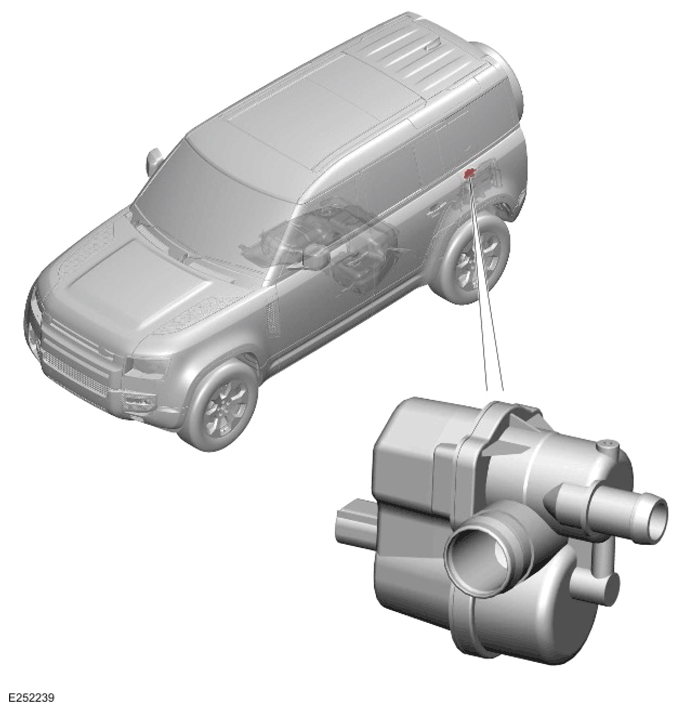

Diagnostic Module Tank Leakage Pump - North AMERICAN Specification Vehicles Only
The DMTL pump periodically checks the evaporative emission system and the fuel tank for leaks when the ignition is switched OFF.
The DMTL pump incorporates an electric air pump, a positive temperature coefficient heater element, a normally open changeover valve and a reference orifice. The DMTL pump is only operated when the ignition is switched off and is controlled by the PCM . The PCM also monitors operation of the air pump and the changeover valve for faults.
A connection with the PCM relay in the EJB provides power supply to the DMTL pump. The PCM applies separate ground connections to operate the heater element, the air pump and the changeover valve individually, as required.
For additional information, refer to: FUEL TANK AND LINES
