Cylinder Block Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

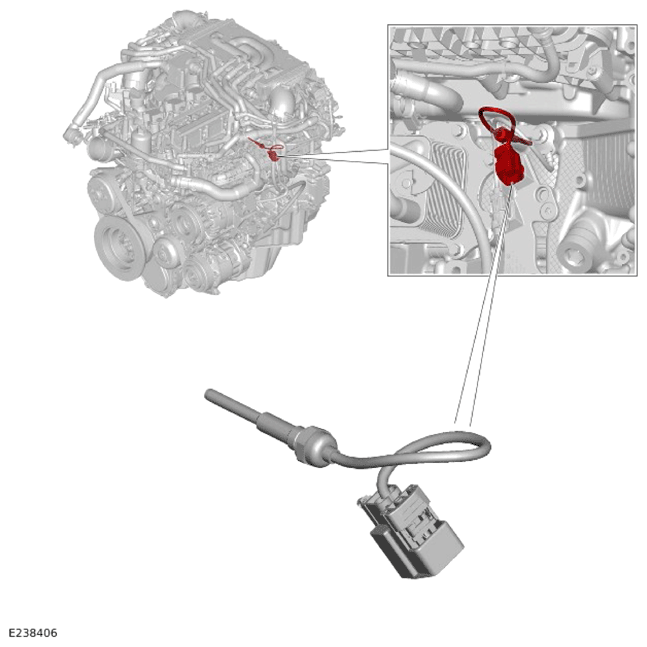

The cylinder block temperature sensor is located in a threaded hole on the left side of the cylinder block.
The sensor is a NTC resistor with a 2-pin connection.
The 2-pin connector provides the following connections:
- A 5V reference voltage from the PCM .
- A cylinder block temperature signal to the PCM .
