Continuous Variable Valve Lift Assembly Oil Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

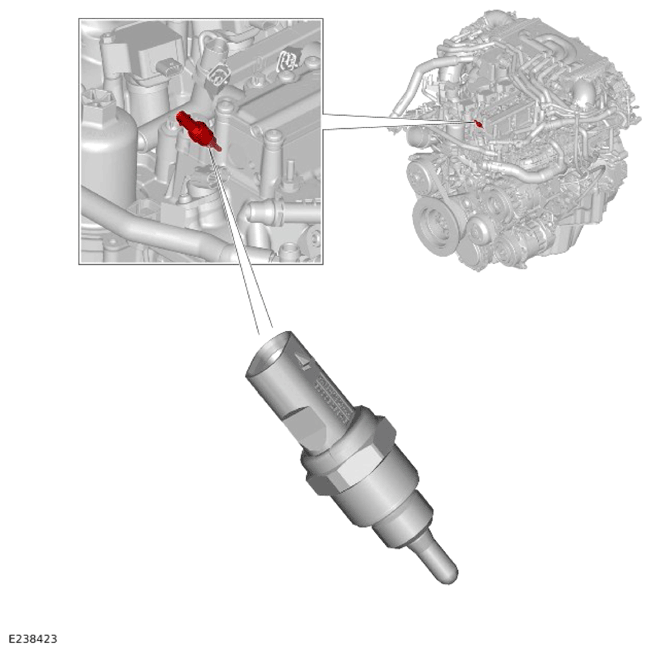

The Continuous Variable Valve Lift (CVVL) assembly oil temperature sensor is mounted in a threaded hole in the front CVVL assembly. The CVVL assembly oil temperature sensor is a NTC type sensor. The NTC sensor allows the PCM to determine the oil temperature.
The oil temperature sensor has a 2-pin connector.
The 2-pin connector provides the following connections:
- A temperature signal input to the PCM .
- A ground connection.
The oil temperature sensor data is used by the PCM to determine oil viscosity and allows accurate CVVL solenoid switching time compensation.
