Compressor RECIRCULATION Valve

WARNING: This page is about a different variant/trim than selected.
G14066820Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

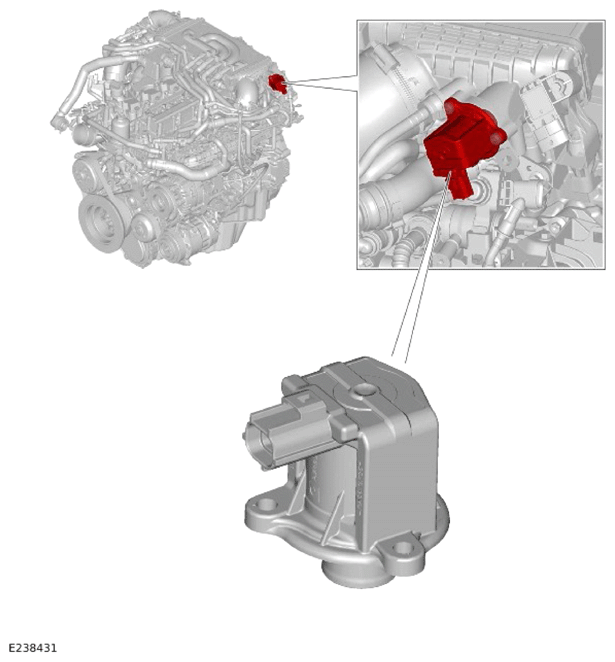

The Compressor Recirculation Valve (CRV) is installed on the left side of the charge air cooler with 3 screws.

During a quick throttle closing event, the engine needs less charge air. The CRV allows the charge air to flow to the intake air pipe in case of creating HP  inside the charge air cooler. The PCM  controls the CRV through PWM  signal.

For additional information, Refer to: TURBOCHARGER
