Charge Air Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

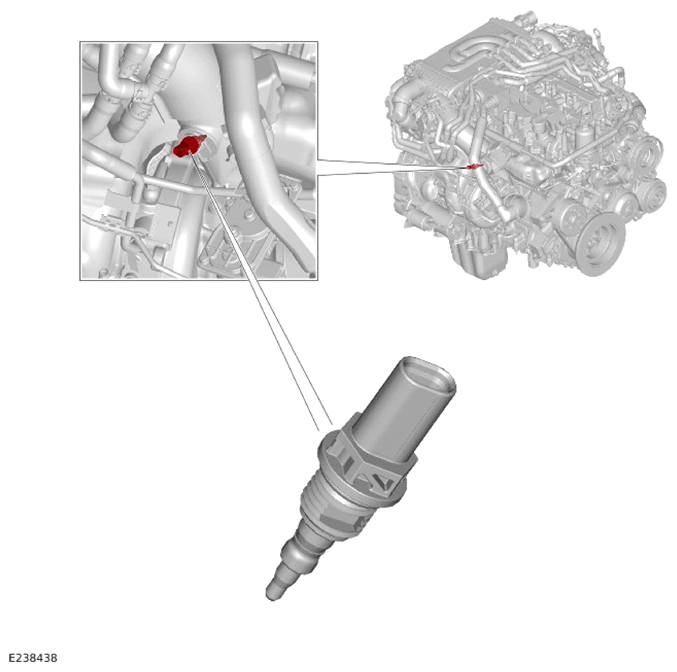

G14066813Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The charge air temperature sensor is located in the charge air cooler inlet pipe.

The charge air temperature sensor receives a 5V reference voltage from the PCM  . The charge air temperature sensor returns a signal relative to the temperature of the charge air output from the turbocharger.
