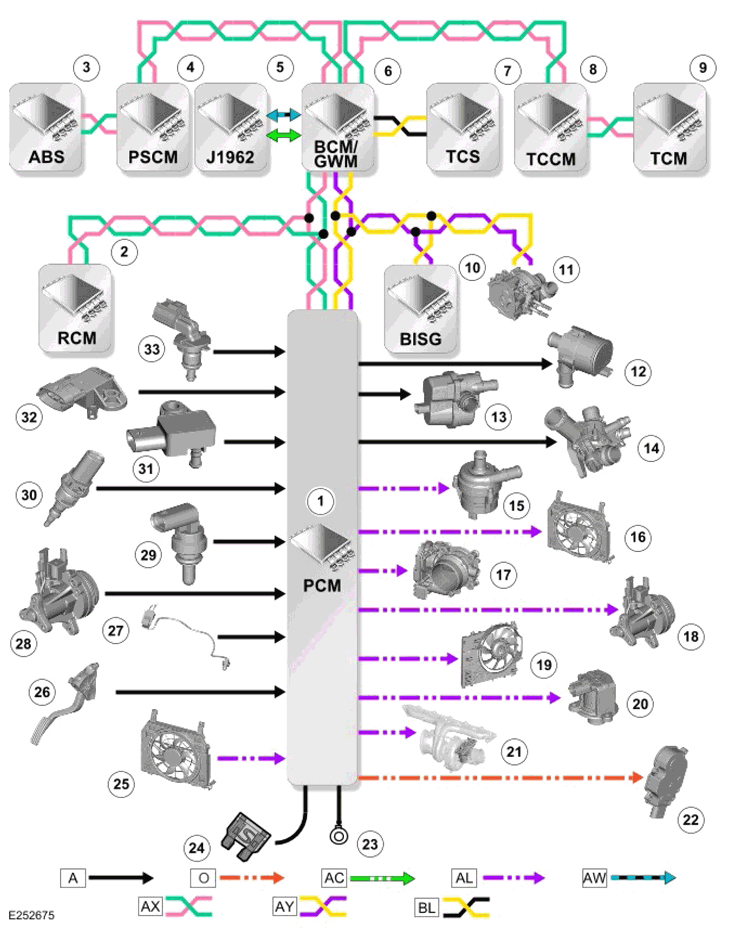

Control Diagram - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: O = LIN BUS: AC = DIAGNOSTIC: AL = PWM : AW = BROADR-REACH® ETHERNET: AX = FLEXRAY, AY = HS CAN POWER MODE ZERO (PMZ) SYSTEM BUS: BL = HS CAN UNDERBODY (UN) SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | RCM |
| 3 | Integrated Power Brake control module |
| 4 | Power Steering Control Module (PSCM) |
| 5 | Diagnostic Connector (J1962) |
| 6 | BCM /GWM |
| 7 | TCS |
| 8 | TCCM |
| 9 | TCM |
| 10 | BISG |
| 11 | Electric supercharger |
| 12 | Auxiliary coolant pump |
| 13 | DMTL pump (North American Specification (NAS) market vehicles only) |
| 14 | Electric thermostat - Heater element |
| 15 | Charge air coolant pump |
| 16 | Electric cooling fan |
| 17 | Electric supercharger bypass valve |
| 18 | Variable coolant pump |
| 19 | Viscous cooling fan |
| 20 | Compressor Recirculation Valve (CRV) |
| 21 | Turbocharger wastegate actuator |
| 22 | Active grille air shutter motor (if equipped) |
| 23 | Ground |
| 24 | Power supply |
| 25 | Electric cooling fan |
| 26 | APP sensor |
| 27 | Ambient Air Temperature (AAT) sensor |
| 28 | Variable coolant pump - Shroud position sensor |
| 29 | Engine Coolant Temperature (ECT) sensor - Cylinder block outlet |
| 30 | Charge air temperature sensor |
| 31 | Charge air pressure sensor |
| 32 | Charge air pressure and temperature sensor |
| 33 | Engine Coolant Temperature (ECT) sensor - Radiator outlet |
