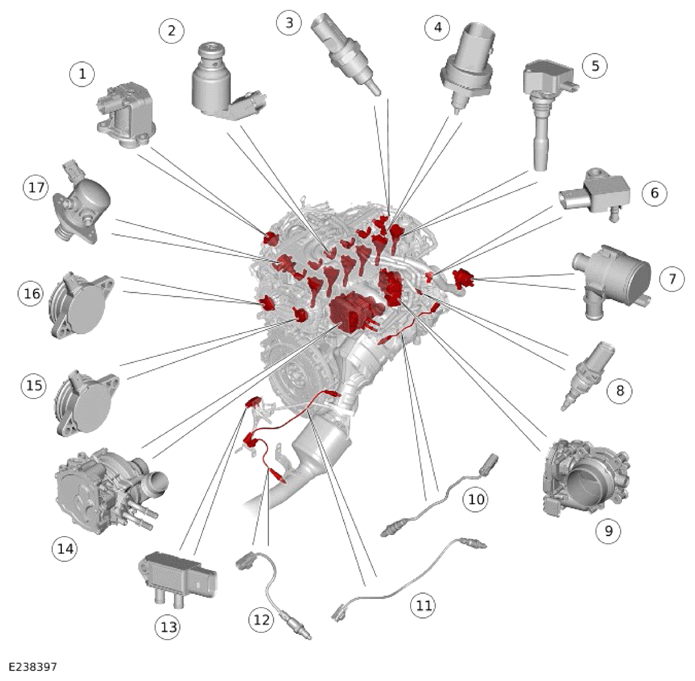

Component Location - 3 Of 5
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Compressor Recirculation Valve (CRV) |
| 2 | Continuous Variable Valve Lift (CVVL) solenoid (quantity 6) |
| 3 | CVVL assembly oil temperature sensor |
| 4 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 5 | Ignition coil (quantity 6) |
| 6 | Charge air pressure sensor |
| 7 | Auxiliary coolant pump |
| 8 | Charge air temperature sensor |
| 9 | Electric supercharger bypass valve |
| 10 | Heated Oxygen Sensor (HO2S) - Pre catalyst |
| 11 | HO2S - Mid catalyst |
| 12 | HO2S - Post catalyst |
| 13 | Exhaust back pressure sensor (if equipped) |
| 14 | Electric supercharger |
| 15 | Variable Camshaft Timing (VCT) solenoid - Exhaust |
| 16 | VCT solenoid - Intake |
| 17 | High Pressure (HP) fuel pump |
