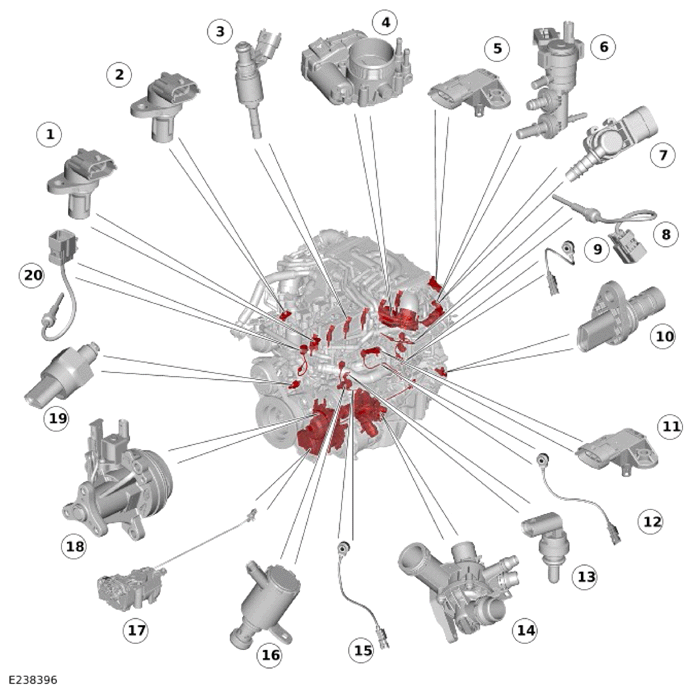

Component Location - 2 Of 5
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Camshaft Position Sensor (CMP) - Intake |
| 2 | CMP - Exhaust |
| 3 | Fuel injector (quantity 6) |
| 4 | Electric throttle |
| 5 | Charge air pressure and temperature sensor |
| 6 | Purge valve |
| 7 | Purge valve pressure sensor |
| 8 | Cylinder block temperature sensor |
| 9 | Knock sensor - Rear |
| 10 | Crankshaft Position Sensor (CKP) |
| 11 | Manifold Absolute Pressure and Temperature sensor (MAPT) |
| 12 | Knock sensor - Center |
| 13 | Engine Coolant Temperature (ECT) sensor - Cylinder block outlet |
| 14 | Electric thermostat - Heater element |
| 15 | Knock sensor - Front |
| 16 | Piston cooling oil jet solenoid |
| 17 | Oil pump control solenoid |
